Recessed luminaire intended for installation in plasterboard ceilings, made of sheet steel, coated in white or black, with built-in linear PMMA lenses ensuring a proper light beam angle of 80° and recessed polycarbonate reflectors to minimize glare effect (UGR). Light source: LED self-cooling solid linear modules of high efficiency C. LED light source classified as MacAdam3, CRI>80, Photobiological risk group RG0. The luminaire comply with all standards required for obtaining the CE mark. 6-year warranty.
| SUPPLY | 230 V |
| IP CODE | IP40 |
| ELECTRICAL PROTECTION CLASS | I |
| SDCM | <3 |
| EFFICIENCY | |
| COLOUR RENDERING INDEX | CRI >80 |
| LED LIFESPAN | L90B10 60000h 35°C |
| POWER FACTOR | 0.95 |
| UGR | <16 |
| OPTICS | LENS 80° |
| OPTICS MATERIAL | PMMA |
| MATERIAL OF BODY | STEEL |
| MOUNTING VERSION | RECESSED (USL) |

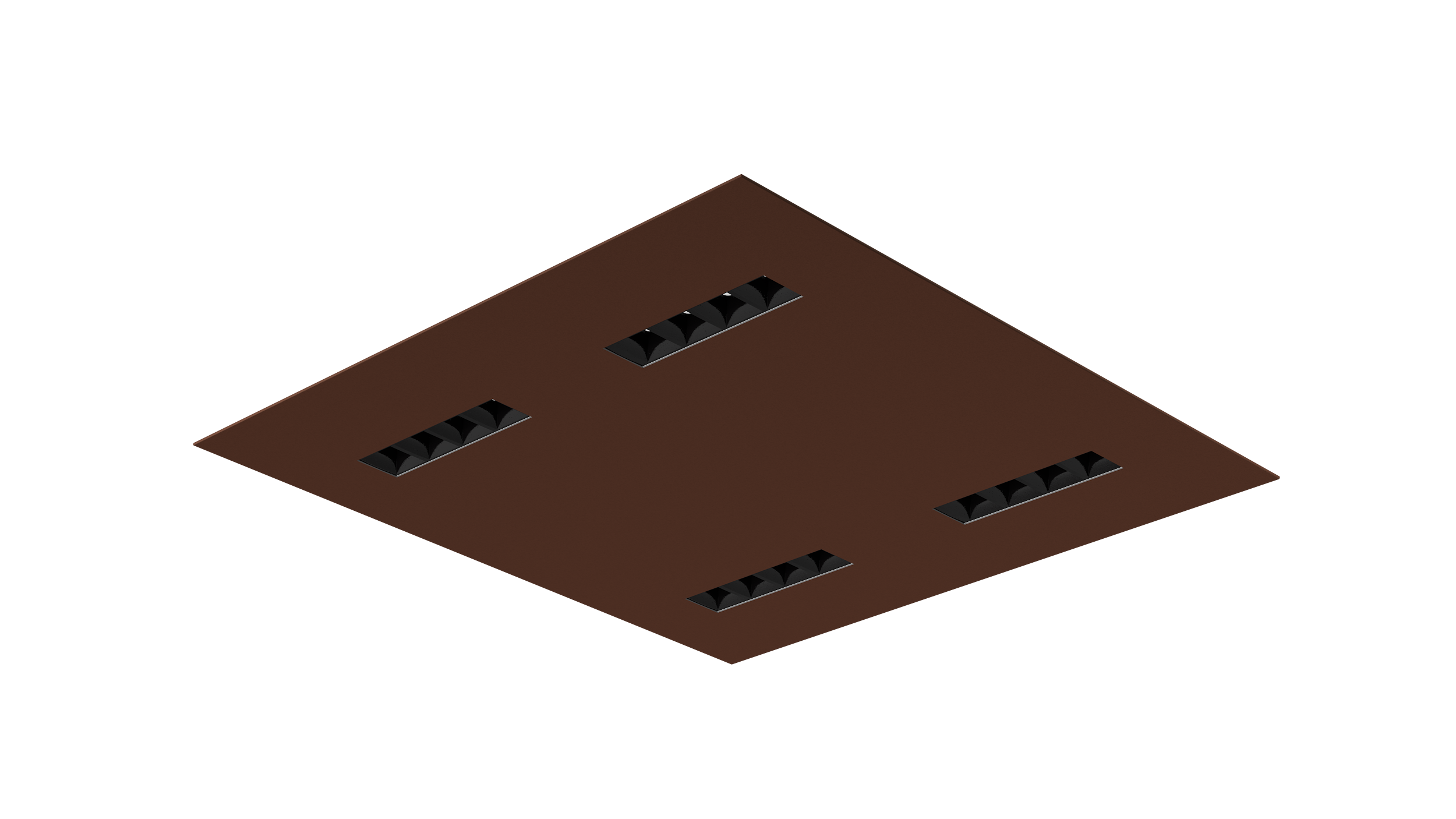

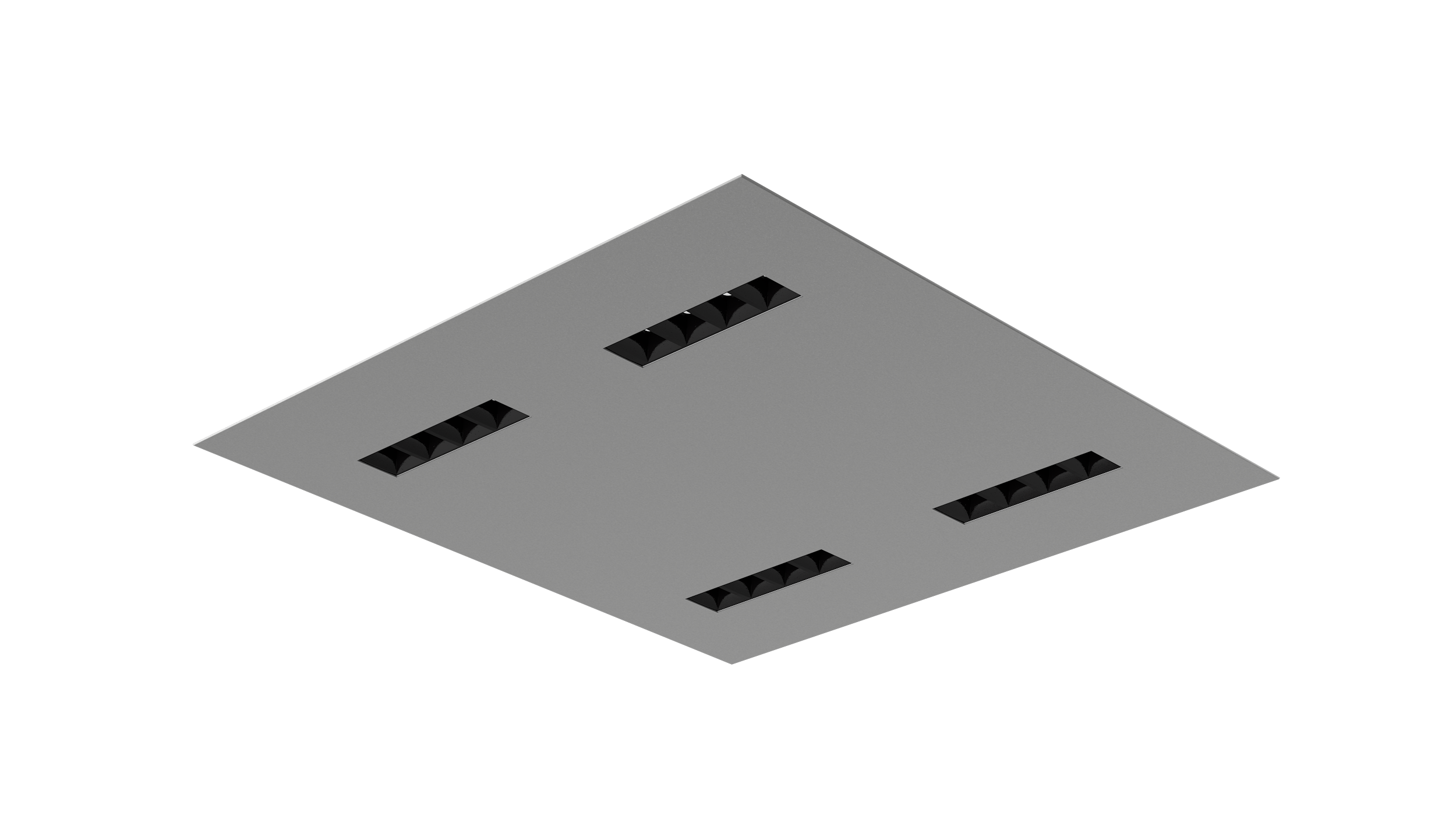

USL-A 4xB GKf
| TYPE | DIMENSIONS | LUMEN | CODE |
| USL-A 4XB GK 600×600 LED 20W 830 | 600 x 600 x 35mm | 2742 lm | 203-131WL-B-600×600/20GK |
| USL-A 4XB GK 600×600 LED 20W 840 | 600 x 600 x 35mm | 2913 lm | 203-141WL-B-600×600/20GK |
USL-B 4xB GK
TYPE
DIMENSIONS
LUMEN
CODE
| TYPE | DIMENSIONS | LUMEN | CODE |
| USL-B 4XB GK 1195×195 LED 20W 830 | 1195 x 195 x 35mm | 2742 lm | 203-131WL-B-1195×195/20GK |
| USL-B 4XB GK 1195×195 LED 20W 840 | 1195 x 195 x 35mm | 2913 lm | 203-141WL-B-1195×195/20GK |

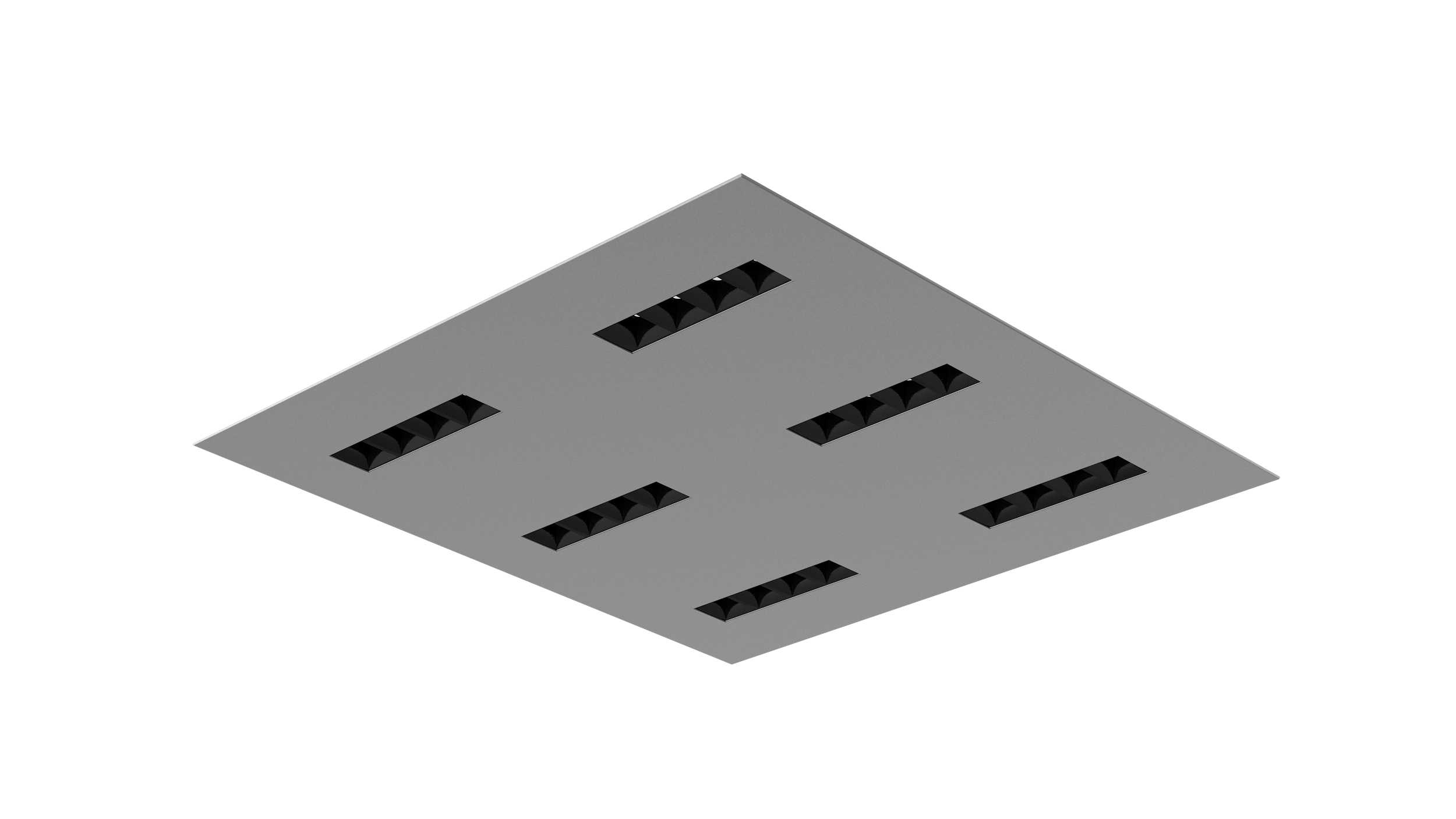

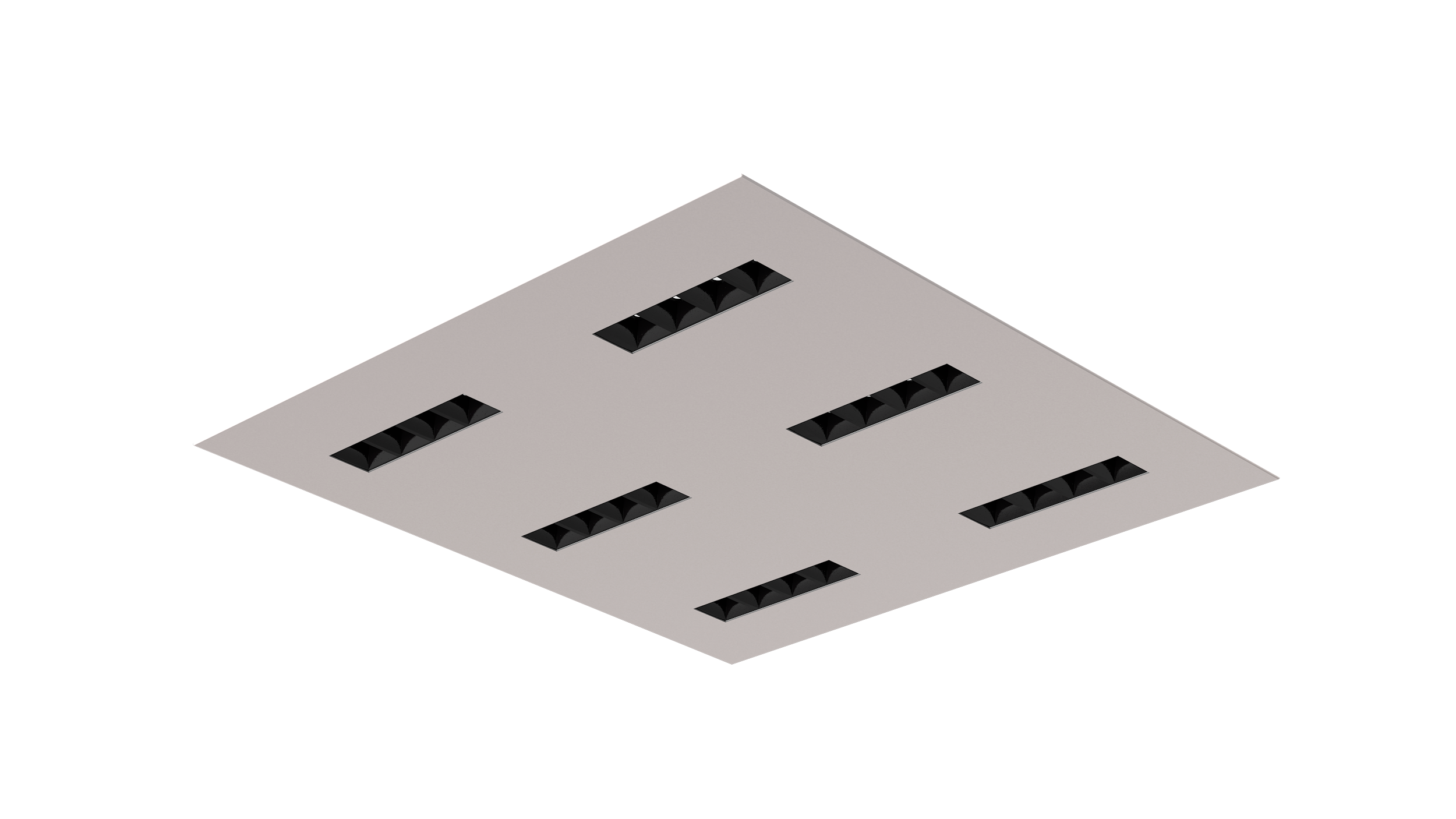

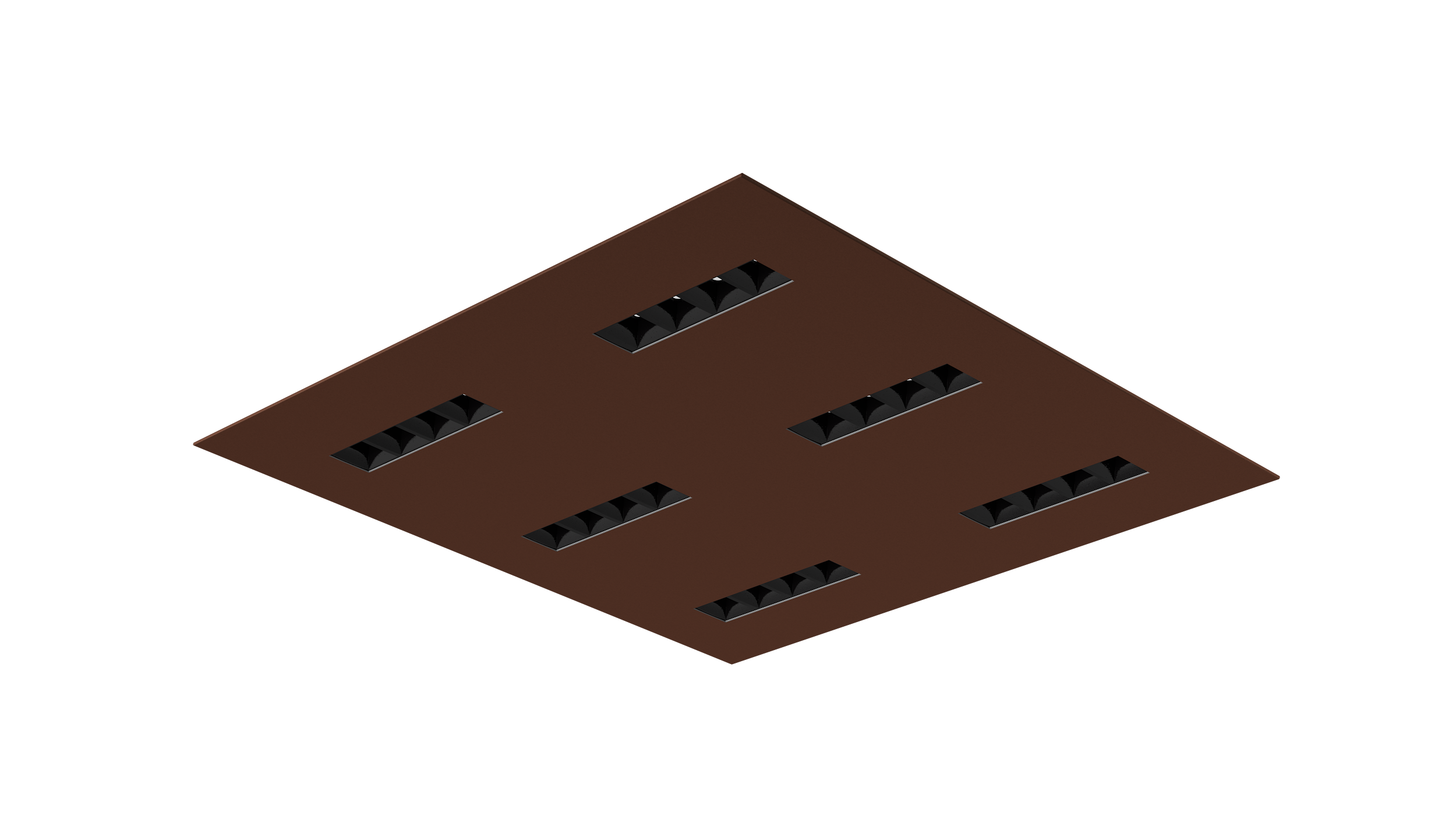

USL-A 6xB GK
TYPE
DIMENSIONS
LUMEN
CODE
| TYPE | DIMENSIONS | LUMEN | CODE |
| USL-A 6XB 600×600 LED 29W 830 | 600 x 600 x 35mm | 4113 lm | 203-131WL-B-600×600/29GK |
| USL-A 6XB 600×600 LED 29W 840 | 600 x 600 x 35mm | 4370 lm | 203-141WL-B-600×600/29GK |

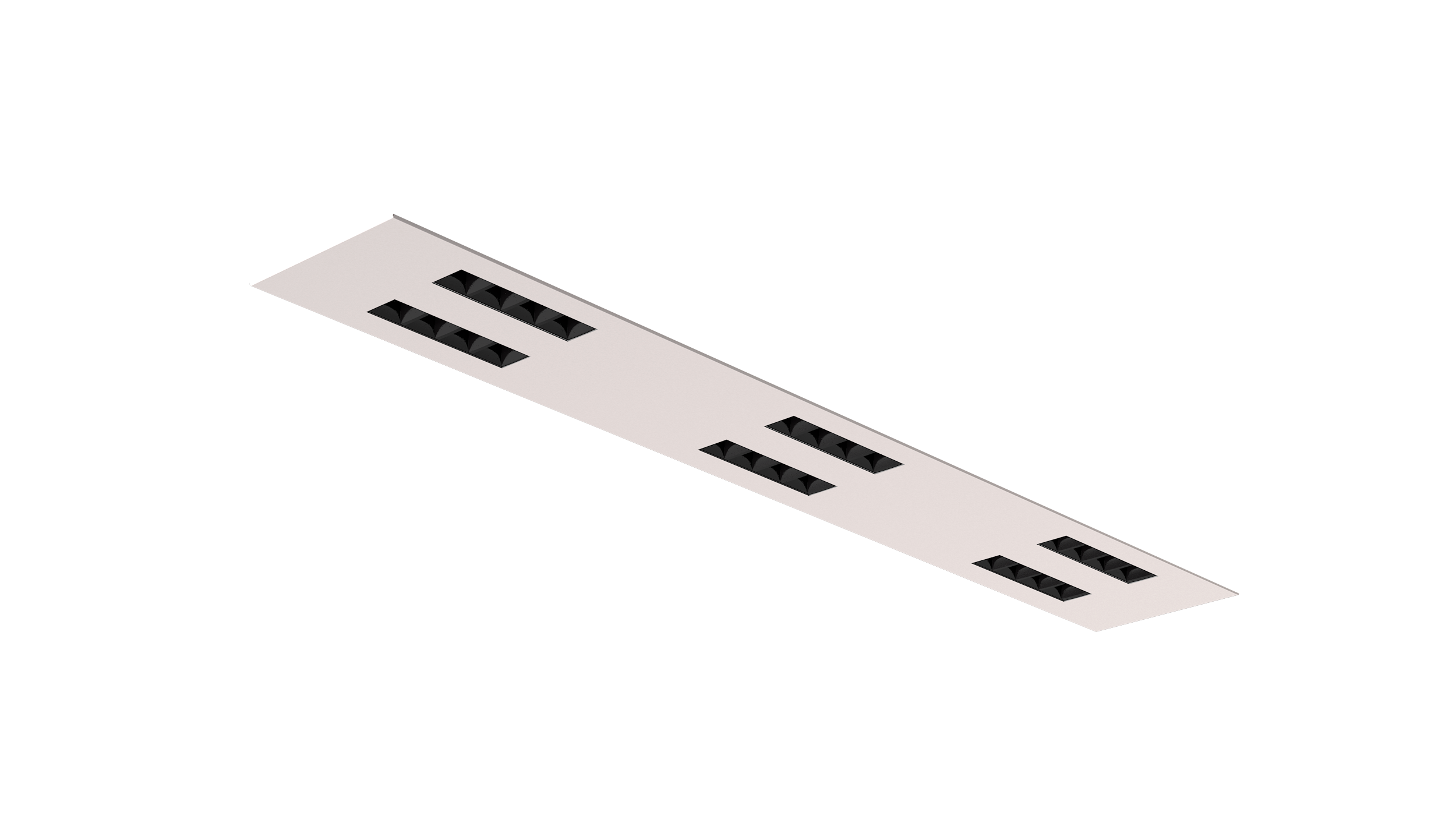

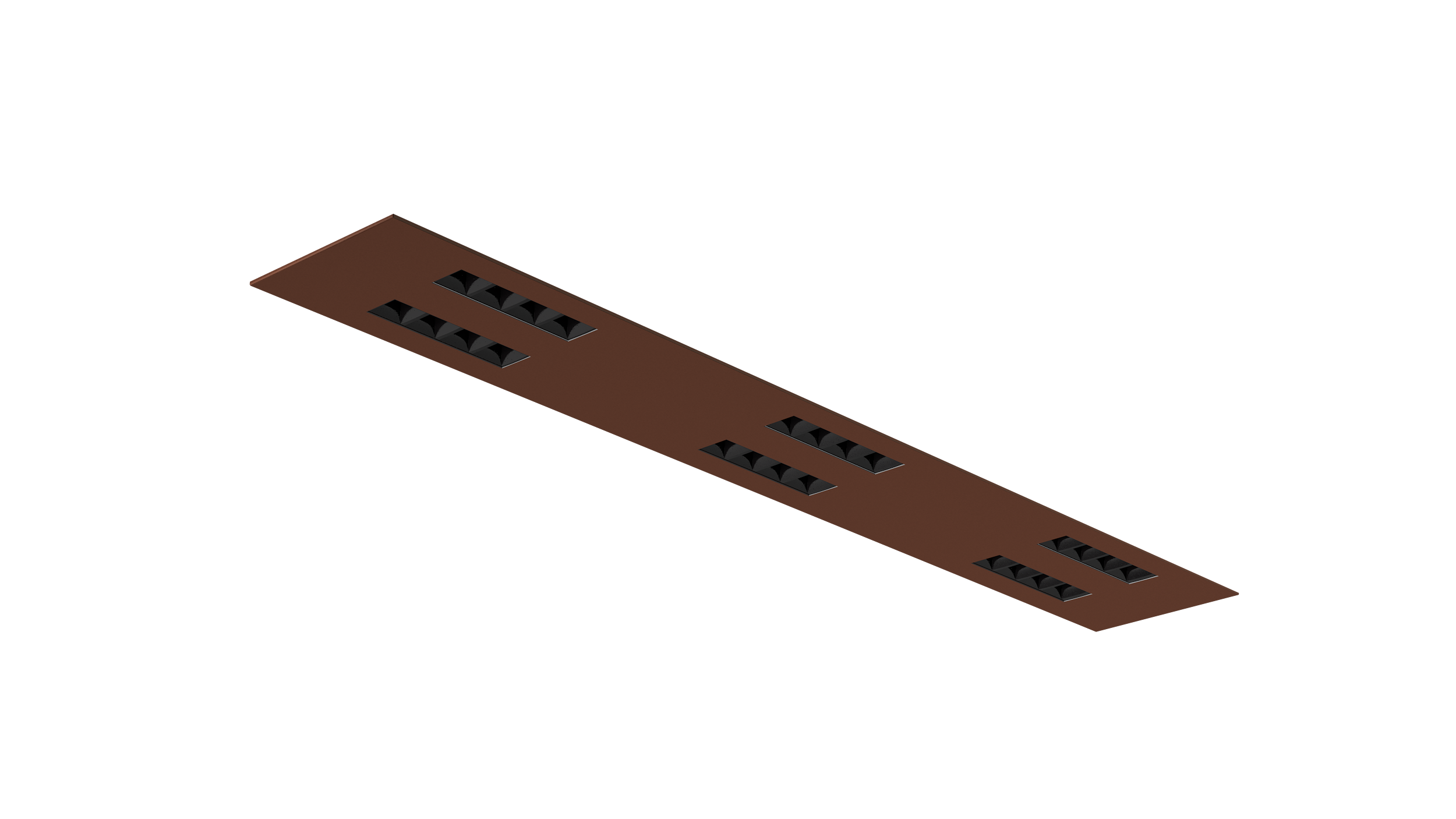

USL-B 6xB GK
TYPE
DIMENSIONS
LUMEN
CODE
| TYPE | DIMENSIONS | LUMEN | CODE |
| USL-B 6XB GK 1195×195 LED 29W 830 | 1195 x 195 x 35mm | 4113 lm | 203-131WL-B-1195×195/29GK |
| USL-B 6XB GK 1195×195 LED 29W 840 | 1195 x 195 x 35mm | 4370 lm | 203-141WL-B-1195×195/29GK |

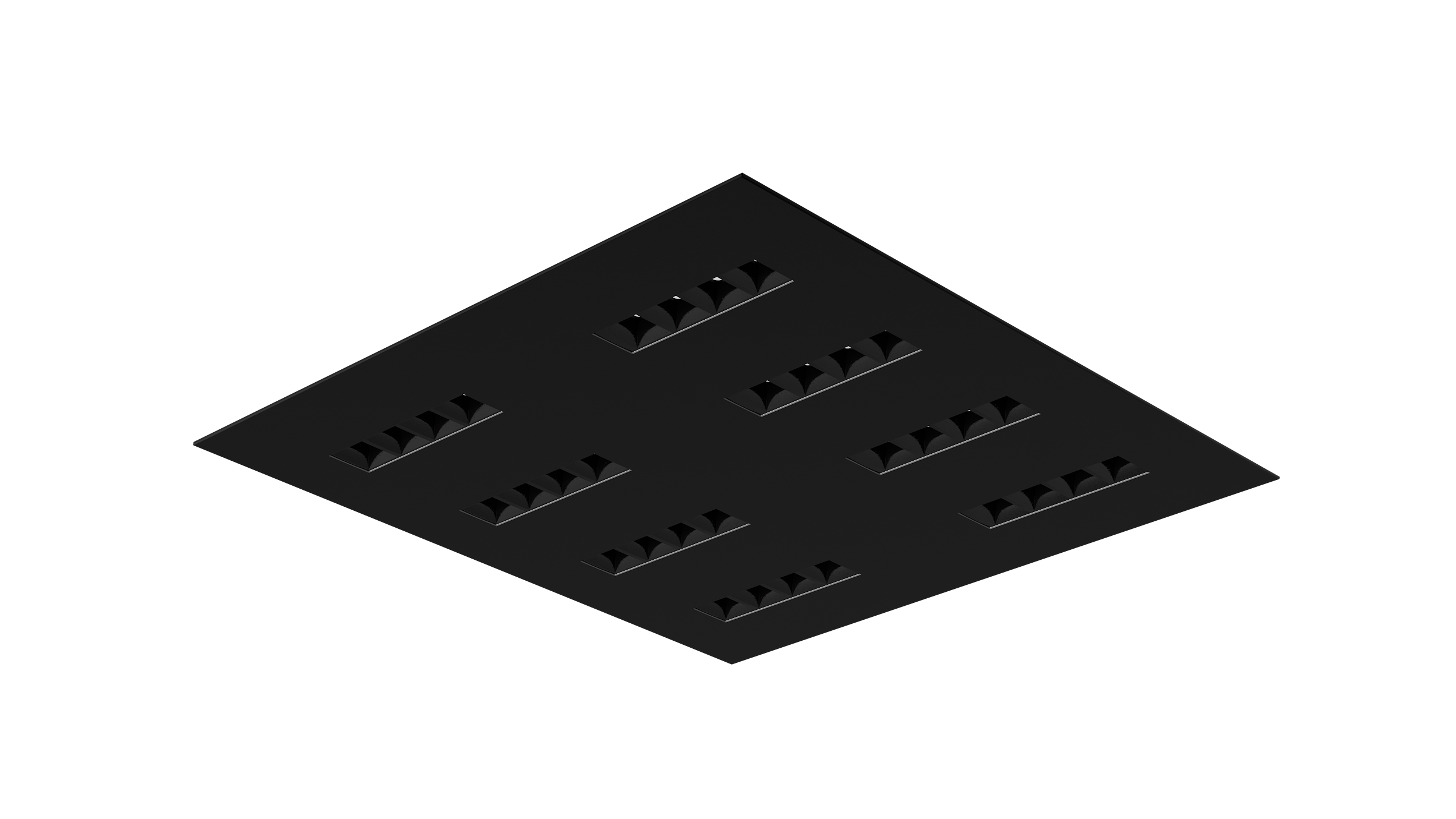

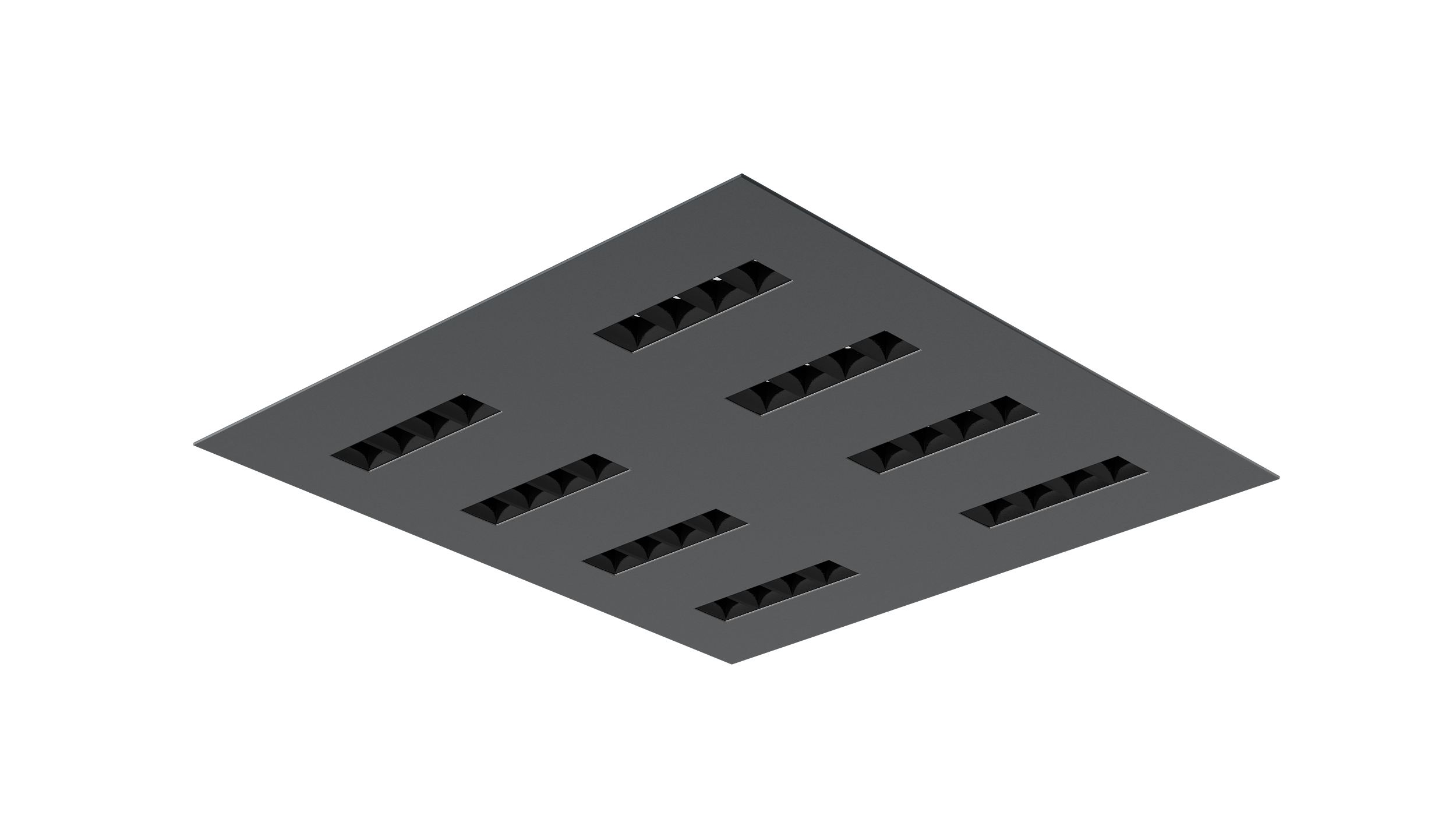

USL-A 8xB GK
TYPE
DIMENSIONS
LUMEN
CODE
| TYPE | DIMENSIONS | LUMEN | CODE |
| USL-A 8XB 600×600 LED 38W 830 | 600 x 600 x 35mm | 5484 lm | 203-131WL-B-600×600/38GK |
| NSL-A 8XB 600×600 LED 38W 840 | 600 x 600 x 35mm | 5826 lm | 203-141WL-B-600×600/38GK |

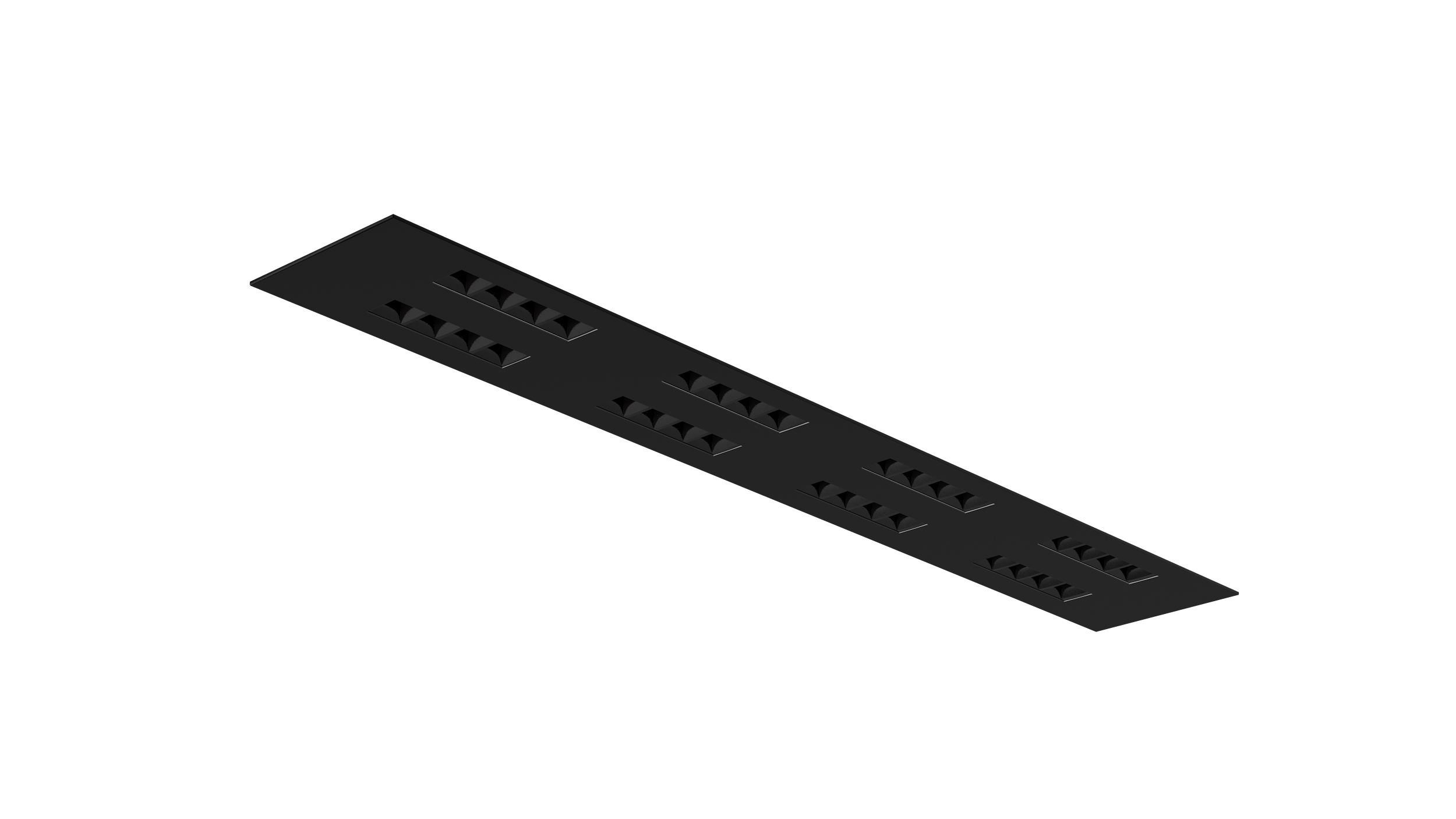

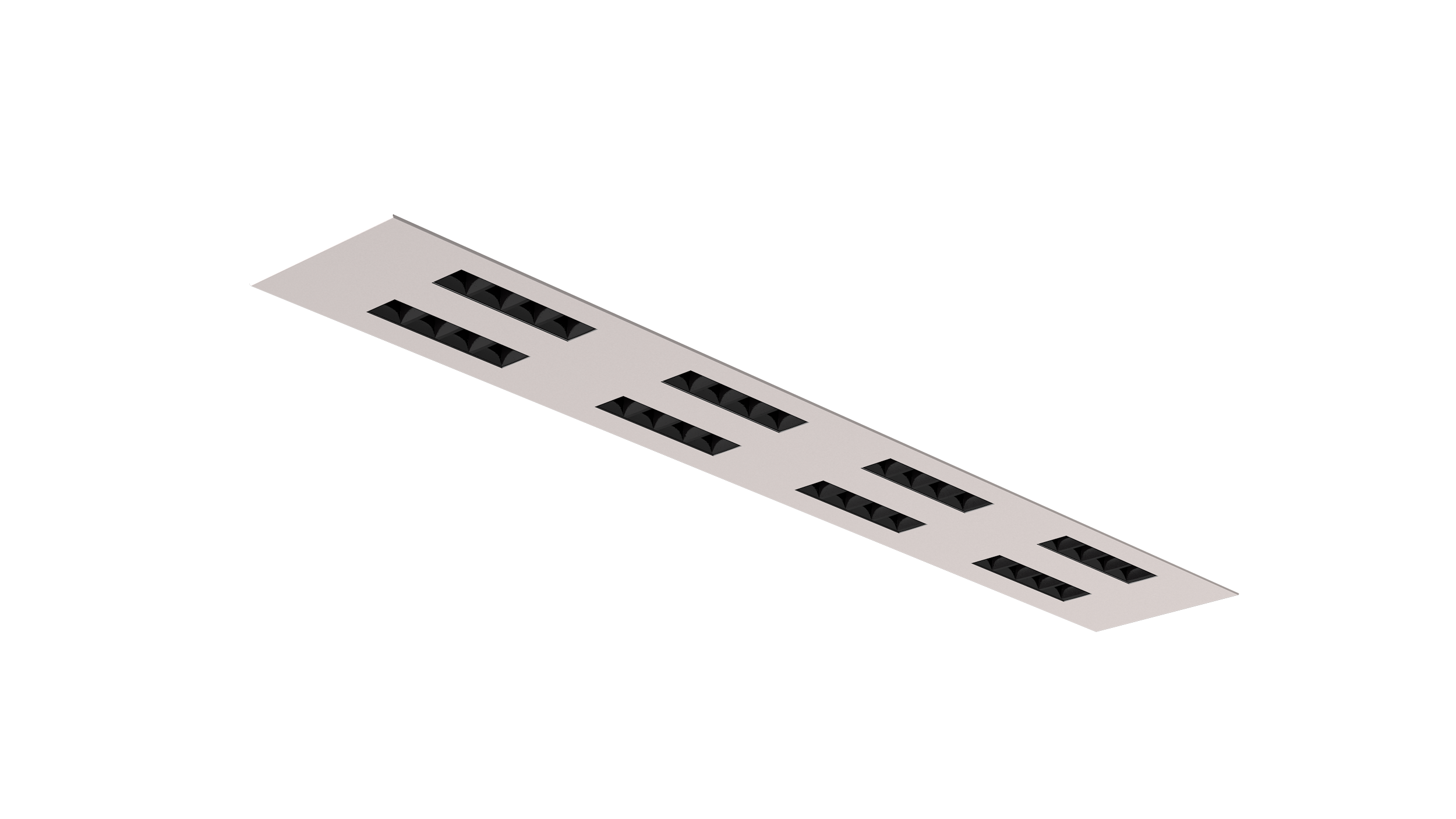

USL-B 8xB GK
TYPE
DIMENSIONS
LUMEN
CODE
| TYPE | DIMENSIONS | LUMEN | CODE |
| USL-B 8XB GK 1195×195 LED 38W 830 | 1195 x 195 x 35mm | 5484 lm | 203-131WL-B-1195×195/38GK |
| NSL-B 8XB GK 1195×195 LED 38W 840 | 1195 x 195 x 35mm | 5826 lm | 203-141WL-B-1195×195/38GK |

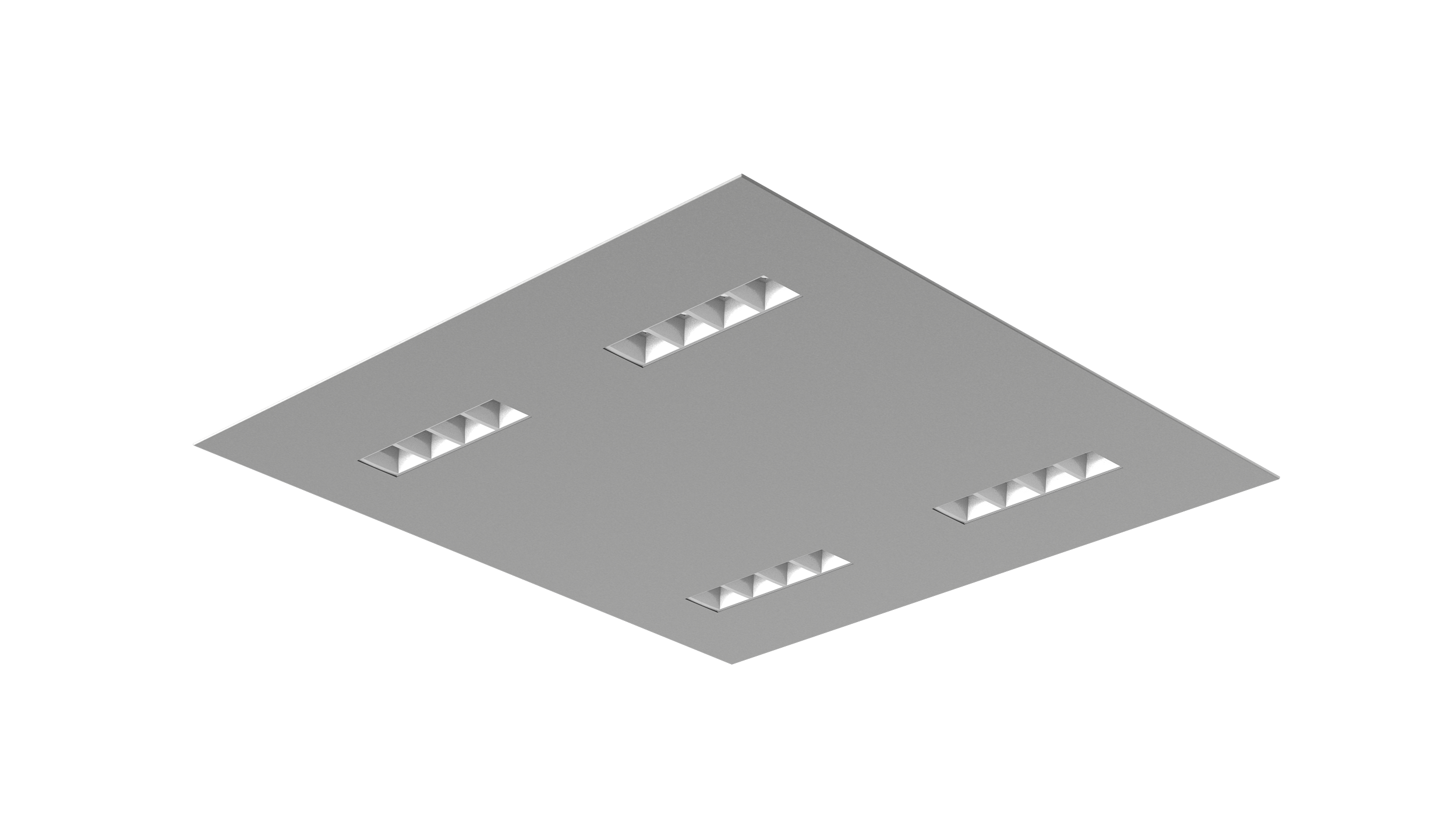

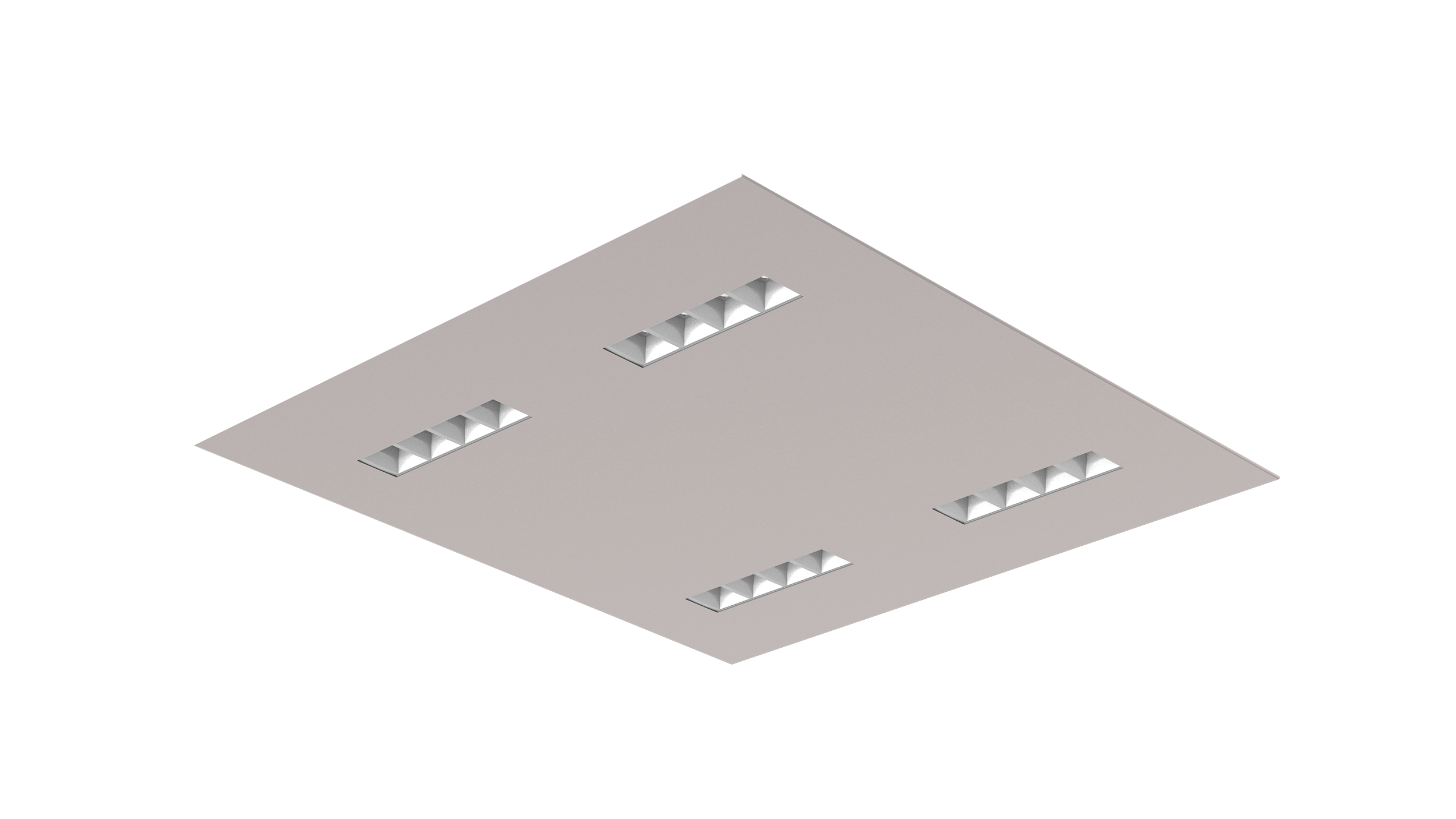

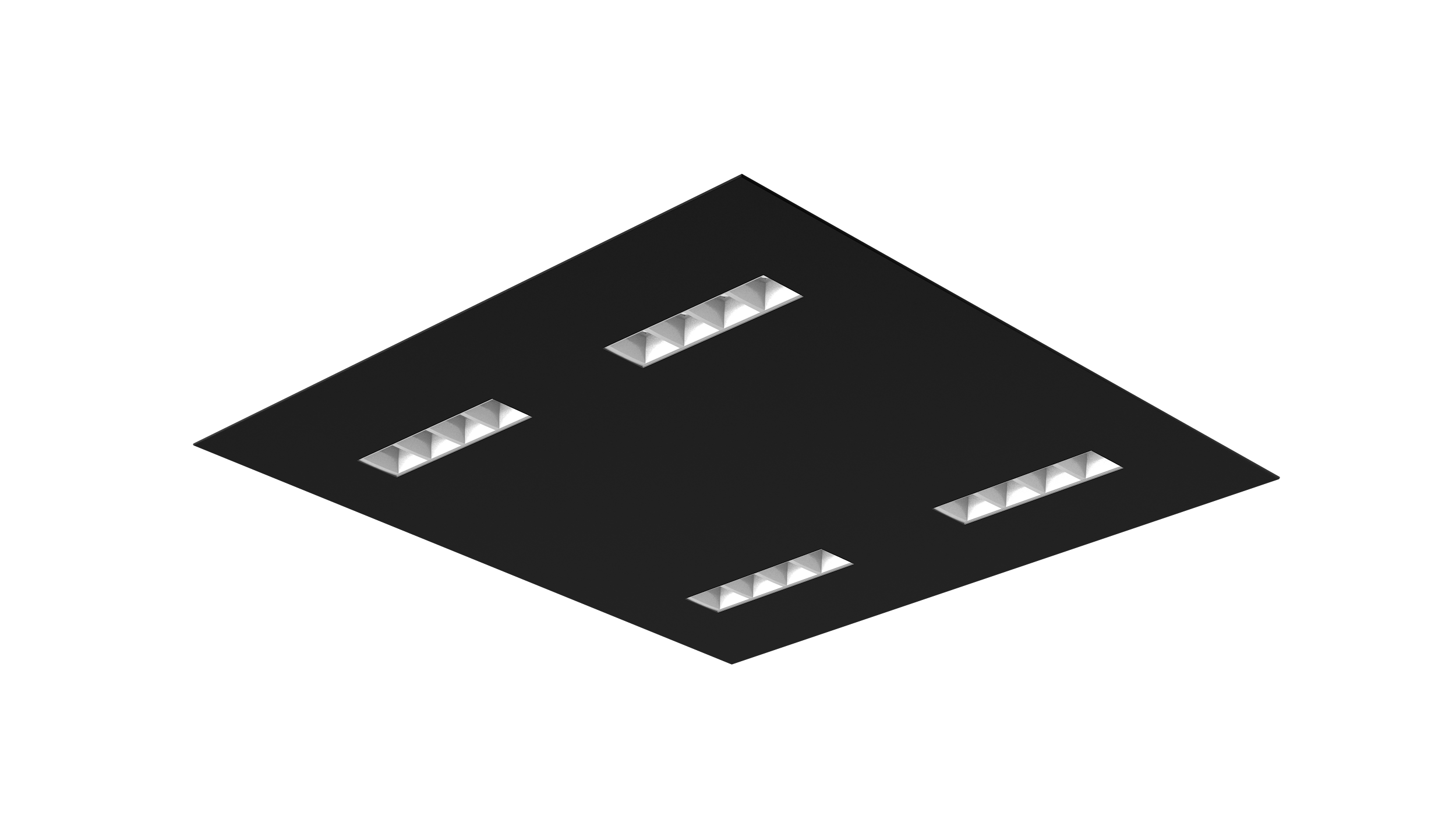

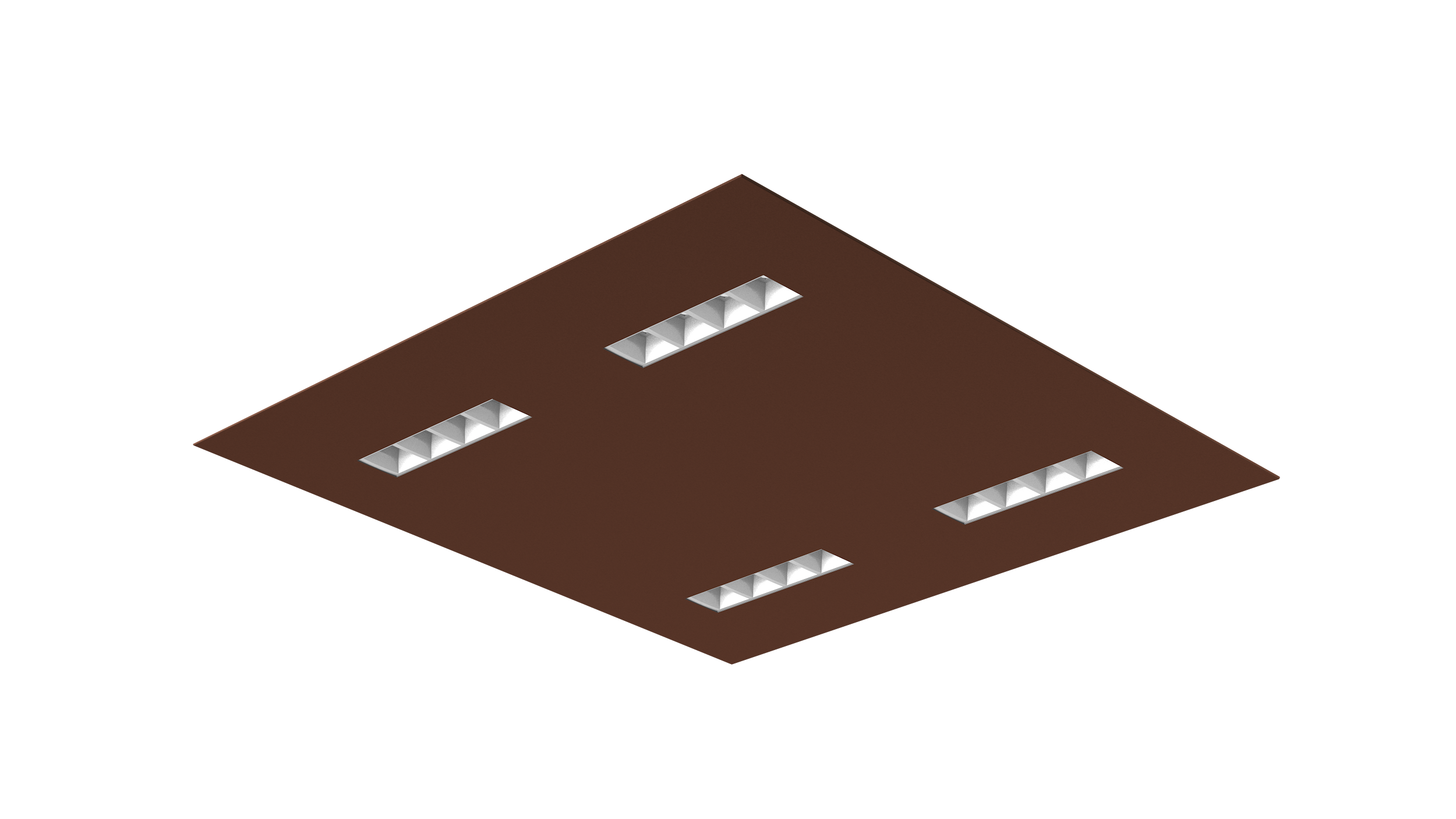

USL-A 4xW GK
| TYPE | DIMENSIONS | LUMEN | CODE |
| USL-A 4XW GK 600×600 LED 20W 830 | 600 x 600 x 35mm | 3036 lm | 203-131WL-W-600×600/20GK |
| USL-A 4XW GK 600×600 LED 20W 840 | 600 x 600 x 35mm | 3225 lm | 203-141WL-W-600×600/20GK |

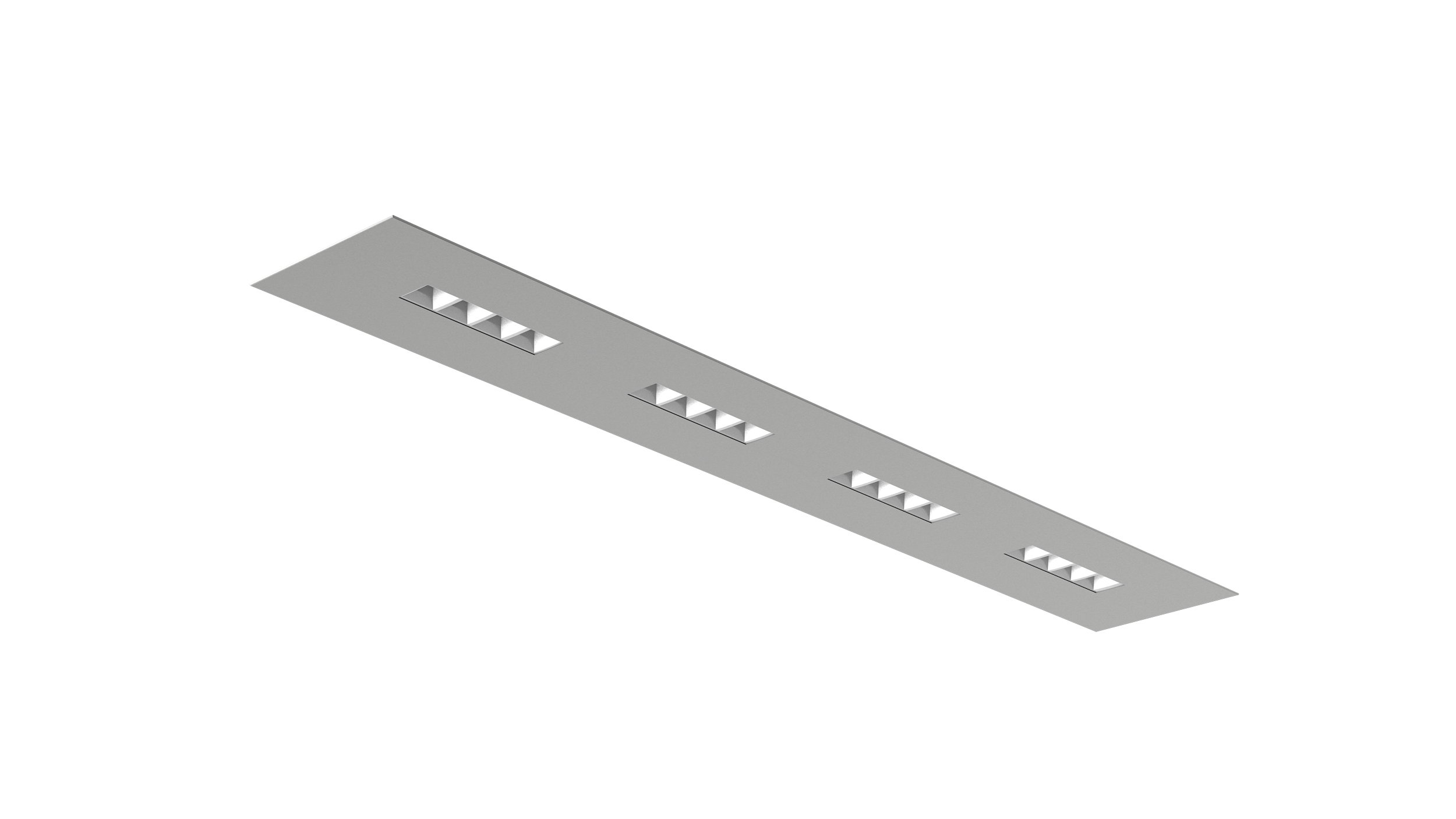

USL-B 4xW GK
| TYPE | DIMENSIONS | LUMEN | CODE |
| USL-B 4XW GK 1195×195 LED 20W 830 | 1195 x 195 x 35mm | 3036 lm | 203-131WL-W-1195×195/20GK |
| USL-B 4XW GK 1195×195 LED 20W 840 | 1195 x 195 x 35mm | 3225 lm | 203-141WL-W-1195×195/20GK |

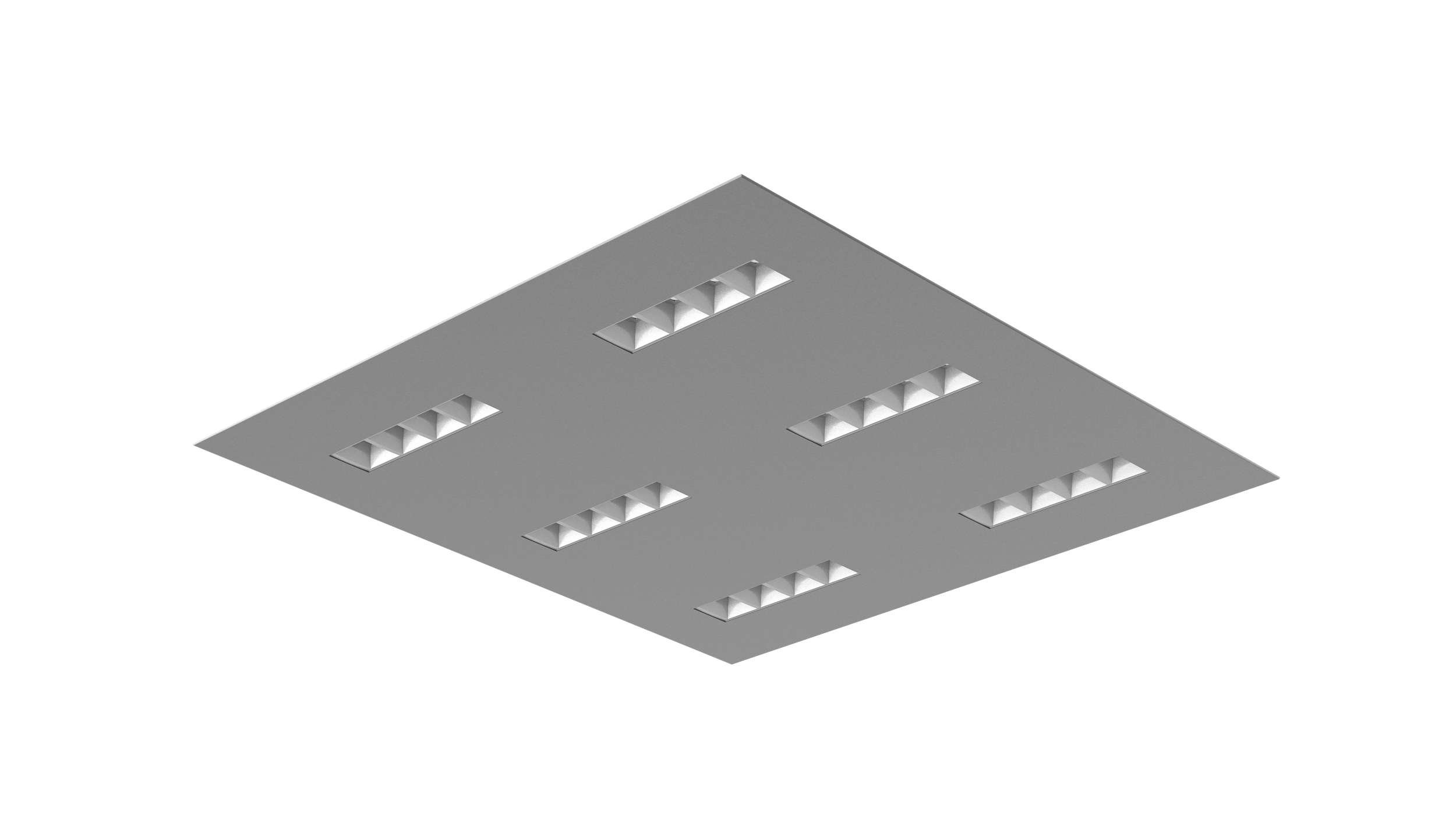

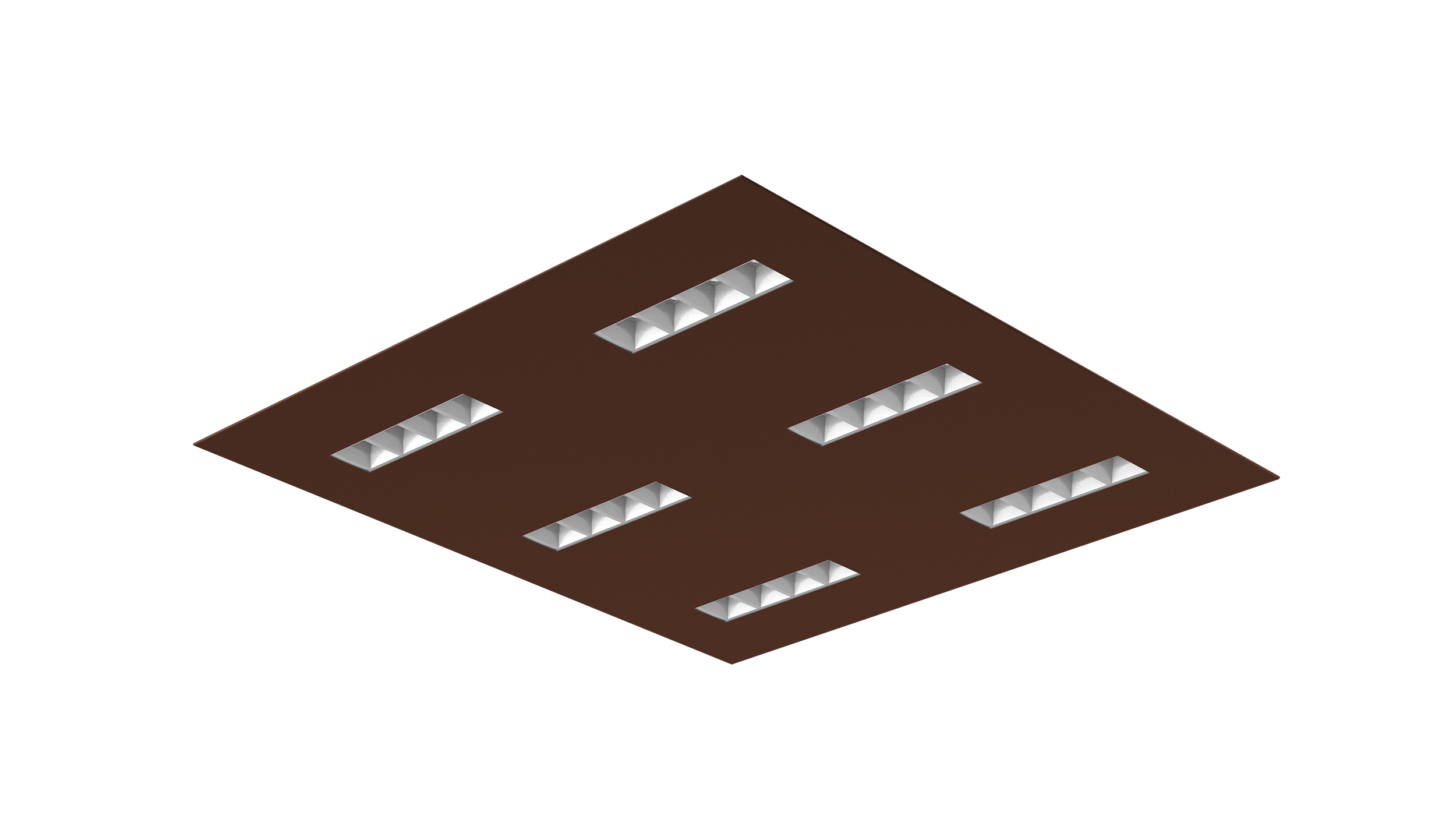

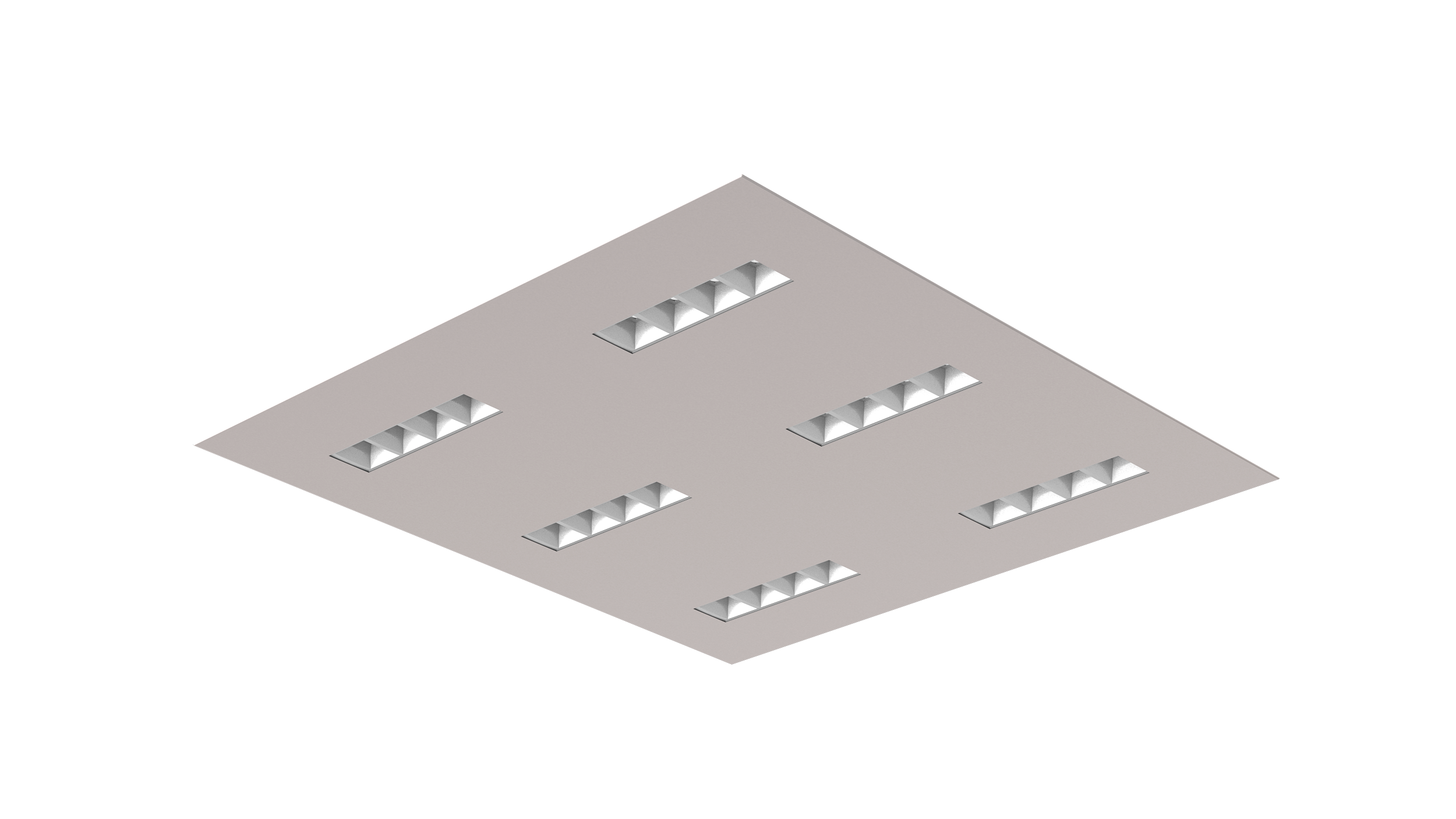

USL-A 6xW GK
| TYPE | DIMENSIONS | LUMEN | CODE |
| USL-A 6XW GK 600×600 LED 29W 830 | 600 x 600 x 35mm | 4553 lm | 203-131WL-W-600×600/29GK |
| USL-A 6XW GK 600×600 LED 29W 840 | 600 x 600 x 35mm | 4838 lm | 203-141WL-W-600×600/29GK |

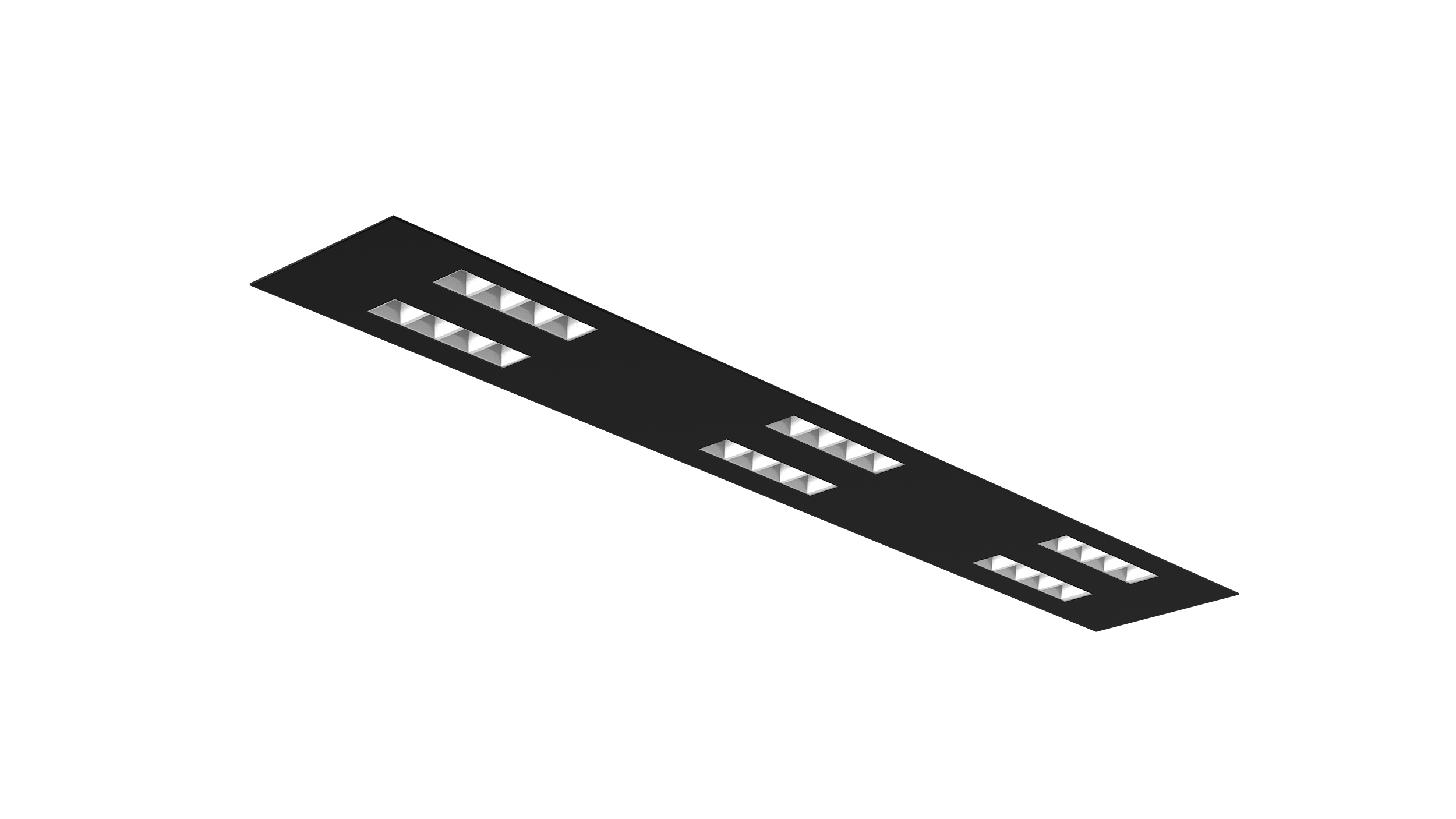

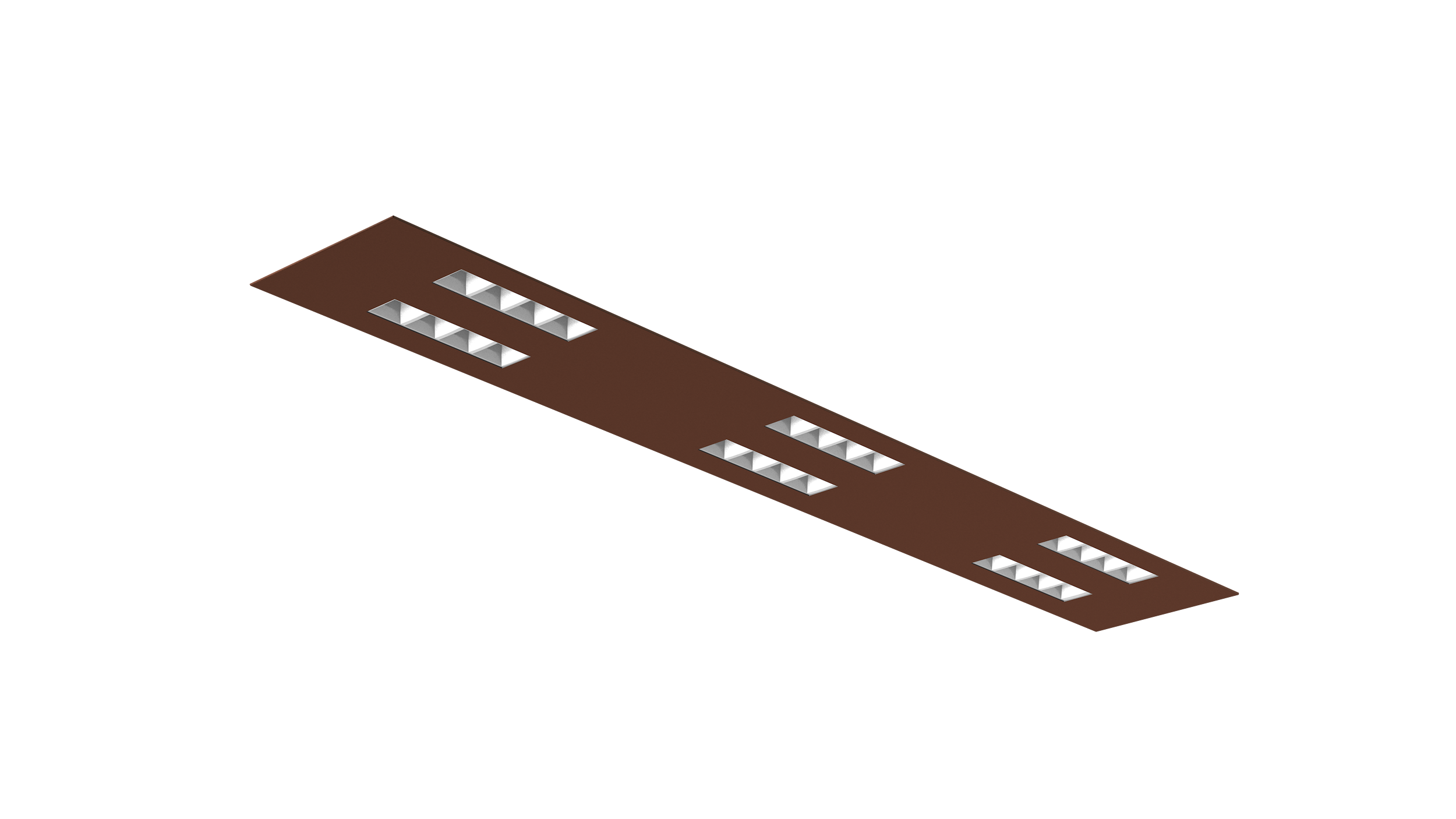

USL-B 6xW GK
| TYPE | DIMENSIONS | LUMEN | CODE |
| USL-B 6xW GK 1195×195 LED 29W 830 | 1195 x 195 x 35mm | 4553 lm | 203-131WL-W-1195×195/29GK |
| USL-B 6xW GK 1195×195 LED 29W 840 | 1195 x 195 x 35mm | 4838 lm | 203-141WL-W-1195×195/29GK |

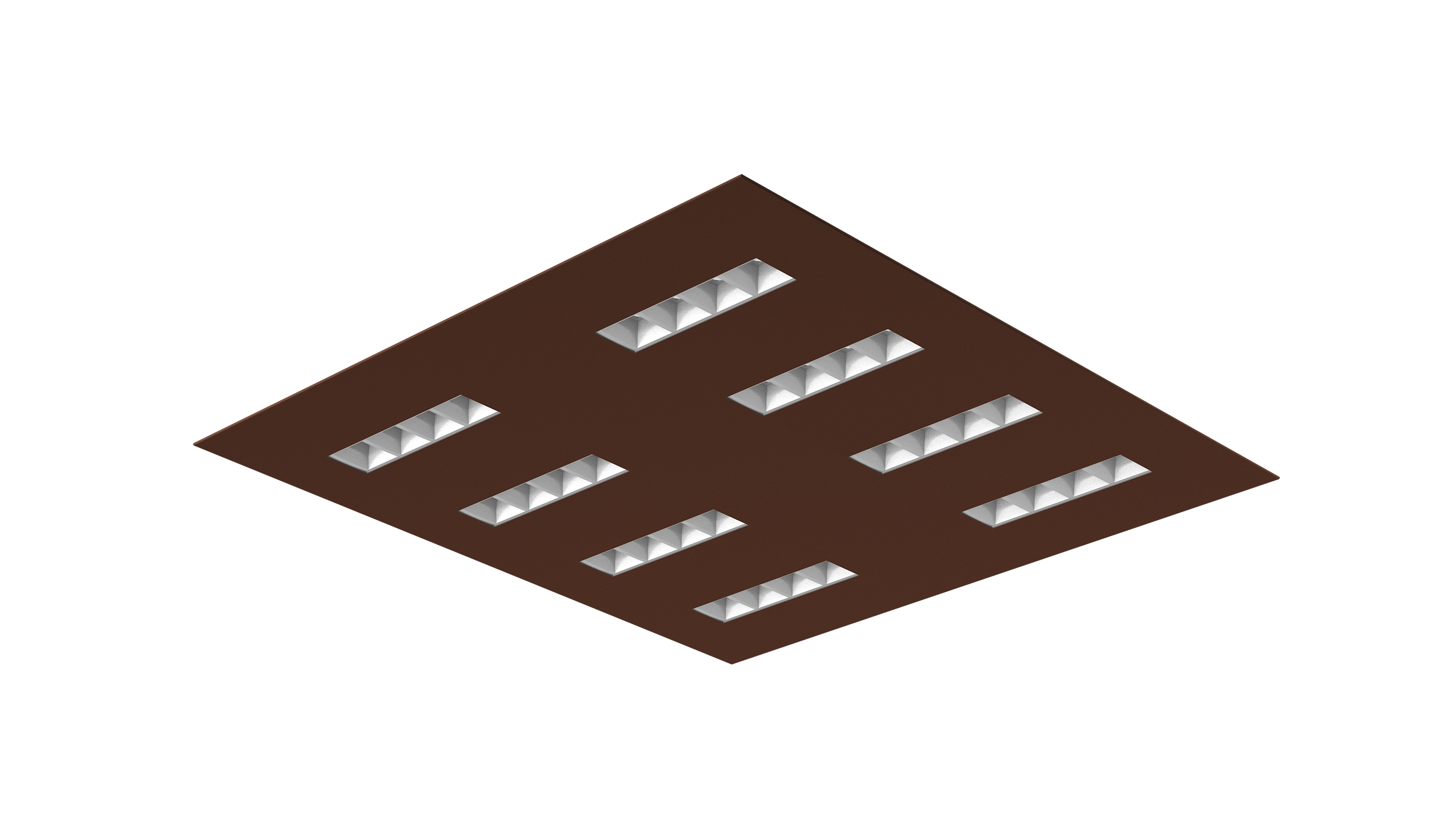

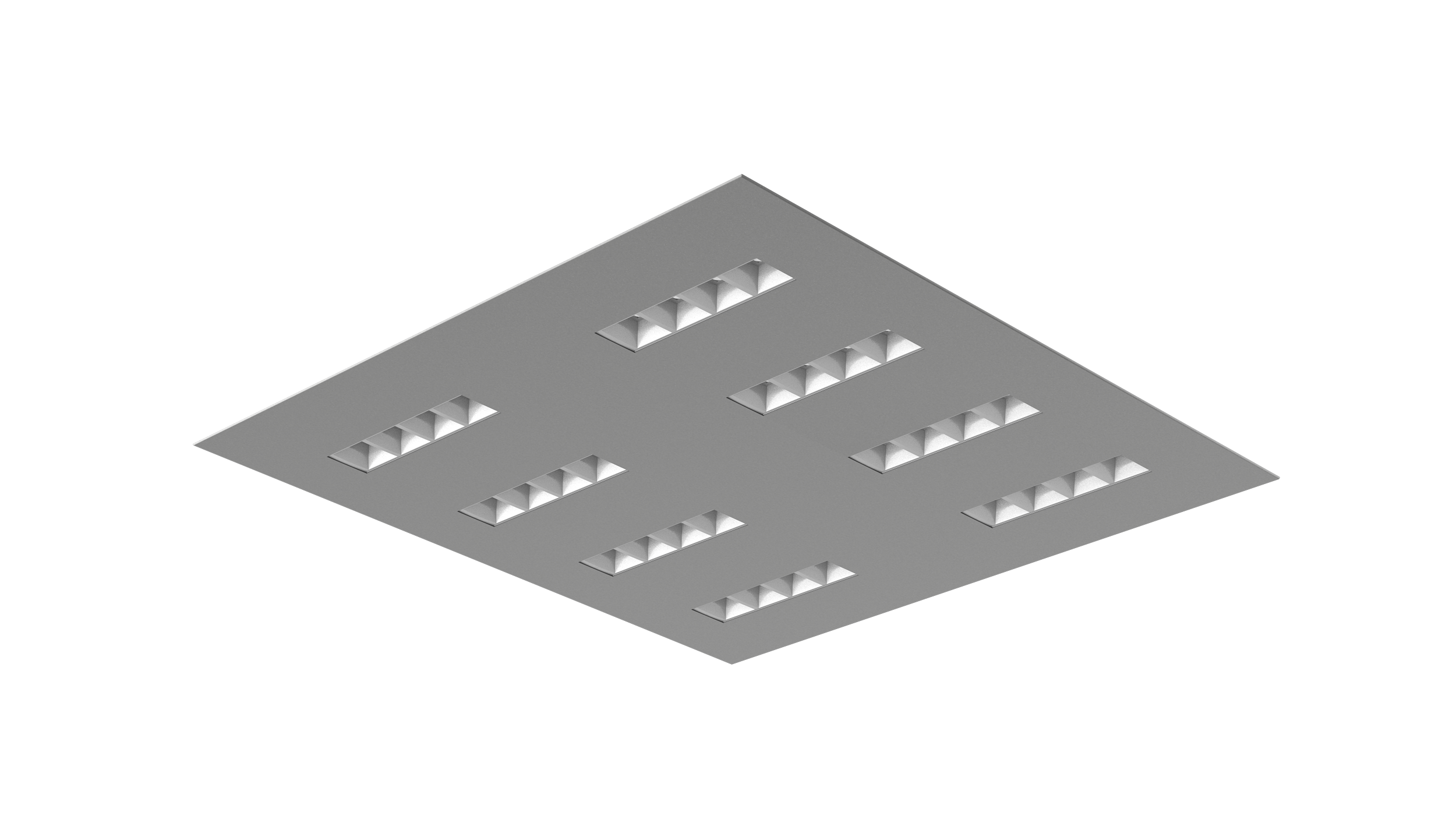

USL-A 8xW GK
| TYPE | DIMENSIONS | LUMEN | CODE |
| USL-A 8XW GK 600×600 LED 38W 830 | 600 x 600 x 35mm | 6071 lm | 203-131WL-W-600×600/38GK |
| NSL-A 8XW GK 600×600 LED 38W 840 | 600 x 600 x 35mm | 6450 lm | 203-141WL-W-600×600/38GK |

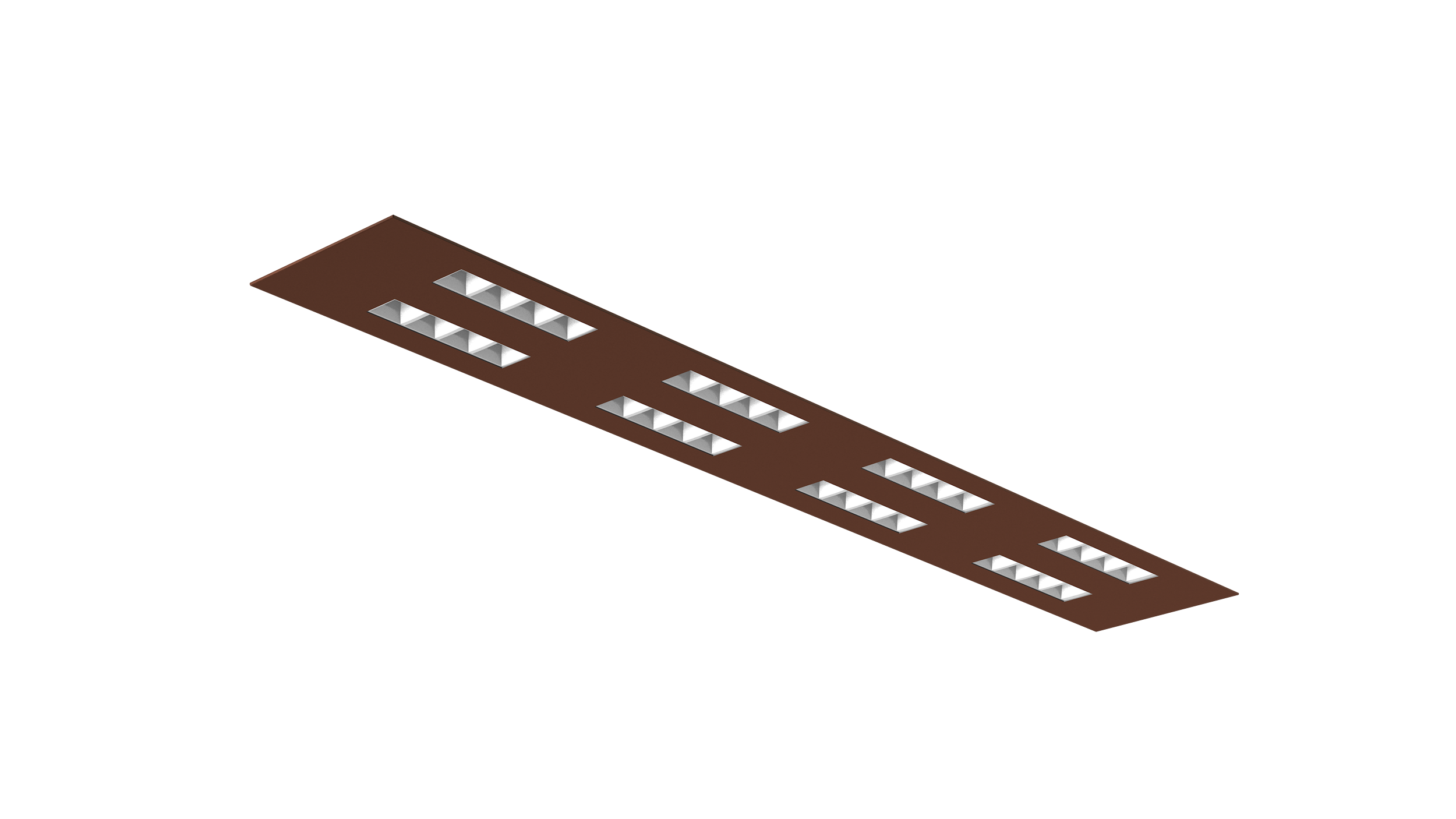

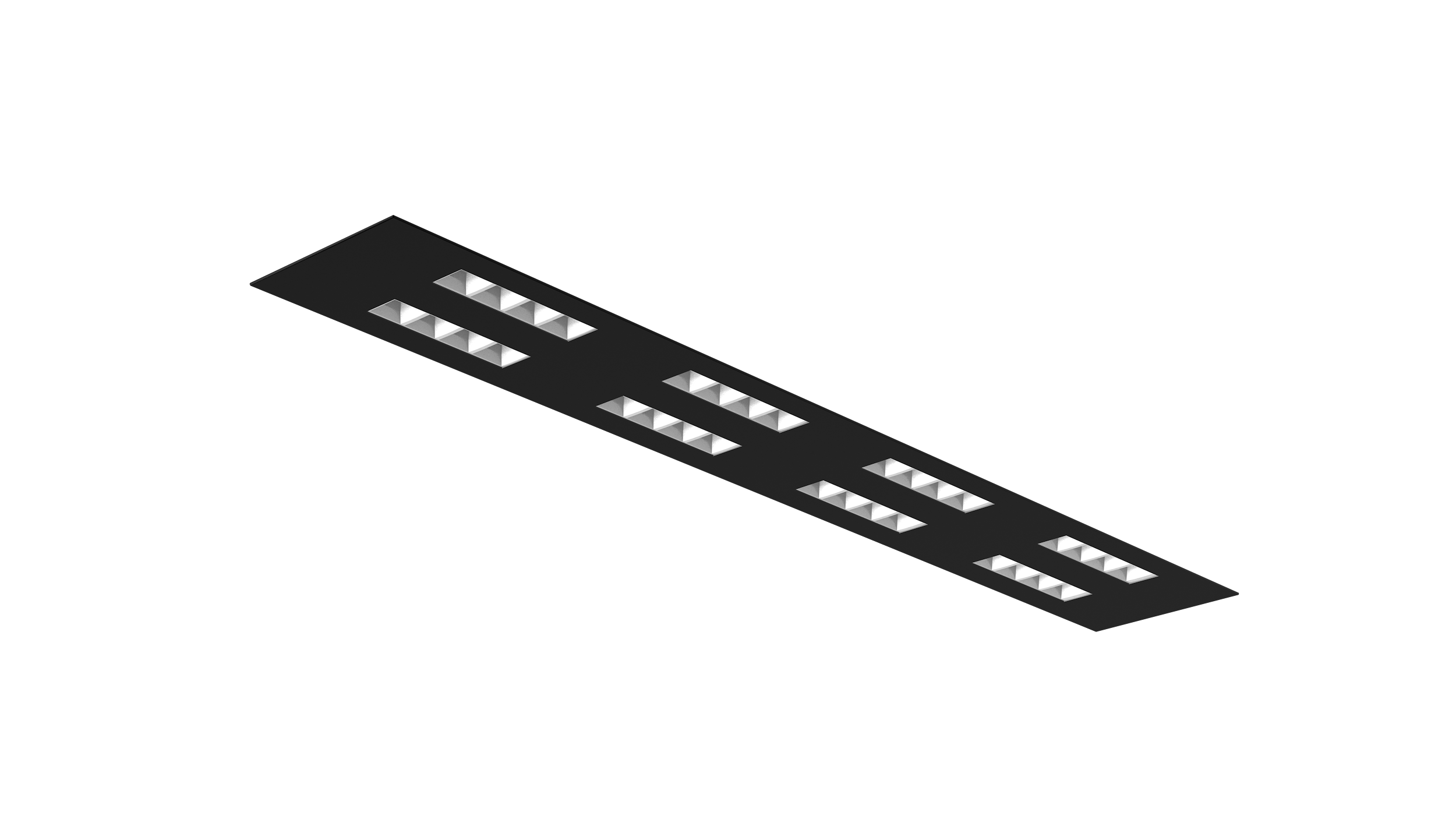

USL-B 8xW GK
| TYPE | DIMENSIONS | LUMEN | CODE |
| USL-B 8xW GK 1195×195 LED 40W 830 | 1195 x 195 x 35mm | 6071 lm | 203-131WL-W-1195×195/38GK |
| USL-B 8xW GK 1195×195 LED 40W 840 | 1195 x 195 x 35mm | 6450 lm | 203-141WL-W-1195×195/38GK |
