Prime
Nadgradna IP44 LED svjetiljka, tijela izrađenog iz dekapiranog čeličnog lima, poklopci i optika od polikarbonata. Izvor svjetla LED samohladivi čvrsti linearni moduli, klasifikacije MacAdam3, CRI>80, Fotobiološka grupa rizika RG0. Svjetiljka mora zadovoljavati sve norme potrebne za izdavanje CE oznake. Garancija 5 godina.
| NAPAJANJE | 230 V |
| IP ZAŠTITA | IP44 |
| IK ZAŠTITA | IK06 |
| KLASA EL. IZOLACIJE | I |
| SDCM | <3 |
| UČINKOVITOST | do 150lm/W |
| UZVRAT BOJE | >80 |
| ŽIVOTNI VIJEK | L90B10 52000h |
| POWER FACTOR | 0.95 – 0.90 |
| DEKLARIRANA RADNA TEMPERATURA | -20°C do +45°C |
| OPTIKA | OPAL |
| MATERIJAL OPTIKE | POLIKARBONAT |
| MATERIJAL KUĆIŠTA | ČELIK |
| UGRADNJA | NADGRADNA |
| DOWNLOAD | UPUTE UKLANJANJA… |
Prime

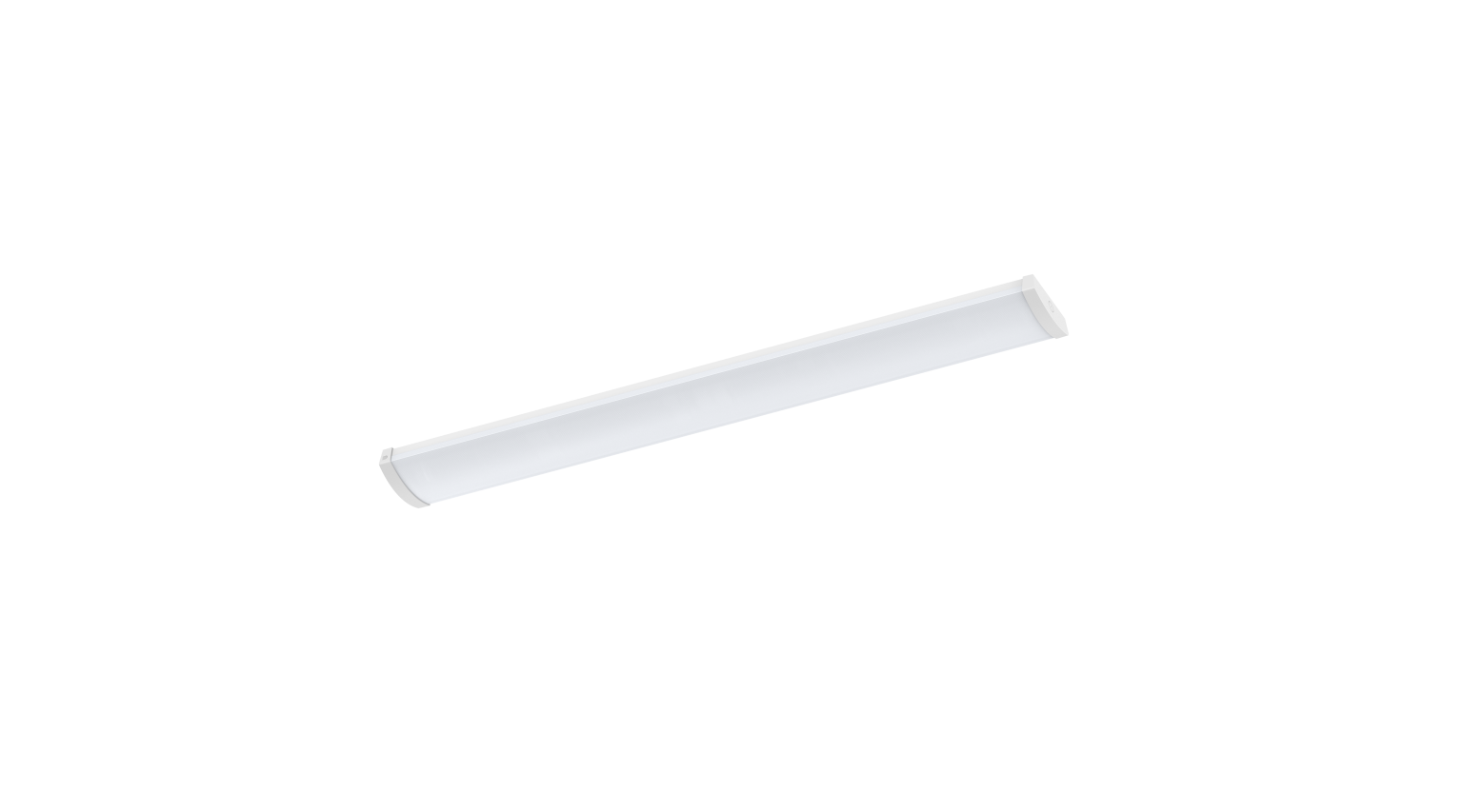

| TIP | DIMENZIJE | LUMEN | ŠIFRA |
| PRIME 1200 LED 16W 830 | 1200x148x50mm | 2240 lm | 221-231WM-1200/16 |
| PRIME 1200 LED 16W 840 | 1200x148x50mm | 2400 lm | 221-241WM-1200/16 |
| PRIME 1200 LED 20W 830 | 1200x148x50mm | 2750 lm | 221-231WM-1200/20 |
| PRIME 1200 LED 20W 840 | 1200x148x50mm | 3000 lm | 221-241WM-1200/20 |
| PRIME 1200 LED 24W 830 | 1200x148x50mm | 3200 lm | 221-231WM-1200/24 |
| PRIME 1200 LED 24W 840 | 1200x148x50mm | 3360 lm | 221-241WM-1200/24 |
| PRIME 1200 LED 36W 830 | 1200x148x50mm | 4860 lm | 221-231WM-1200/36 |
| PRIME 1200 LED 36W 840 | 1200x148x50mm | 5040 lm | 221-241WM-1200/36 |
| PRIME 1200 LED 40W 830 | 1200x148x50mm | 5400 lm | 221-231WM-1200/40 |
| PRIME 1200 LED 40W 840 | 1200x148x50mm | 5600 lm | 221-241WM-1200/40 |

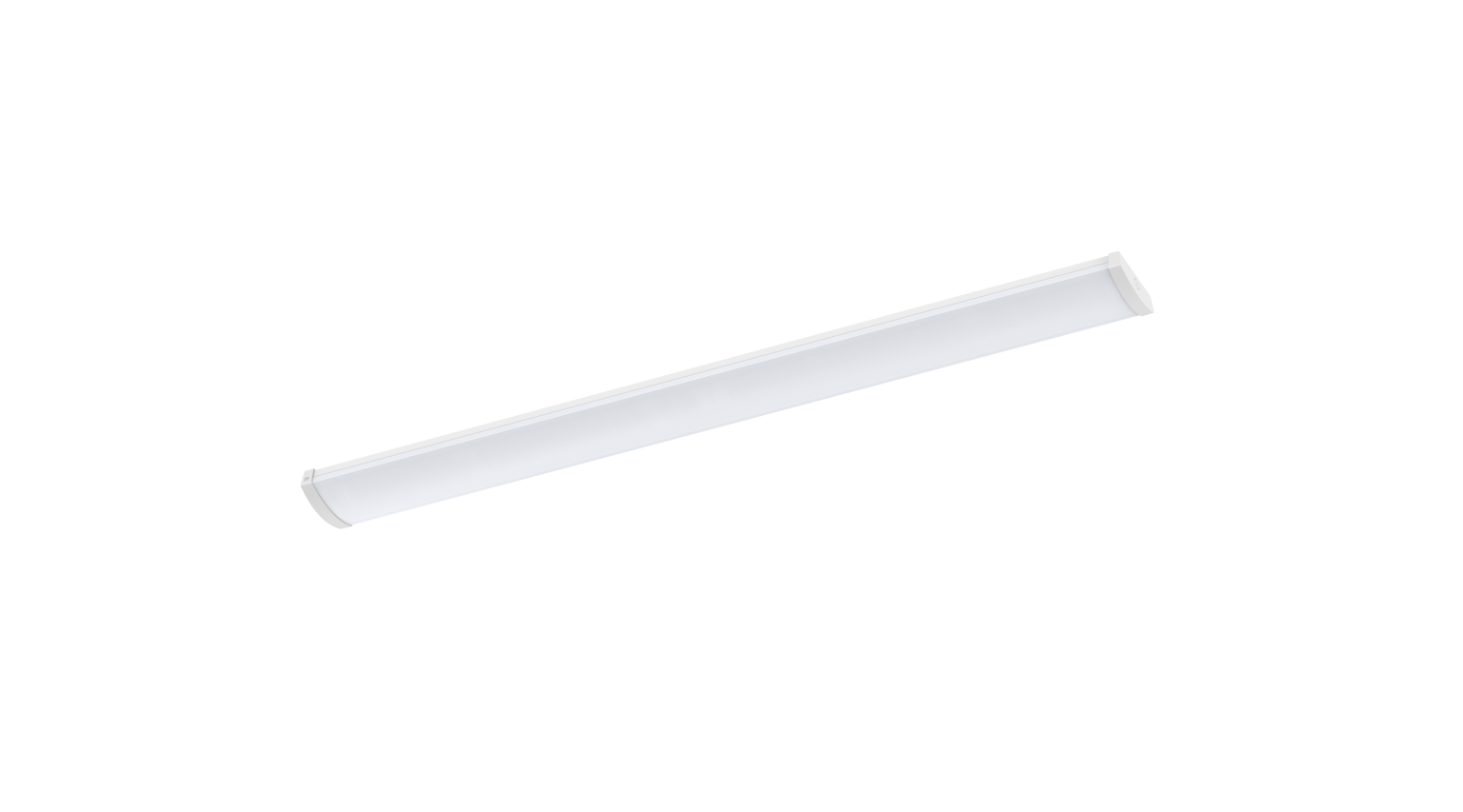

| TIP | DIMENZIJE | LUMEN | ŠIFRA |
| PRIME 1500 LED 36W 830 | 1500x148x50mm | 4860 lm | 221-231WM-1500/36 |
| PRIME 1500 LED 36W 840 | 1500x148x50mm | 5040 lm | 221-241WM-1500/36 |
| PRIME 1500 LED 40W 830 | 1500x148x50mm | 5400 lm | 221-231WM-1500/40 |
| PRIME 1500 LED 40W 840 | 1500x148x50mm | 5600 lm | 221-241WM-1500/40 |
| PRIME 1500 LED 45W 830 | 1500x148x50mm | 6050 lm | 221-231WM-1500/45 |
| PRIME 1500 LED 45W 840 | 1500x148x50mm | 6300 lm | 221-241WM-1500/45 |
| PRIME 1500 LED 50W 830 | 1500x148x50mm | 6600 lm | 221-231WM-1500/50 |
| PRIME 1500 LED 50W 840 | 1500x148x50mm | 7000 lm | 221-241WM-1500/50 |
| PRIME 1500 LED 54W 830 | 1500x148x50mm | 7180 lm | 221-231WM-1500/54 |
| PRIME 1500 LED 54W 840 | 1500x148x50mm | 7830 lm | 221-241WM-1500/54 |
