    DWL 95
    DWL 95
    DWL 95

    click here to see all the
    custom possibilities
    for our products

    Recessed downlight luminaire made of cast aluminum with a recessed polycarbonate lens with beam of light 36°or 60° and reflector for a reduced glare effect in matte white , black or reflective silver color. LED source in IP54 protection. The luminaire comes with a corresponding external power supply. LED light source classification MacAdam3, CRI>80, Photobiological risk group RG1.

    SUPPLY230 V
    IP CODEIP54/IP40
    IK PROTECTIONIK06
    ELECTRICALPROTECTIONCLASSII
    SDCM<3
    EFFICIENCYup to 128m/W (Silver 60°)
    COLOUR RENDERING INDEX>80
    LED LIFESPANL90B10 50000h 35°C
    POWER FACTOR0.95
    UGR<17(36° i 60°)
    OPTICS36° and 60° and MAT
    OPTICS MATERIALPMMA
    MATERIAL OF BODYALUMINIUM
    MOUNTING VERSIONRECESSED
    CEILING CUTOUT82-88mm
    DOWNLOADREMOVAL INSTRUCTION…

    DWL WHITE 36D

    TYPEDIMENSIONSLUMENCODE
    DWL WHITE 95 LED 6W 36D 830Ø95 x 54mm628 lm101-131WU-95/6-36
    DWL WHITE 95 LED 8W 36D 830Ø95 x 54mm838 lm101-131WU-95/8-36
    DWL WHITE 95 LED 10W 36D 830Ø95 x 54mm963 lm101-131WU-95/10-36
    DWL WHITE 95 LED 6W 36D 840Ø95 x 54mm655 lm101-141WU-95/6-36
    DWL WHITE 95 LED 8W 36D 840Ø95 x 54mm873 lm101-141WU-95/8-36
    DWL WHITE 95 LED 10W 36D 840Ø95 x 54mm1017 lm101-141WU-95/10-36

    DWL WHITE 60D

    TYPEDIMENSIONSLUMENCODE
    DWL WHITE 95 LED 6W 60D 830Ø95 x 54mm659 lm101-131WU-95/6-60
    DWL WHITE 95 LED 8W 60D 830Ø95 x 54mm878 lm101-131WU-95/8-60
    DWL WHITE 95 LED 10W 60D 830Ø95 x 54mm1023 lm101-131WU-95/10-60
    DWL WHITE 95 LED 6W 60D 840Ø95 x 54mm685 lm101-141WU-95/6-60
    DWL WHITE 95 LED 8W 60D 840Ø95 x 54mm914 lm101-141WU-95/8-60
    DWL WHITE 95 LED 10W 60D 840Ø95 x 54mm1068 lm101-141WU-95/10-60

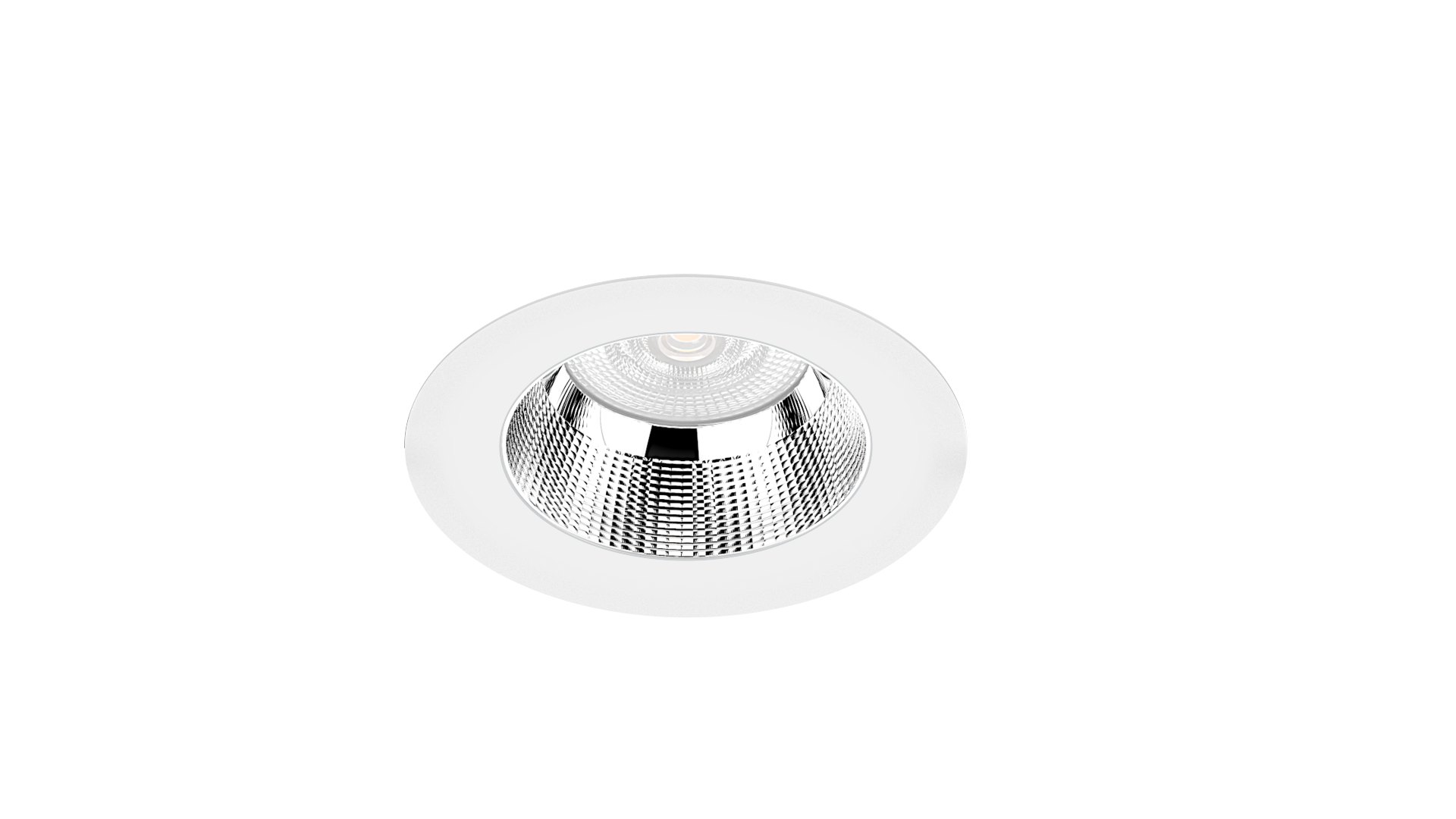

    DWL SILVER 36D

    TYPEDIMENSIONSLUMENCODE
    DWL SILVER 95 LED 6W 36D 830Ø95 x 54mm698 lm101-131SU-95/6-36
    DWL SILVER 95 LED 8W 36D 830Ø95 x 54mm931 lm101-131SU-95/8-36
    DWL SILVER 95 LED 10W 36D 830Ø95 x 54mm1070 lm101-131SU-95/10-36
    DWL SILVER 95 LED 6W 36D 840Ø95 x 54mm728 lm101-141SU-95/6-36
    DWL SILVER 95 LED 8W 36D 840Ø95 x 54mm971 lm101-141SU-95/8-36
    DWL SILVER 95 LED 10W 36D 840Ø95 x 54mm1130 lm101-141SU-95/10-36

    DWL SILVER 60D

    TYPEDIMENSIONSLUMENCODE
    DWL SILVER 95 LED 6W 60D 830Ø95 x 54mm732 lm101-131SU-95/6-60
    DWL SILVER 95 LED 8W 60D 830Ø95 x 54mm976 lm101-131SU-95/8-60
    DWL SILVER 95 LED 10W 60D 830Ø95 x 54mm1137 lm101-131SU-95/10-60
    DWL SILVER 95 LED 6W 60D 840Ø95 x 54mm762 lm101-141SU-95/6-60
    DWL SILVER 95 LED 8W 60D 840Ø95 x 54mm1016 lm101-141SU-95/8-60
    DWL SILVER 95 LED 10W 60D 840Ø95 x 54mm1187 lm101-141SU-95/10-60

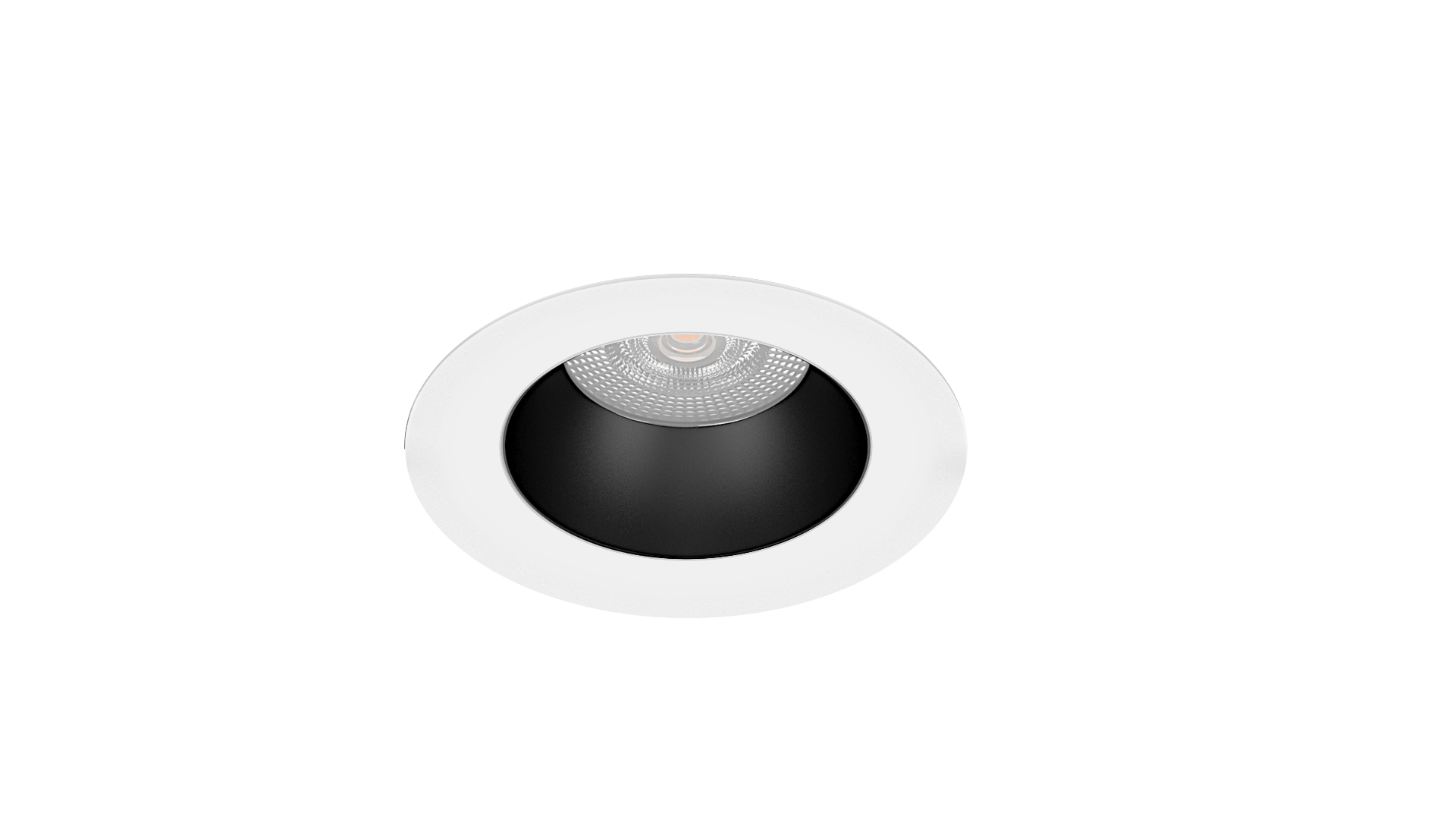

    DWL BLACK 36D

    TYPEDIMENSIONSLUMENCODE
    DWL BLACK 95 LED 6W 36D 830Ø95 x 54mm488 lm101-131BU-95/6-36
    DWL BLACK 95 LED 8W 36D 830Ø95 x 54mm652 lm101-131BU-95/8-36
    DWL BLACK 95 LED 10W 36D 830Ø95 x 54mm749 lm101-131BU-95/10-36
    DWL BLACK 95 LED 6W 36D 840Ø95 x 54mm509 lm101-141BU-95/6-36
    DWL BLACK 95 LED 8W 36D 840Ø95 x 54mm679 lm101-141BU-95/8-36
    DWL BLACK 95 LED 10W 36D 840Ø95 x 54mm791 lm101-141BU-95/10-36

    DWL BLACK 60D

    TYPEDIMENSIONSLUMENCODE
    DWL BLACK 95 LED 6W 60D 830Ø95 x 54mm512 lm101-131BU-95/6-60
    DWL BLACK 95 LED 8W 60D 830Ø95 x 54mm683 lm101-131BU-95/8-60
    DWL BLACK 95 LED 10W 60D 830Ø95 x 54mm796 lm101-131BU-95/10-60
    DWL BLACK 95 LED 6W 60D 840Ø95 x 54mm533 lm101-141BU-95/6-60
    DWL BLACK 95 LED 8W 60D 840Ø95 x 54mm711 lm101-141BU-95/8-60
    DWL BLACK 95 LED 10W 60D 840Ø95 x 54mm831 lm101-141BU-95/10-60
    DWL BLACK 172 LED 10W 60D 830Ø172 X 90mm805 lm101-131BU-172/10-60

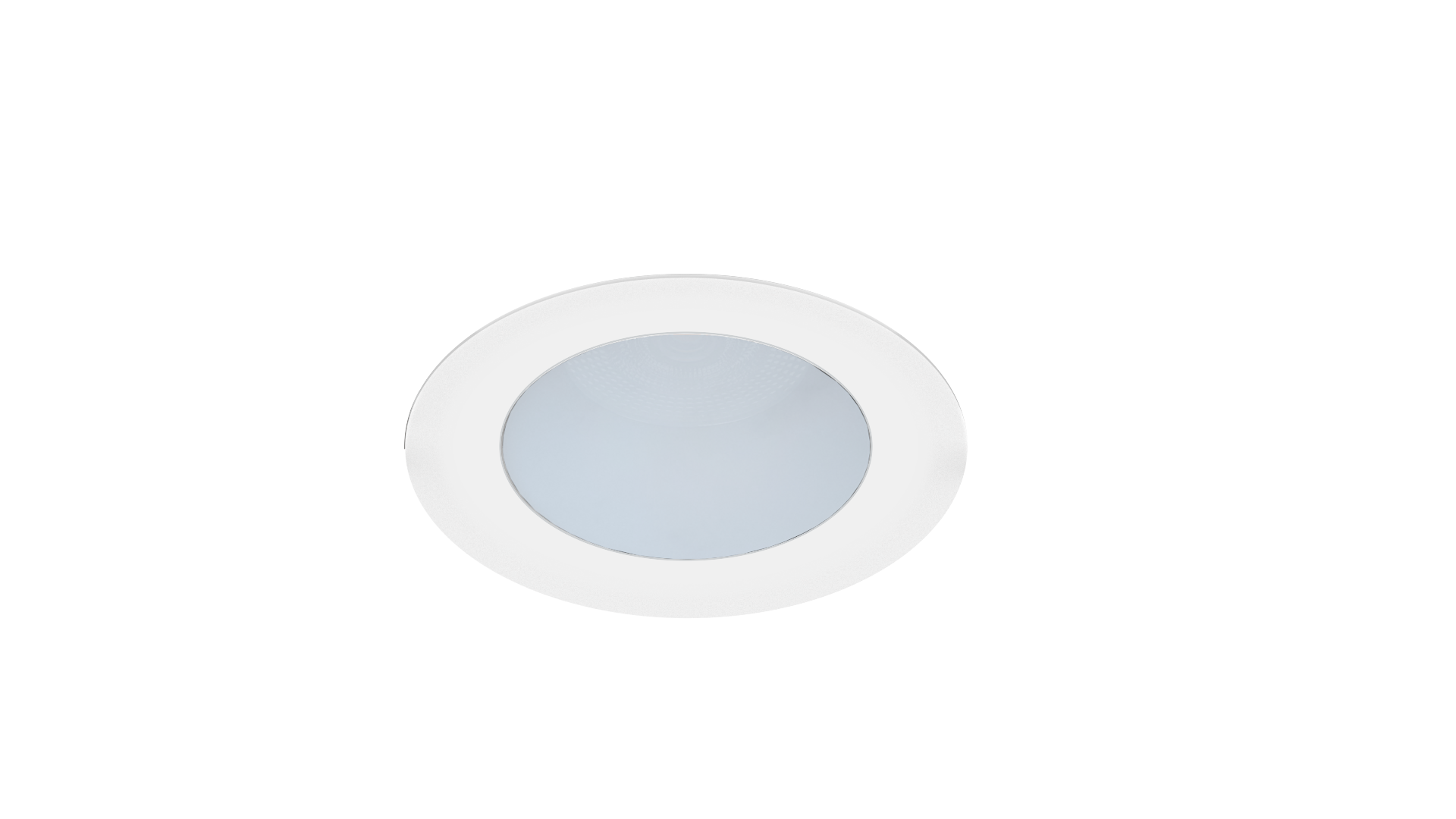

    DWL MAT

    TYPEDIMENSIONLUMENCODE
    DWL MAT 95 LED 6W 830Ø95 x 54mm639 lm101-131MU-95/6-60
    DWL MAT 95 LED 8W 830Ø95 x 54mm851 lm101-131MU-95/8-60
    DWL MAT 95 LED 10W 830Ø95 x 54mm992 lm101-131MU-95/10-60
    DWL MAT 95 LED 6W 840Ø95 x 54mm664 lm101-141MU-95/6-60
    DWL MAT 95 LED 8W 840Ø95 x 54mm886 lm101-141MU-95/8-60
    DWL MAT 95 LED 10W 840Ø95 x 54mm1035 lm101-141MU-95/10-60
