Recessed luminaire made of cast aluminum with a recessed light source, featuring IP54/IP40 protection, symmetric light beam optics of 60°, and a white reflector. Mechanical impact protection IK06. LED light source, light color quality SDCM ≤ 3, color rendering index CRI>90, UGR <19, insulation class II, Glow wire test 85°C. Possibility of changing the light temperature 3000K or 4000K. The luminaire comply with all standards necessary for obtaining the CE mark. 5-year warranty.
| SUPPLY | 230 V |
| IP CODE | IP54/IP40 |
| IK RATING | / |
| ELECTRICAL PROTECTION CLASS | II |
| SDCM | <3 |
| EFFICIENCY | 121-128lm/W |
| COLOUR RENDERING INDEX | >90 |
| LED LIFESPAN | L80B10 50000h 35°C |
| POWER FACTOR | 0.95 |
| UGR | <19 |
| OPTICS | PC |
| OPTICS MATERIAL | POLYCARBONATE |
| MATERIAL OF BODY | ALUMINIUM |
| MOUNTING VERSION | RECESSED |
| CEILING CUTOUT | 200-210mm |
| DOWNLOAD | UPUTE UKLANJANJA… |
DWL WHITE 60D
| TYPE | DIMENSIONS | LUMEN | CODE |
| DWL WHITE 228 LED 10W 60D 930 | Ø228 X 99mm | 1215 lm | 101-131WU-228/10-60 |
| DWL WHITE 228 LED 12W 60D 930 | Ø228 X 99mm | 1458 lm | 101-131WU-228/12-60 |
| DWL WHITE 228 LED 14W 60D 930 | Ø228 X 99mm | 1701 lm | 101-131WU-228/14-60 |
| DWL WHITE 228 LED 16W 60D 930 | Ø228 X 99mm | 1944 lm | 101-131WU-228/16-60 |
| DWL WHITE 228 LED 18W 60D 930 | Ø228 X 99mm | 2187 lm | 101-131WU-228/18-60 |
| DWL WHITE 228 LED 20W 60D 930 | Ø228 X 99mm | 2505 lm | 101-131WU-228/20-60 |
| DWL WHITE 228 LED 24W 60D 930 | Ø228 X 99mm | 3006 lm | 101-131WU-228/24-60 |
| DWL WHITE 228 LED 26W 60D 930 | Ø228 X 99mm | 3259 lm | 101-131WU-228/26-60 |
| DWL WHITE 228 LED 30W 60D 930 | Ø228 X 99mm | 3762 lm | 101-131WU-228/30-60 |
| DWL WHITE 228 LED 10W 60D 940 | Ø228 X 99mm | 1265 lm | 101-141WU-228/10-60 |
| DWL WHITE 228 LED 12W 60D 940 | Ø228 X 99mm | 1518 lm | 101-141WU-228/12-60 |
| DWL WHITE 228 LED 14W 60D 940 | Ø228 X 99mm | 1771 lm | 101-141WU-228/14-60 |
| DWL WHITE 228 LED 16W 60D 940 | Ø228 X 99mm | 2024 lm | 101-141WU-228/16-60 |
| DWL WHITE 228 LED 18W 60D 940 | Ø228 X 99mm | 2277 lm | 101-141WU-228/18-60 |
| DWL WHITE 228 LED 20W 60D 940 | Ø228 X 99mm | 2579 lm | 101-141WU-228/20-60 |
| DWL WHITE 228 LED 24W 60D 940 | Ø228 X 99mm | 3096 lm | 101-141WU-228/24-60 |
| DWL WHITE 228 LED 26W 60D 940 | Ø228 X 99mm | 3338 lm | 101-141WU-228/26-60 |
| DWL WHITE 228 LED 30W 60D 940 | Ø228 X 99mm | 3852 lm | 101-141WU-228/30-60 |

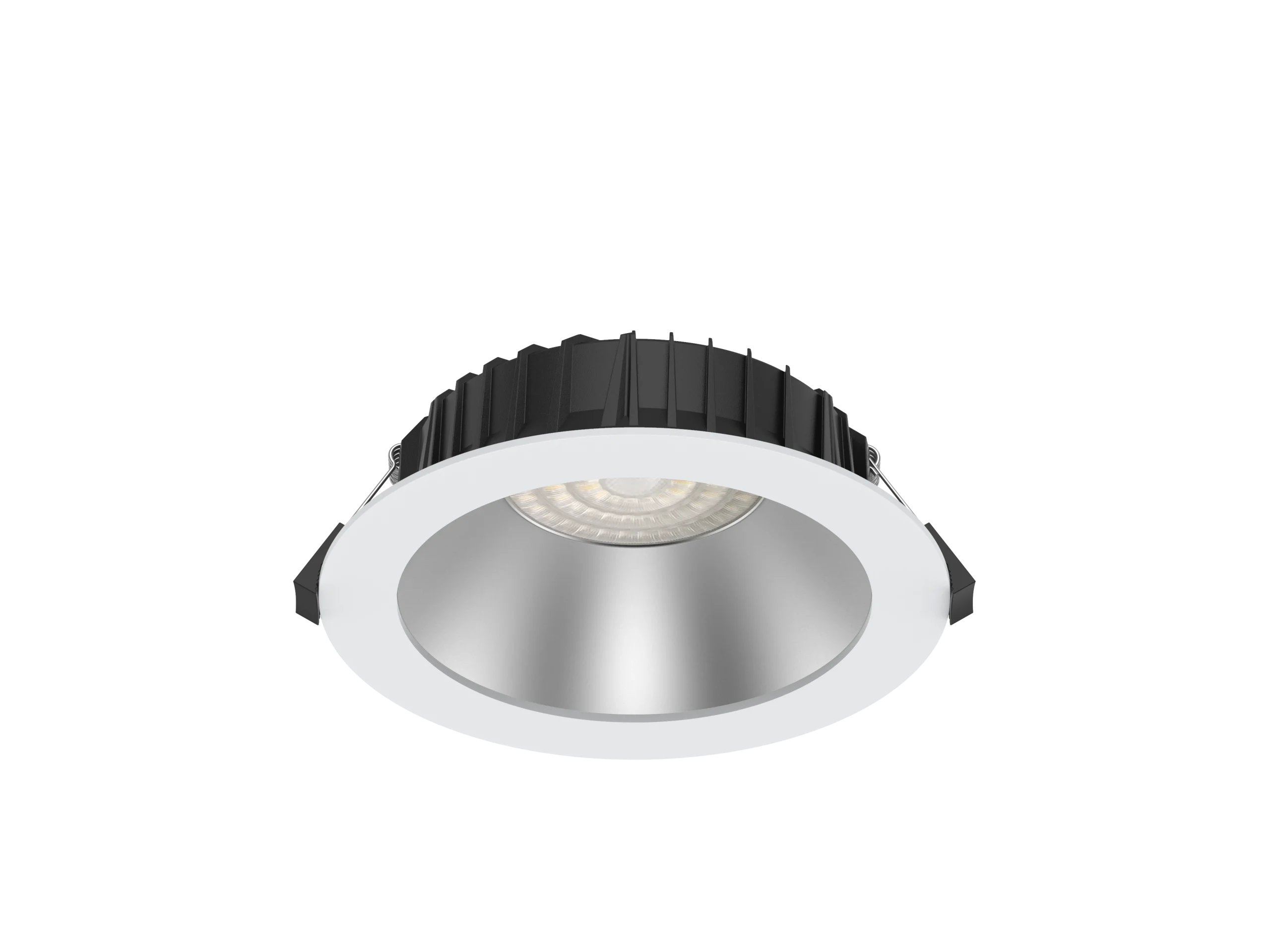

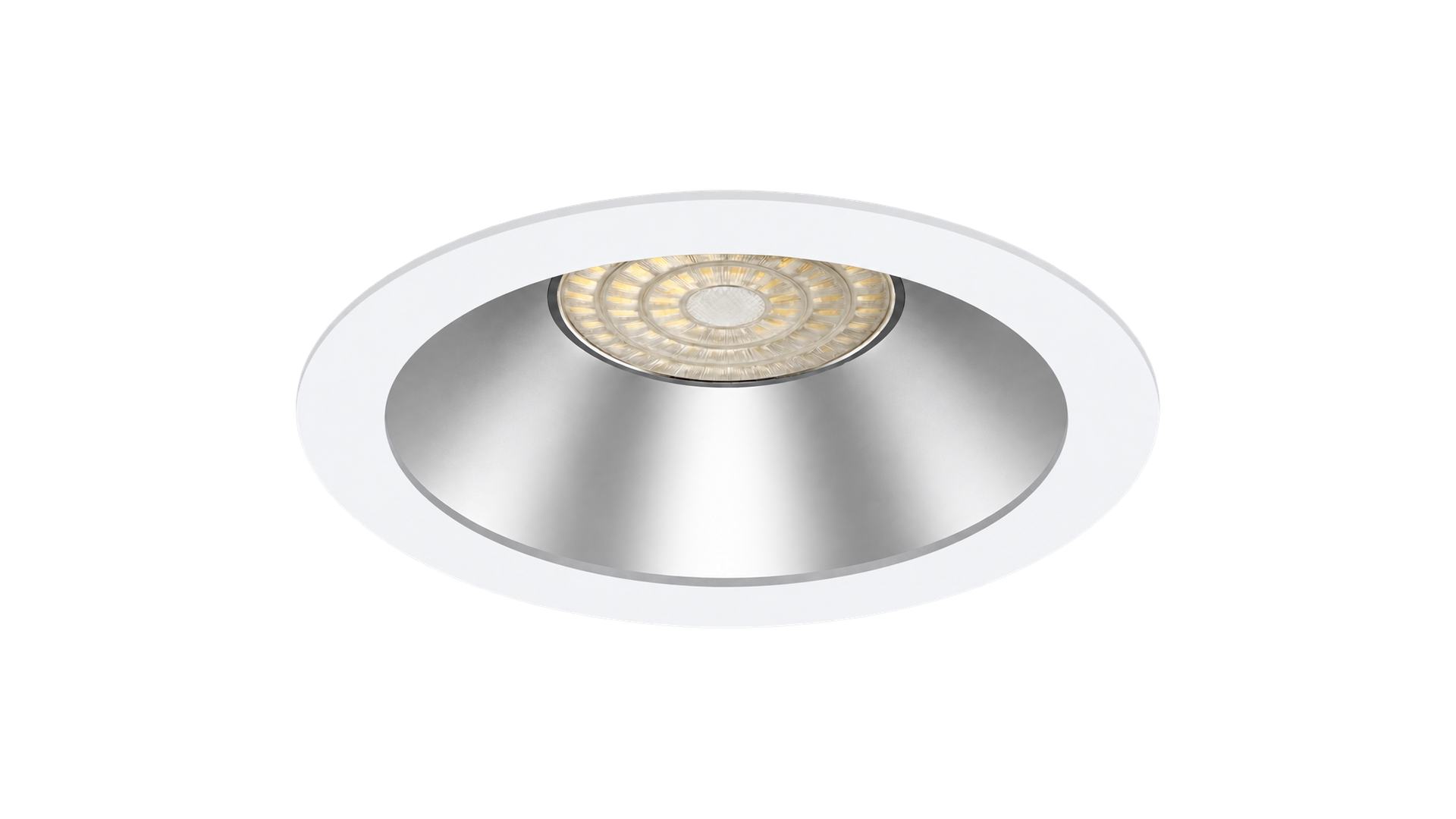

DWL SILVER 60D
| TYPE | DIMENSIONS | LUMEN | CODE |
| DWL SILVER 228 LED 10W 60D 930 | Ø228 X 99mm | 1151 lm | 101-131SU-228/10-60 |
| DWL SILVER 228 LED 12W 60D 930 | Ø228 X 99mm | 1382 lm | 101-131SU-228/12-60 |
| DWL SILVER 228 LED 14W 60D 930 | Ø228 X 99mm | 1612 lm | 101-131SU-228/14-60 |
| DWL SILVER 228 LED 16W 60D 930 | Ø228 X 99mm | 1842 lm | 101-131SU-228/16-60 |
| DWL SILVER 228 LED 18W 60D 930 | Ø228 X 99mm | 2073 lm | 101-131SU-228/18-60 |
| DWL SILVER 228 LED 20W 60D 930 | Ø228 X 99mm | 2374 lm | 101-131SU-228/20-60 |
| DWL SILVER 228 LED 24W 60D 930 | Ø228 X 99mm | 2849 lm | 101-131SU-228/24-60 |
| DWL SILVER 228 LED 26W 60D 930 | Ø228 X 99mm | 3089 lm | 101-131SU-228/26-60 |
| DWL SILVER 228 LED 30W 60D 930 | Ø228 X 99mm | 3566 lm | 101-131SU-228/30-60 |
| DWL SILVER 228 LED 10W 60D 940 | Ø228 X 99mm | 1199 lm | 101-141SU-228/10-60 |
| DWL SILVER 228 LED 12W 60D 940 | Ø228 X 99mm | 1439 lm | 101-141SU-228/12-60 |
| DWL SILVER 228 LED 14W 60D 940 | Ø228 X 99mm | 1678 lm | 101-141SU-228/14-60 |
| DWL SILVER 228 LED 16W 60D 940 | Ø228 X 99mm | 1918 lm | 101-141SU-228/16-60 |
| DWL SILVER 228 LED 18W 60D 940 | Ø228 X 99mm | 2158 lm | 101-141SU-228/18-60 |
| DWL SILVER 228 LED 20W 60D 940 | Ø228 X 99mm | 2444 lm | 101-141SU-228/20-60 |
| DWL SILVER 228 LED 24W 60D 940 | Ø228 X 99mm | 2935 lm | 101-141SU-228/24-60 |
| DWL SILVER 228 LED 26W 60D 940 | Ø228 X 99mm | 3164 lm | 101-141SU-228/26-60 |
| DWL SILVER 228 LED 30W 60D 940 | Ø228 X 99mm | 3651 lm | 101-141SU-228/30-60 |

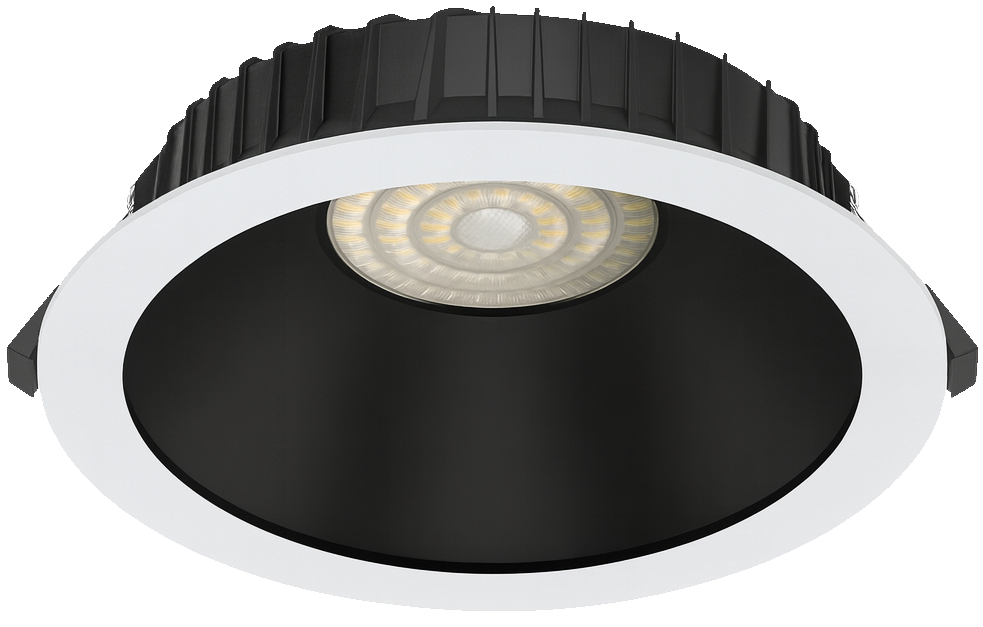

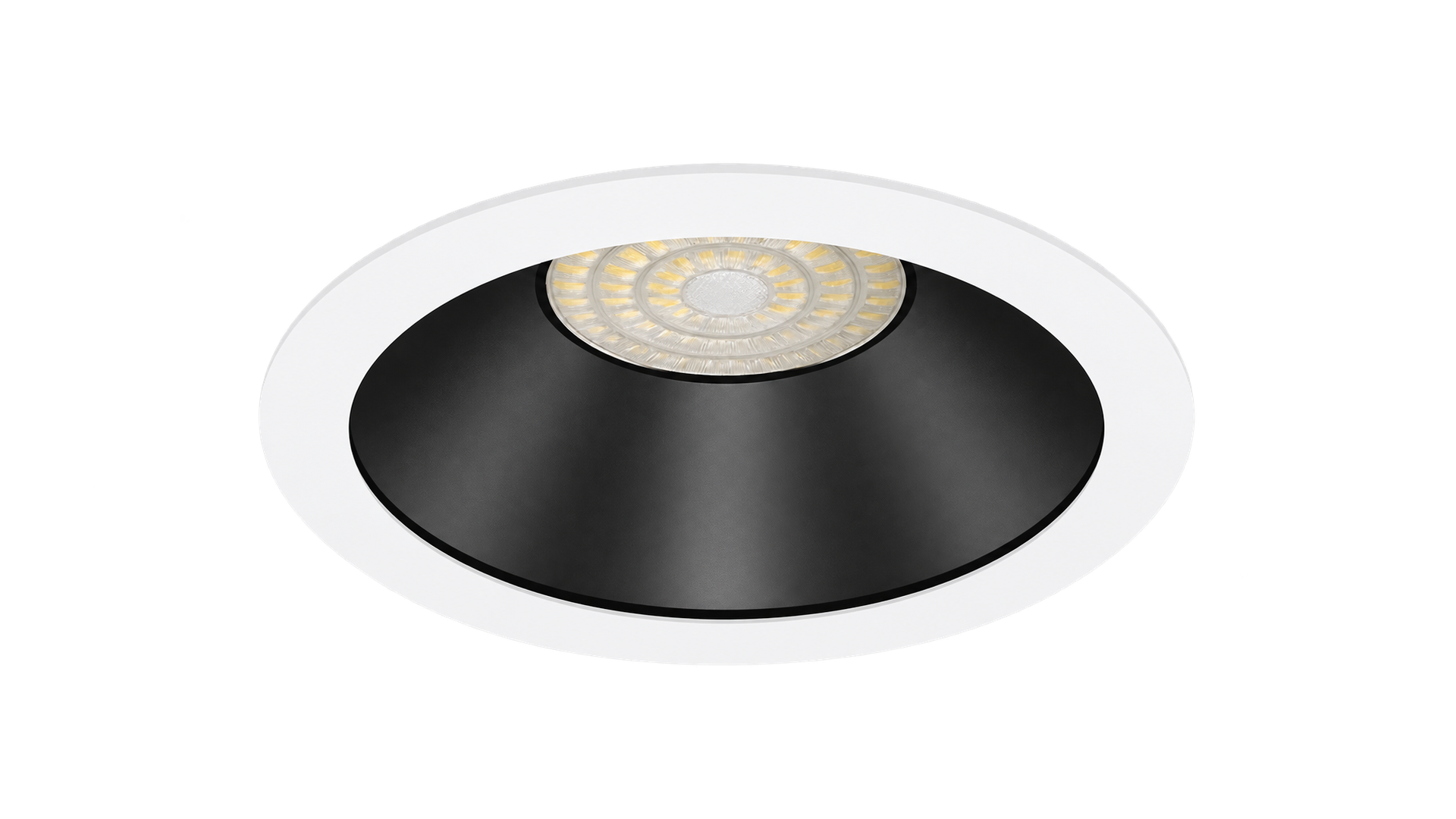

DWL BLACK 60D
| TYPE | DIMENSIONS | LUMEN | CODE |
| DWL BLACK 228 LED 10W 60D 930 | Ø228 X 61mm | 1099 lm | 101-131BU-228/10-60 |
| DWL BLACK 228 LED 12W 60D 930 | Ø228 X 61mm | 1319 lm | 101-131BU-228/12-60 |
| DWL BLACK 228 LED 14W 60D 930 | Ø228 X 61mm | 1539 lm | 101-131BU-228/14-60 |
| DWL BLACK 228 LED 16W 60D 930 | Ø228 X 61mm | 1759 lm | 101-131BU-228/16-60 |
| DWL BLACK 228 LED 18W 60D 930 | Ø228 X 61mm | 1979 lm | 101-131BU-228/18-60 |
| DWL BLACK 228 LED 20W 60D 930 | Ø228 X 61mm | 2267 lm | 101-131BU-228/20-60 |
| DWL BLACK 228 LED 24W 60D 930 | Ø228 X 61mm | 2720 lm | 101-131BU-228/24-60 |
| DWL BLACK 228 LED 26W 60D 930 | Ø228 X 61mm | 2949 lm | 101-131BU-228/26-60 |
| DWL BLACK 228 LED 30W 60D 930 | Ø228 X 61mm | 3404 lm | 101-131BU-228/30-60 |
| DWL BLACK 228 LED 10W 60D 940 | Ø228 X 61mm | 1144 lm | 101-141BU-228/10-60 |
| DWL BLACK 228 LED 12W 60D 940 | Ø228 X 61mm | 1373 lm | 101-141BU-228/12-60 |
| DWL BLACK 228 LED 14W 60D 940 | Ø228 X 61mm | 1602 lm | 101-141BU-228/14-60 |
| DWL BLACK 228 LED 16W 60D 940 | Ø228 X 61mm | 1831 lm | 101-141BU-228/16-60 |
| DWL BLACK 228 LED 18W 60D 940 | Ø228 X 61mm | 2060 lm | 101-141BU-228/18-60 |
| DWL BLACK 228 LED 20W 60D 940 | Ø228 X 61mm | 2334 lm | 101-141BU-228/20-60 |
| DWL BLACK 228 LED 24W 60D 940 | Ø228 X 61mm | 2801 lm | 101-141BU-228/24-60 |
| DWL BLACK 228 LED 26W 60D 940 | Ø228 X 61mm | 3020 lm | 101-141BU-228/26-60 |
| DWL BLACK 228 LED 30W 60D 940 | Ø228 X 61mm | 3486 lm | 101-141BU-228/30-60 |
