    • DWL 172
    DWL 172
    DWL 172
    DWL 172

    click here to see all the
    custom possibilities
    for our products

    Recessed downlight luminaire made of cast aluminum with a recessed polycarbonate lens with beam of light 36°or 60° and reflector for a reduced glare effect in matte white , black or reflective silver color. LED source in IP54 protection. The luminaire comes with a corresponding external power supply. LED light source classification MacAdam3, CRI>80, Photobiological risk group RG1.

    SUPPLY230 V
    IP CODEIP54/IP40
    IK PROTECTIONIK06
    ELECTRICALPROTECTIONCLASSII
    SDCM<3
    EFFICIENCYup to 128m/W (Silver 60°)
    COLOUR RENDERING INDEX>80
    LED LIFESPANL90B10 60000h 35°C
    POWER FACTOR0.95
    UGR<17(36° i 60°)
    OPTICS36° and 60° and MAT
    OPTICS MATERIALPMMA
    MATERIAL OF BODYALUMINIUM
    MOUNTING VERSIONRECESSED
    CEILING CUTOUT150-165mm
    DOWNLOADREMOVAL INSTRUCTION…

    DWL WHITE 36D

    TYPEDIMENSIONSLUMENCODE
    DWL WHITE 172 LED 10W 36D 830Ø172 X 90mm990 lm101-131WU-172/10-36
    DWL WHITE 172 LED 16W 36D 830Ø172 X 90mm1555 lm101-131WU-172/16-36
    DWL WHITE 172 LED 20W 36D 830Ø172 X 90mm2070 lm101-131WU-172/20-36
    DWL WHITE 172 LED 24W 36D 830Ø172 X 90mm2332 lm101-131WU-172/24-36
    DWL WHITE 172 LED 28W 36D 830Ø172 X 90mm2721 lm101-131WU-172/28-36
    DWL WHITE 172 LED 10W 36D 840Ø172 X 90mm1026 lm101-141WU-172/10-36
    DWL WHITE 172 LED 16W 36D 840Ø172 X 90mm1612 lm101-141WU-172/16-36
    DWL WHITE 172 LED 20W 36D 840Ø172 X 90mm2160 lm101-141WU-172/20-36
    DWL WHITE 172 LED 24W 36D 840Ø172 X 90mm2376 lm101-141WU-172/24-36
    DWL WHITE 172 LED 28W 36D 840Ø172 X 90mm2822 lm101-141WU-172/28-36

    DWL WHITE 60D

    TYPEDIMENSIONSLUMENCODE
    DWL WHITE 172 LED 10W 60D 830Ø172 X 90mm1035 lm101-131WU-172/10-60
    DWL WHITE 172 LED 16W 60D 830Ø172 X 90mm1656 lm101-131WU-172/16-60
    DWL WHITE 172 LED 20W 60D 830Ø172 X 90mm2250 lm101-131WU-172/20-60
    DWL WHITE 172 LED 24W 60D 830Ø172 X 90mm2484 lm101-131WU-172/24-60
    DWL WHITE 172 LED 28W 60D 830Ø172 X 90mm2898 lm101-131WU-172/28-60
    DWL WHITE 172 LED 10W 60D 840Ø172 X 90mm1053 lm101-141WU-172/10-60
    DWL WHITE 172 LED 16W 60D 840Ø172 X 90mm1685 lm101-141WU-172/16-60
    DWL WHITE 172 LED 20W 60D 840Ø172 X 90mm2340 lm101-141WU-172/20-60
    DWL WHITE 172 LED 24W 60D 840Ø172 X 90mm2527 lm101-141WU-172/24-60
    DWL WHITE 172 LED 28W 60D 840Ø172 X 90mm2948 lm101-141WU-172/28-60

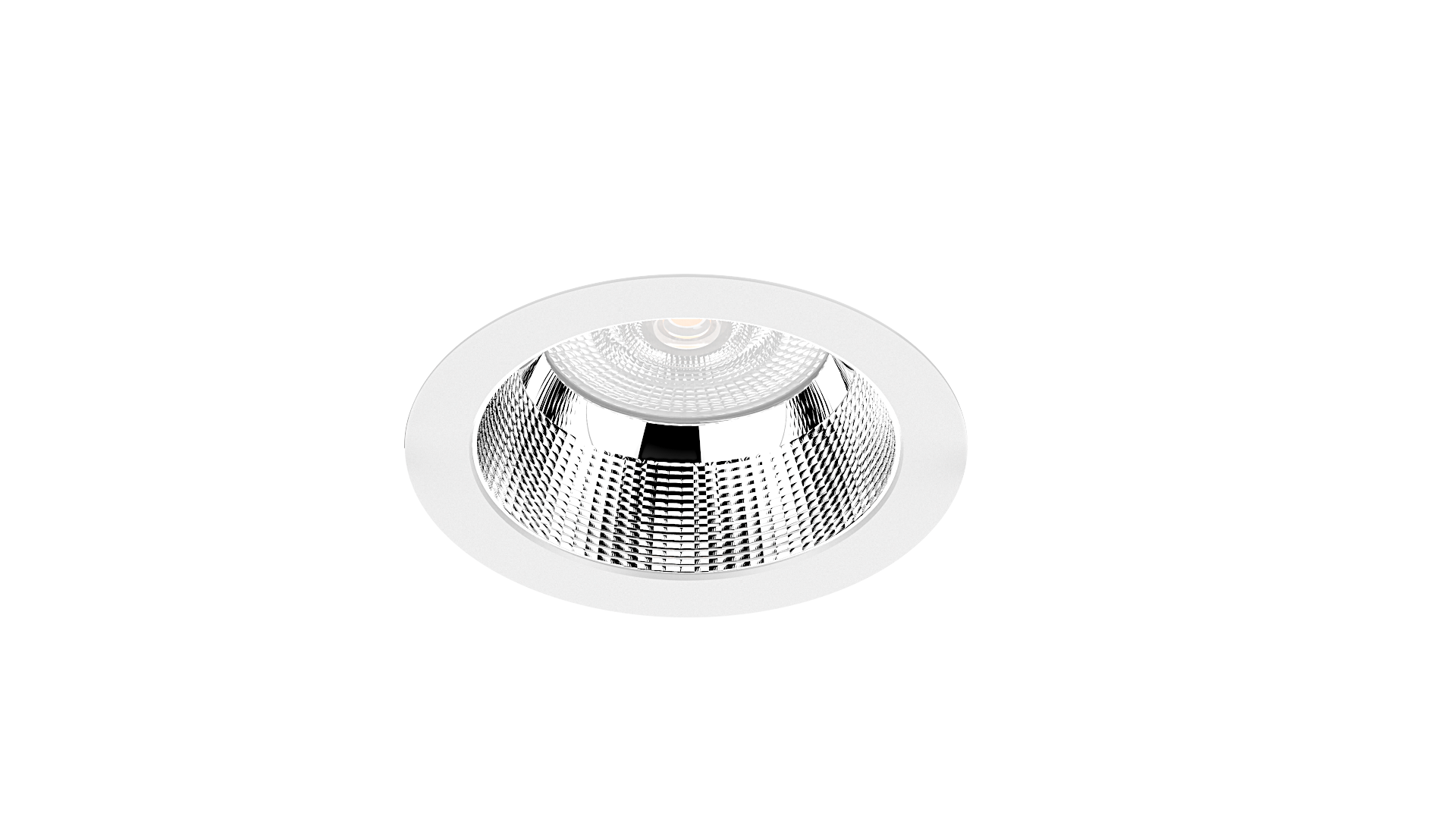

    DWL SILVER 36D

    TYPEDIMENSIONSLUMENCODE
    DWL SILVER 172 LED 10W 36D 830Ø172 X 90mm1100 lm101-131SU-172/10-36
    DWL SILVER 172 LED 16W 36D 830Ø172 X 90mm1728 lm101-131SU-172/16-36
    DWL SILVER 172 LED 20W 36D 830Ø172 X 90mm2300 lm101-131SU-172/20-36
    DWL SILVER 172 LED 24W 36D 830Ø172 X 90mm2592 lm101-131SU-172/24-36
    DWL SILVER 172 LED 28W 36D 830Ø172 X 90mm3024 lm101-131SU-172/28-36
    DWL SILVER 172 LED 10W 36D 840Ø172 X 90mm1140 lm101-141SU-172/10-36
    DWL SILVER 172 LED 16W 36D 840Ø172 X 90mm1792 lm101-141SU-172/16-36
    DWL SILVER 172 LED 20W 36D 840Ø172 X 90mm2400 lm101-141SU-172/20-36
    DWL SILVER 172 LED 24W 36D 840Ø172 X 90mm2640 lm101-141SU-172/24-36
    DWL SILVER 172 LED 28W 36D 840Ø172 X 90mm3136 lm101-141SU-172/28-36

    DWL SILVER 60D

    TYPEDIMENSIONSLUMENCODE
    DWL SILVER 172 LED 10W 60D 830Ø172 X 90mm1150 lm101-131SU-172/10-60
    DWL SILVER 172 LED 16W 60D 830Ø172 X 90mm1840 lm101-131SU-172/16-60
    DWL SILVER 172 LED 20W 60D 830Ø172 X 90mm2500 lm101-131SU-172/20-60
    DWL SILVER 172 LED 24W 60D 830Ø172 X 90mm2760 lm101-131SU-172/24-60
    DWL SILVER 172 LED 28W 60D 830Ø172 X 90mm3220 lm101-131SU-172/28-60
    DWL SILVER 172 LED 10W 60D 840Ø172 X 90mm1170 lm101-141SU-172/10-60
    DWL SILVER 172 LED 16W 60D 840Ø172 X 90mm1872 lm101-141SU-172/16-60
    DWL SILVER 172 LED 20W 60D 840Ø172 X 90mm2600 lm101-141SU-172/20-60
    DWL SILVER 172 LED 24W 60D 840Ø172 X 90mm2808 lm101-141SU-172/24-60
    DWL SILVER 172 LED 28W 60D 840Ø172 X 90mm3276 lm101-141SU-172/28-60

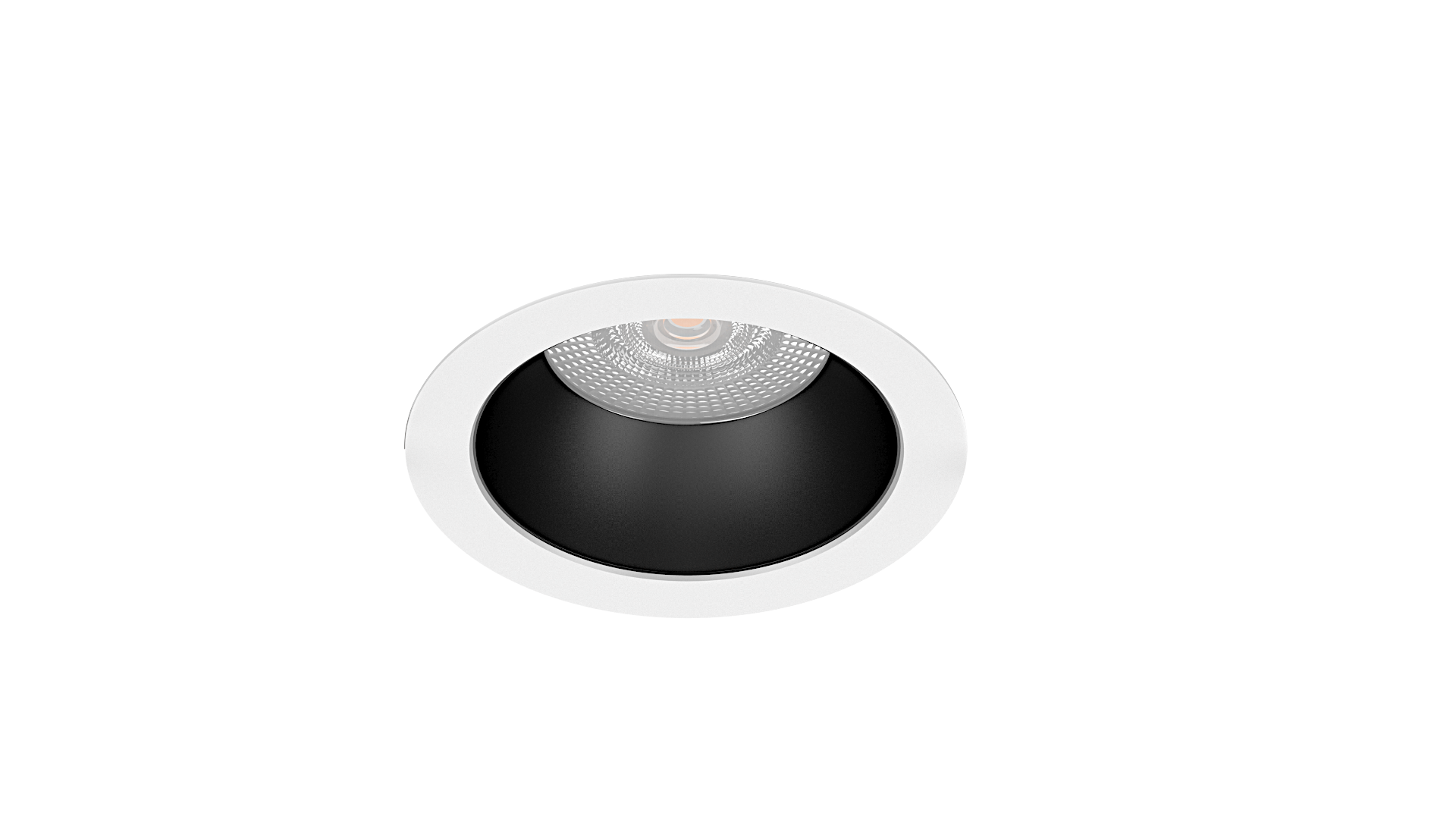

    DWL BLACK 36D

    TYPEDIMENSIONSLUMENCODE
    DWL BLACK 172 LED 10W 36D 830Ø172 X 90mm770 lm101-131BU-172/10-36
    DWL BLACK 172 LED 16W 36D 830Ø172 X 90mm1210 lm101-131BU-172/16-36
    DWL BLACK 172 LED 20W 36D 830Ø172 X 90mm1610 lm101-131BU-172/20-36
    DWL BLACK 172 LED 24W 36D 830Ø172 X 90mm1814 lm101-131BU-172/24-36
    DWL BLACK 172 LED 28W 36D 830Ø172 X 90mm2117 lm101-131BU-172/28-36
    DWL BLACK 172 LED 10W 36D 840Ø172 X 90mm798 lm101-141BU-172/10-36
    DWL BLACK 172 LED 16W 36D 840Ø172 X 90mm1254 lm101-141BU-172/16-36
    DWL BLACK 172 LED 20W 36D 840Ø172 X 90mm1680 lm101-141BU-172/20-36
    DWL BLACK 172 LED 24W 36D 840Ø172 X 90mm1848 lm101-141BU-172/24-36
    DWL BLACK 172 LED 28W 36D 840Ø172 X 90mm2195 lm101-141BU-172/28-36

    DWL BLACK 60D

    TYPEDIMENSIONSLUMENCODE
    DWL BLACK 172 LED 10W 60D 830Ø172 X 90mm805 lm101-131BU-172/10-60
    DWL BLACK 172 LED 16W 60D 830Ø172 X 90mm1288 lm101-131BU-172/16-60
    DWL BLACK 172 LED 20W 60D 830Ø172 X 90mm1750 lm101-131BU-172/20-60
    DWL BLACK 172 LED 24W 60D 830Ø172 X 90mm1932 lm101-131BU-172/24-60
    DWL BLACK 172 LED 28W 60D 830Ø172 X 90mm2254 lm101-131BU-172/28-60
    DWL BLACK 172 LED 10W 60D 840Ø172 X 90mm819 lm101-141BU-172/10-60
    DWL BLACK 172 LED 16W 60D 840Ø172 X 90mm1310 lm101-141BU-172/16-60
    DWL BLACK 172 LED 20W 60D 840Ø172 X 90mm1820 lm101-141BU-172/20-60
    DWL BLACK 172 LED 24W 60D 840Ø172 X 90mm1966 lm101-141BU-172/24-60
    DWL BLACK 172 LED 28W 60D 840Ø172 X 90mm2293 lm101-141BU-172/28-60

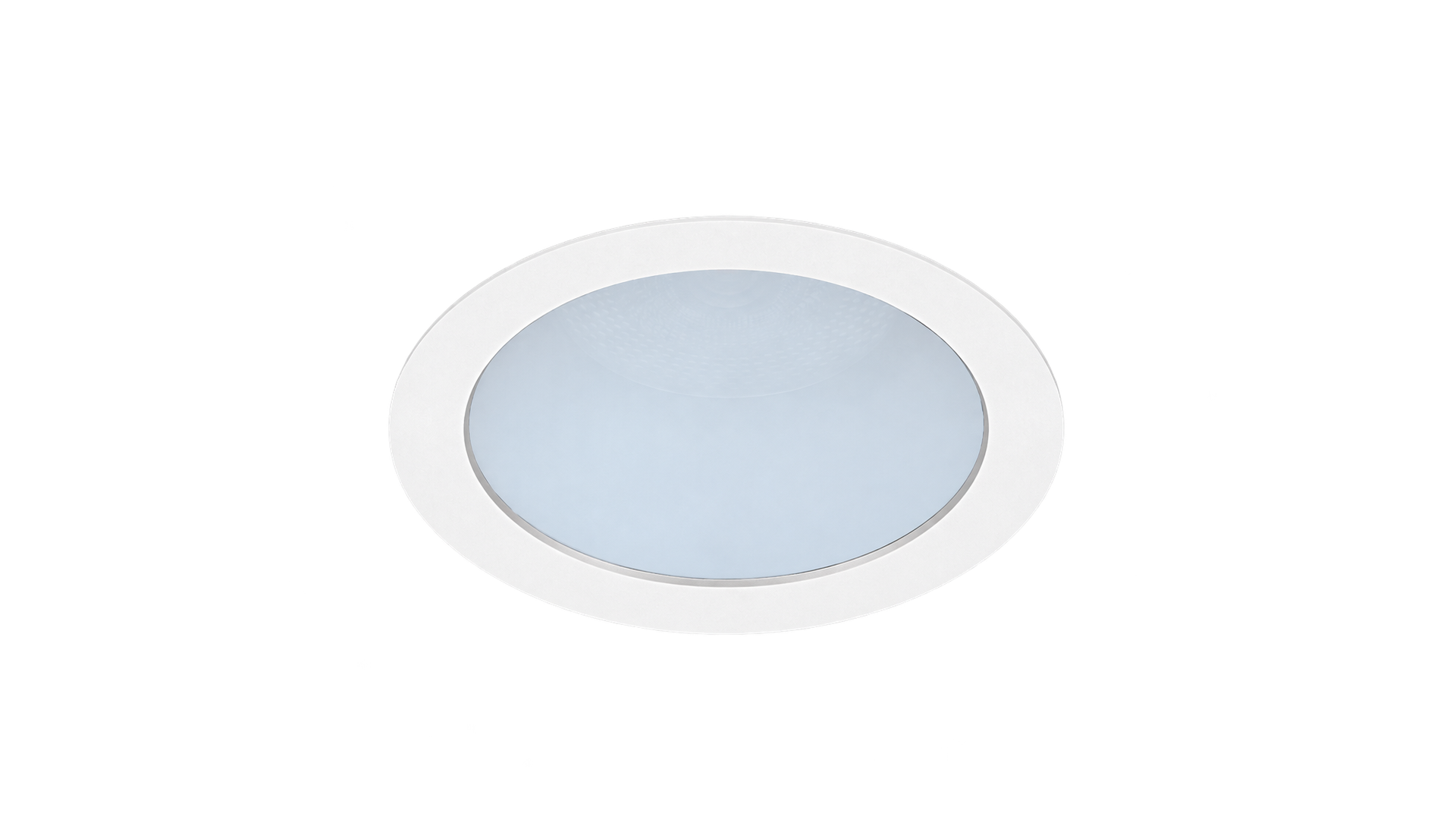

    DWL MAT

    TYPEDIMENSIONSLUMENCODE
    DWL MAT 172 LED 10W 830Ø172 X 90mm1003 lm101-131MU-172/10-60
    DWL MAT 172 LED 16W 830Ø172 X 90mm1606 lm101-131MU-172/16-60
    DWL MAT 172 LED 20W 830Ø172 X 90mm2182 lm101-131MU-172/20-60
    DWL MAT 172 LED 24W 830Ø172 X 90mm2409 lm101-131BU-172/24-60
    DWL MAT 172 LED 28W 830Ø172 X 90mm2811 lm101-131MU-172/28-60
    DWL MAT 172 LED 10W 840Ø172 X 90mm1021 lm101-141MU-172/10-60
    DWL MAT 172 LED 16W 840Ø172 X 90mm1634 lm101-141MU-172/16-60
    DWL MAT 172 LED 20W 840Ø172 X 90mm2269 lm101-141MU-172/20-60
    DWL MAT 172 LED 24W 840Ø228 X 99mm2451 lm101-141MU-172/24-60
    DWL MAT 172 LED 28W 840Ø228 X 99mm2859 lm101-141MU-172/28-60

    Request technical documentation
