Recessed spotlight made of sheet steel, plastic coated in white or black, with built-in linear PMMA lenses that ensure a light beam of 80 ° and black or white recessed polycarbonate reflectors to minimize the glare effect (UGR). LED light source are selfcooling linear modules C efficinecy, MacAdam3, CRI>80, Photobiological safety RG1. Neccesery to inlude an external driver, that can power more then just 1 luminaire. The luminaire meets all standards necessary for obtaining the CE marking. 6-year warranty.
| SUPPLY | 12, 24, 36V |
| IP CODE | IP40 |
| ELECTRICAL PROTECTION CLASS | I |
| SDCM | <3 |
| EFFICIENCY | |
| COLOUR RENDERING INDEX | CRI >80 |
| LED LIFESPAN | L90B10 60000h 35°C |
| POWER FACTOR | / |
| UGR | <16 |
| OPTICS | LENS 80° |
| OPTICS MATERIAL | PMMA |
| MATERIAL OF BODY | STEEL |
| MOUNTING VERSION | RECESSED (USL) |

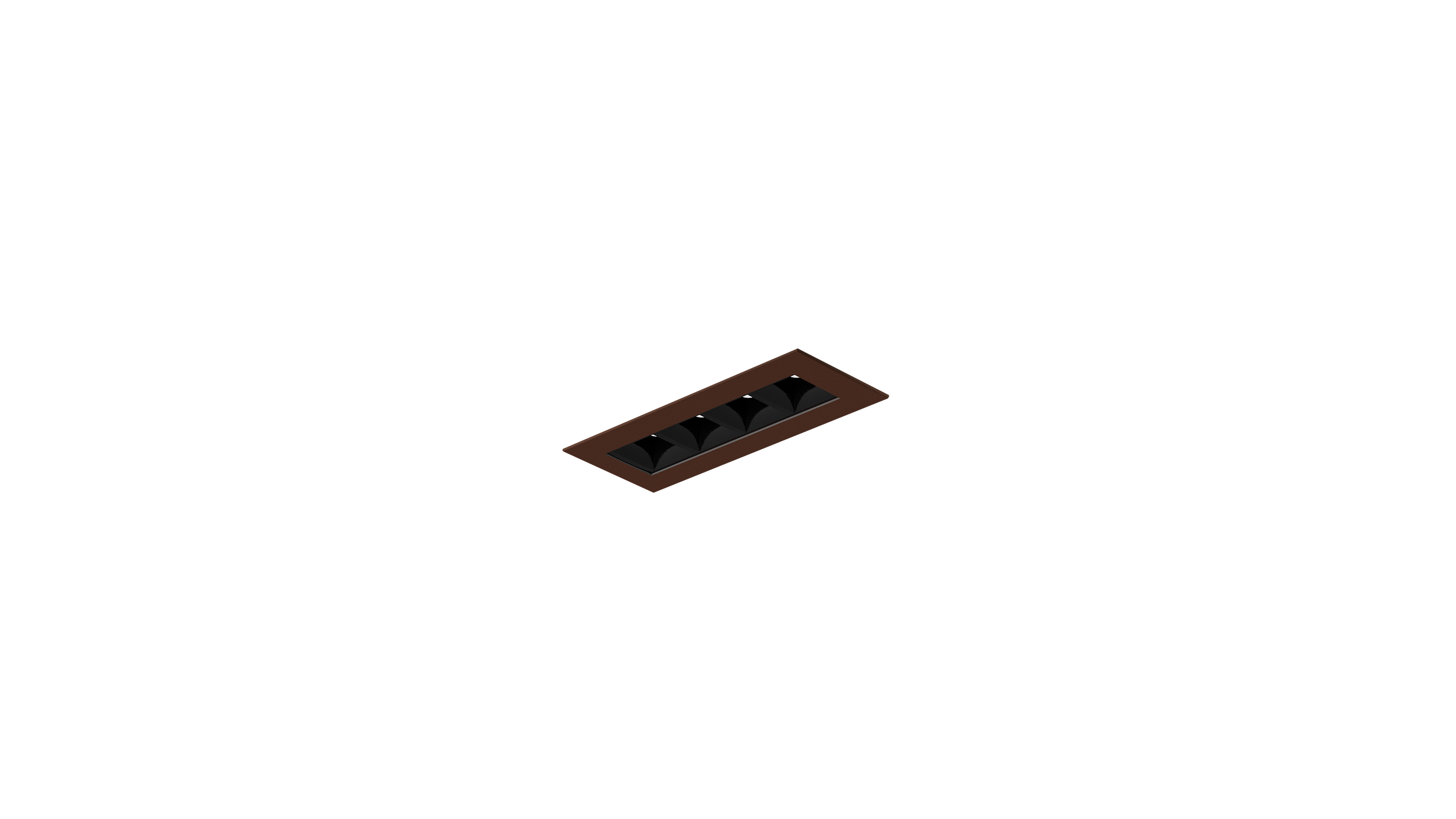

DL 1xB
| TYPE | DIMENSIONS | LUMEN | CODE |
DL 1XB 200×79 LED 4,4W 830 | 200 x 79 x 35mm | 685 lm | 208-130WD-B-200×79/4,4 |
| DL 1XB 200×79 LED 4,4W 840 | 200 x 79 x 35mm | 728 lm | 208-140WD-B-200×79/4,4 |

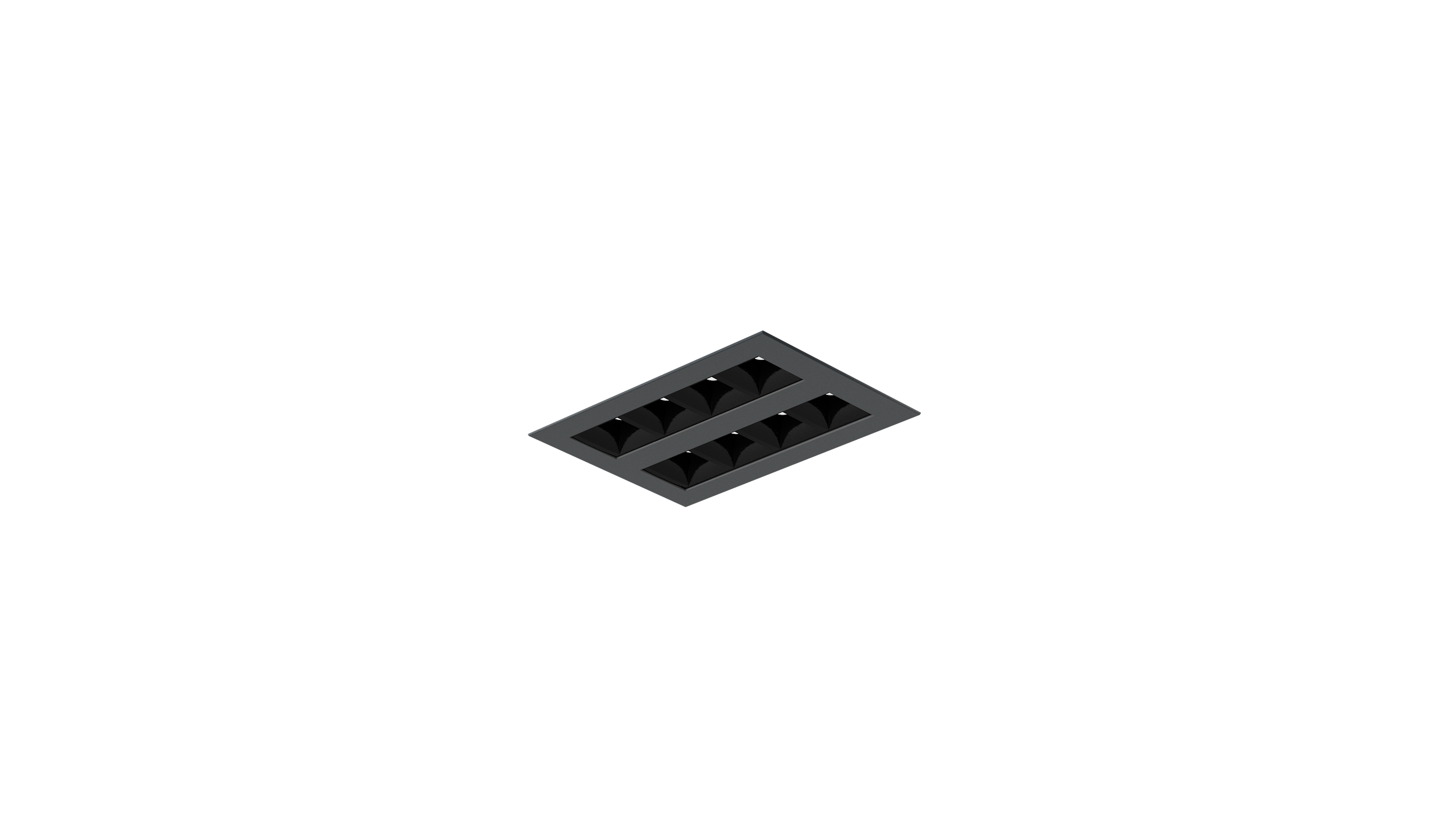

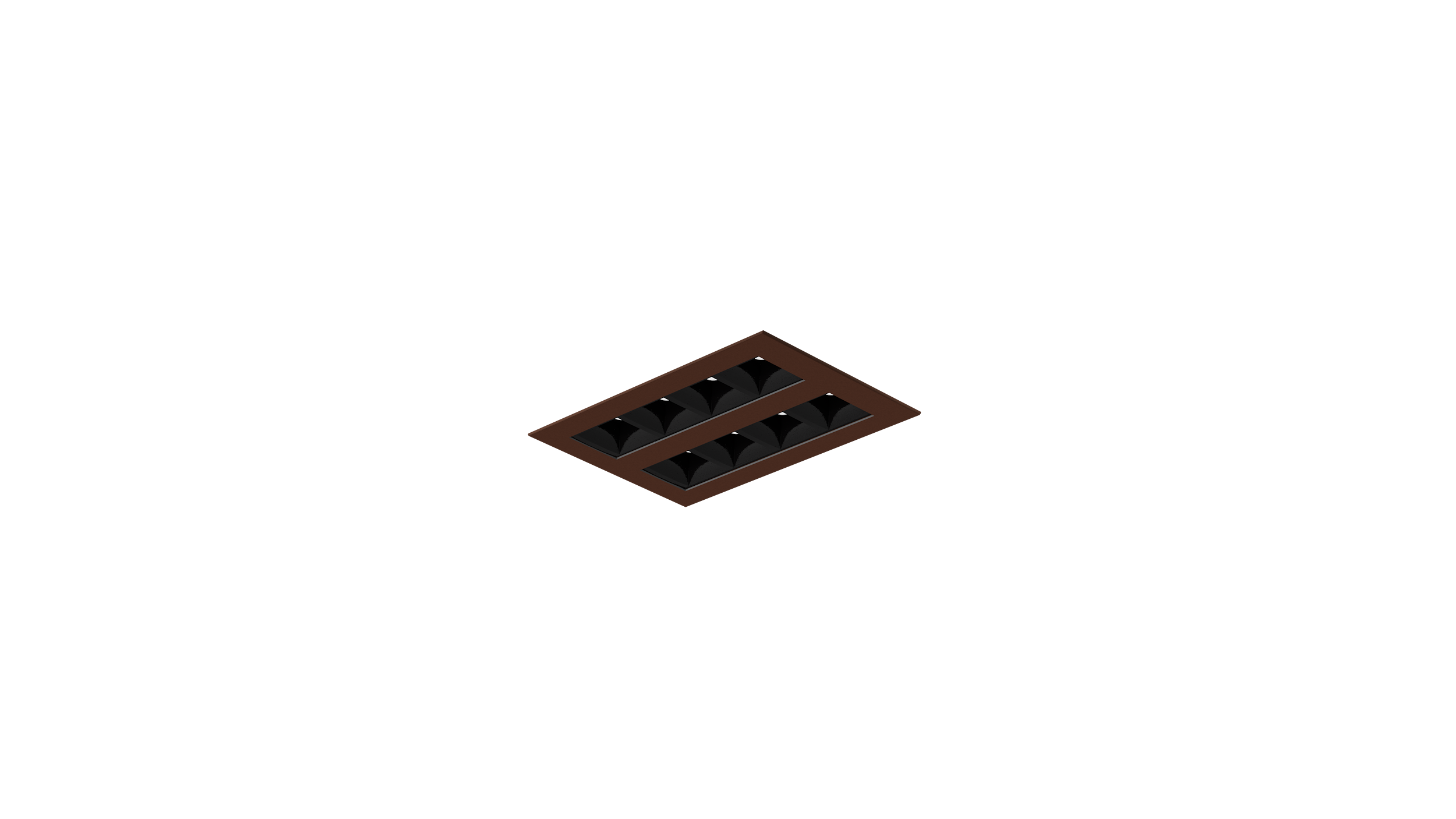

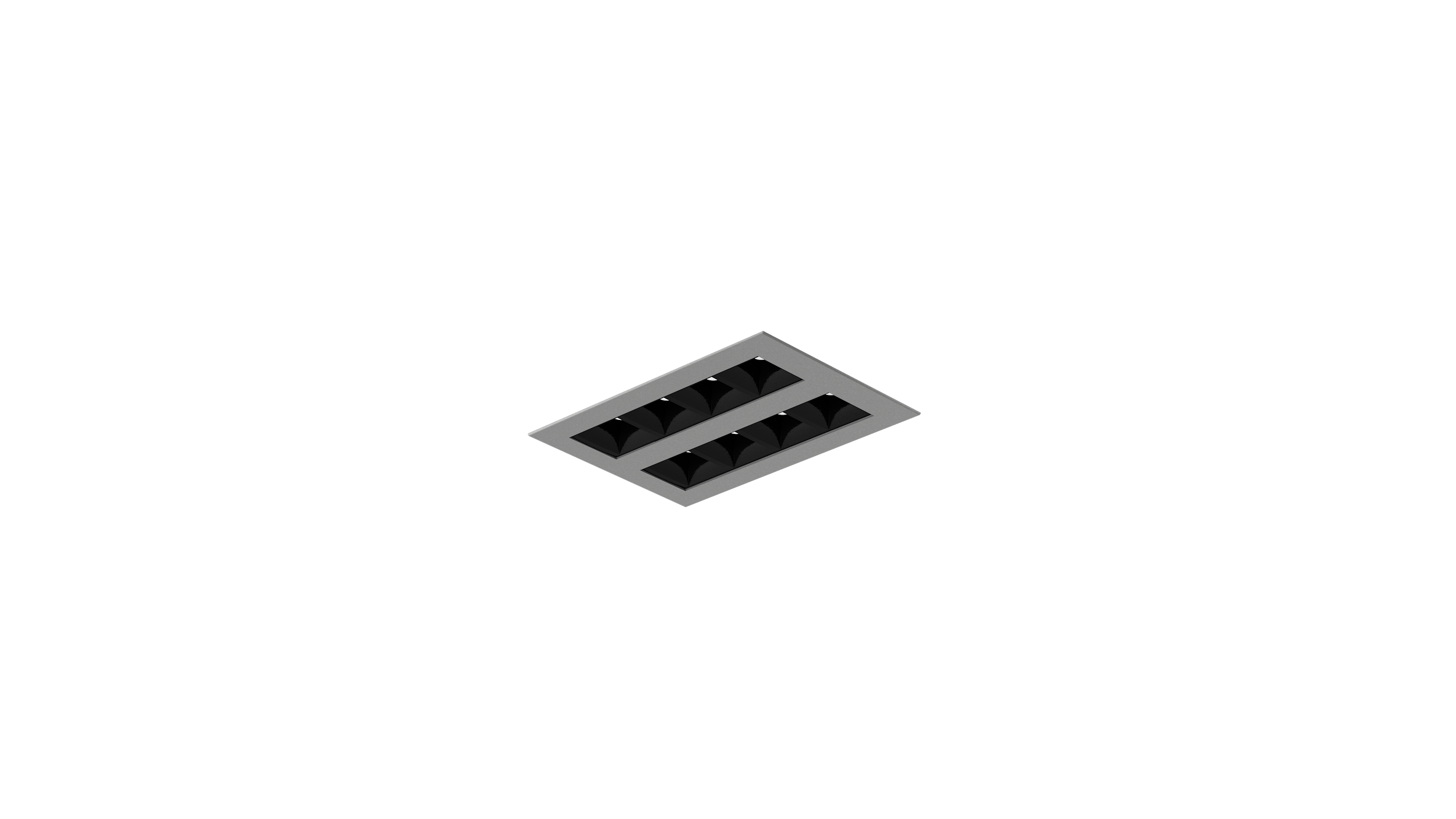

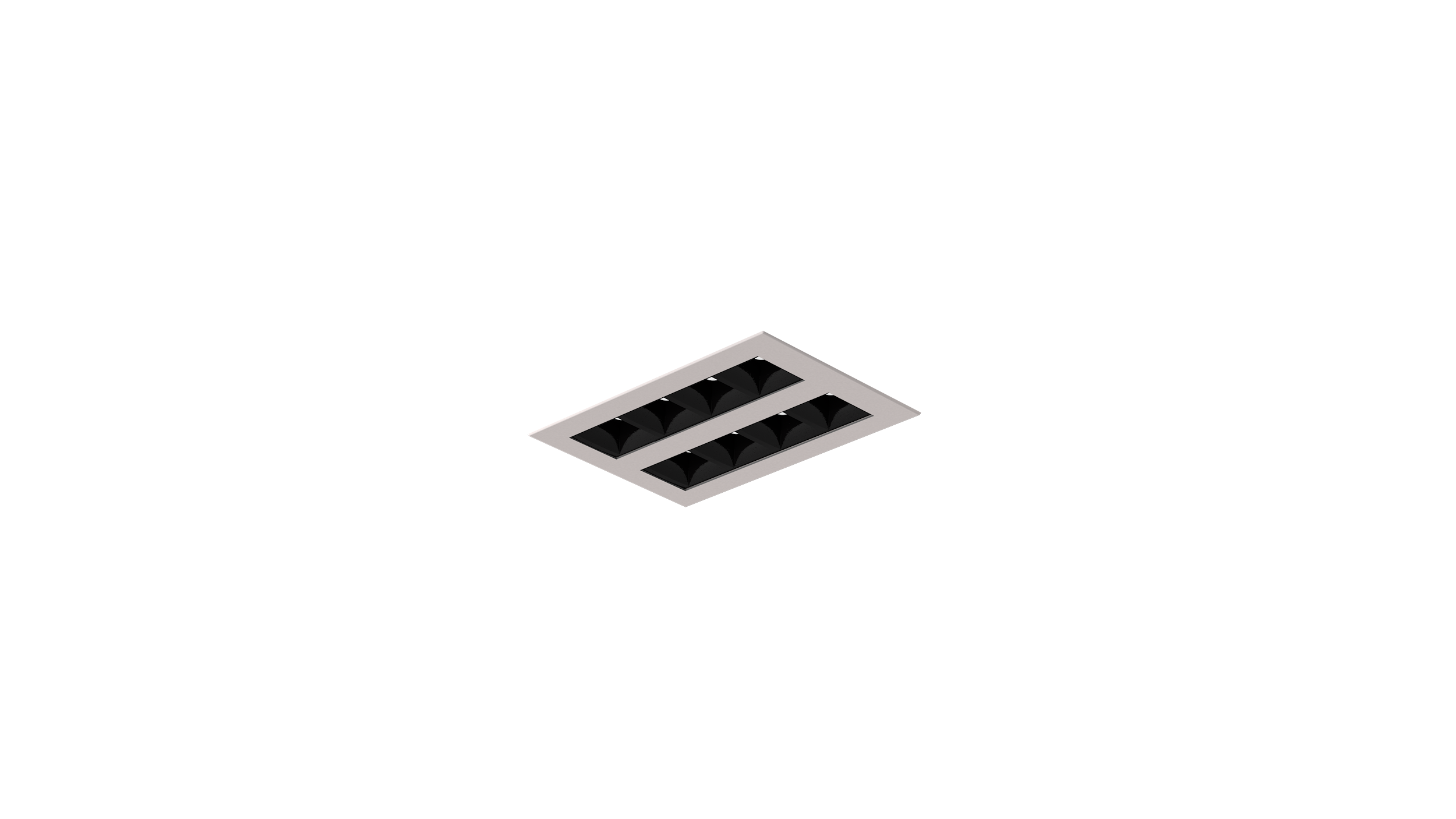

DL 2xB
| TYPE | DIMENSIONS | LUMEN | CODE |
| DL 2XB 200×135 LED 8,8W 830 | 200 x 135 x 35mm | 1371 lm | 208-130WD-B-200×135/8,8 |
| DL 2XB 200×135 LED 8,8W 840 | 200 x 135 x 35mm | 1457 lm | 208-140WD-B-200×135/8,8 |

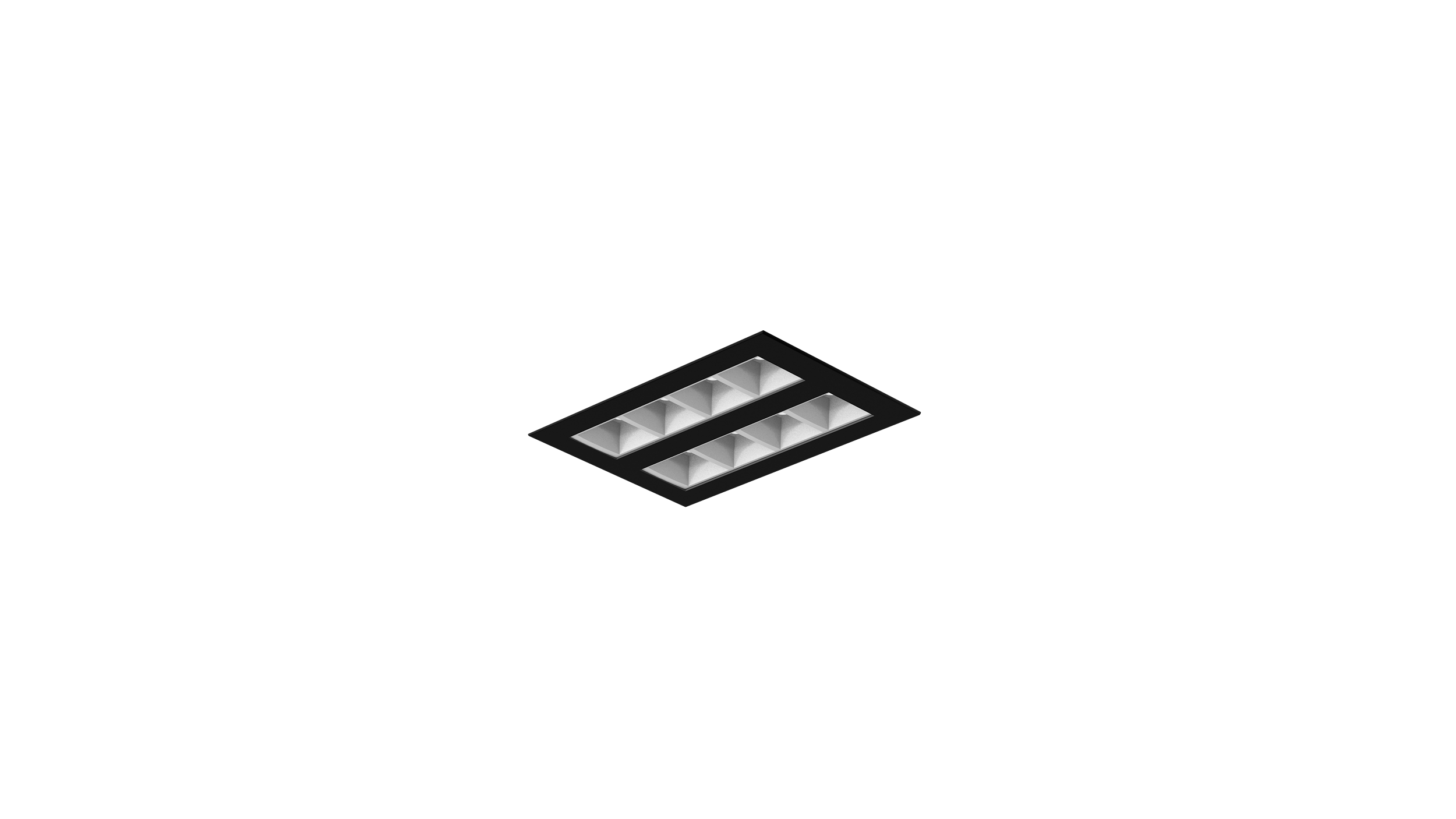

DL 2xW
| TYPE | DIMENSIONS | LUMEN | CODE |
| DL 2XW 200×135 LED 8,8W 830 | 200 x 135 x 35mm | 1518 lm | 208-130WD-W-200×135/8,8 |
| DL 2XW 200×135 LED 8,8W 840 | 200 x 135 x 35mm | 1613 lm | 208-140WD-W-200×135/8,8 |

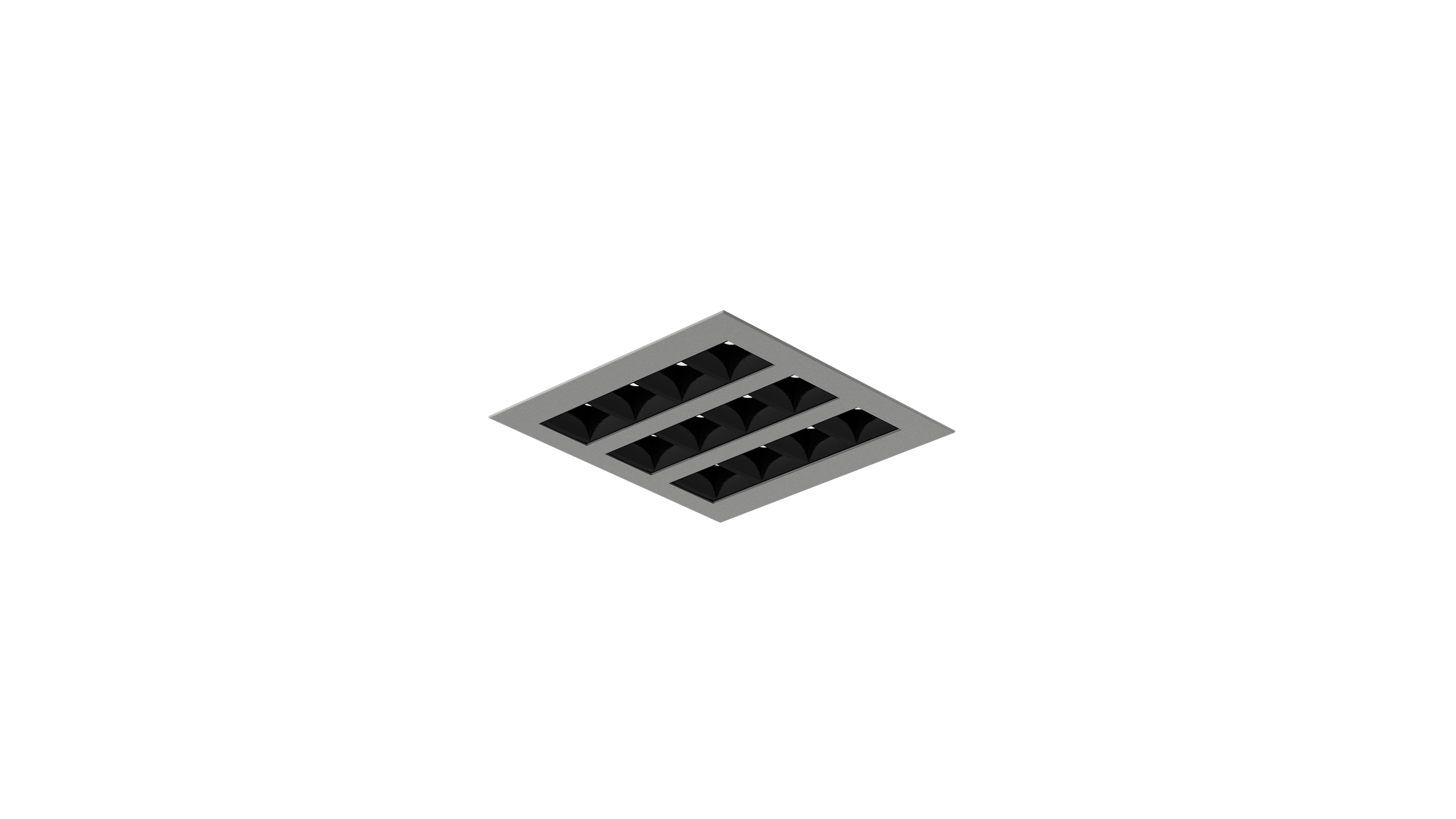

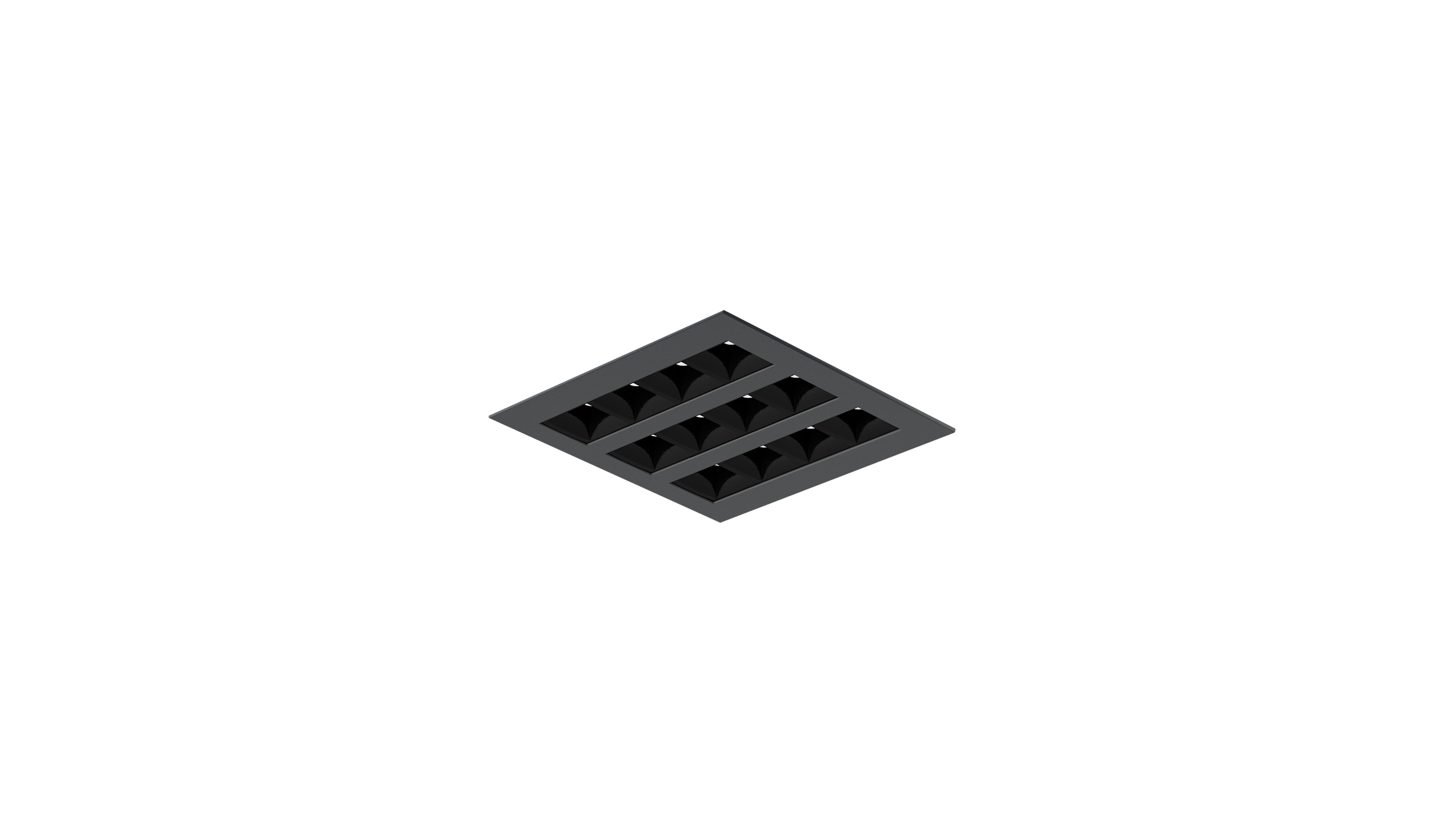

DL 3xB
| TYPE | DIMENSIONS | LUMEN | CODE |
| DL 3XW 200×200 LED 13,2W 830 | 200 x 200 x 35mm | 2056 lm | 208-130WD-B-200×200/13,2 |
| DL 3XW 200×200 LED 13,2W 840 | 200 x 200 x 35mm | 2185 lm | 208-140WD-B-200×200/13,2 |

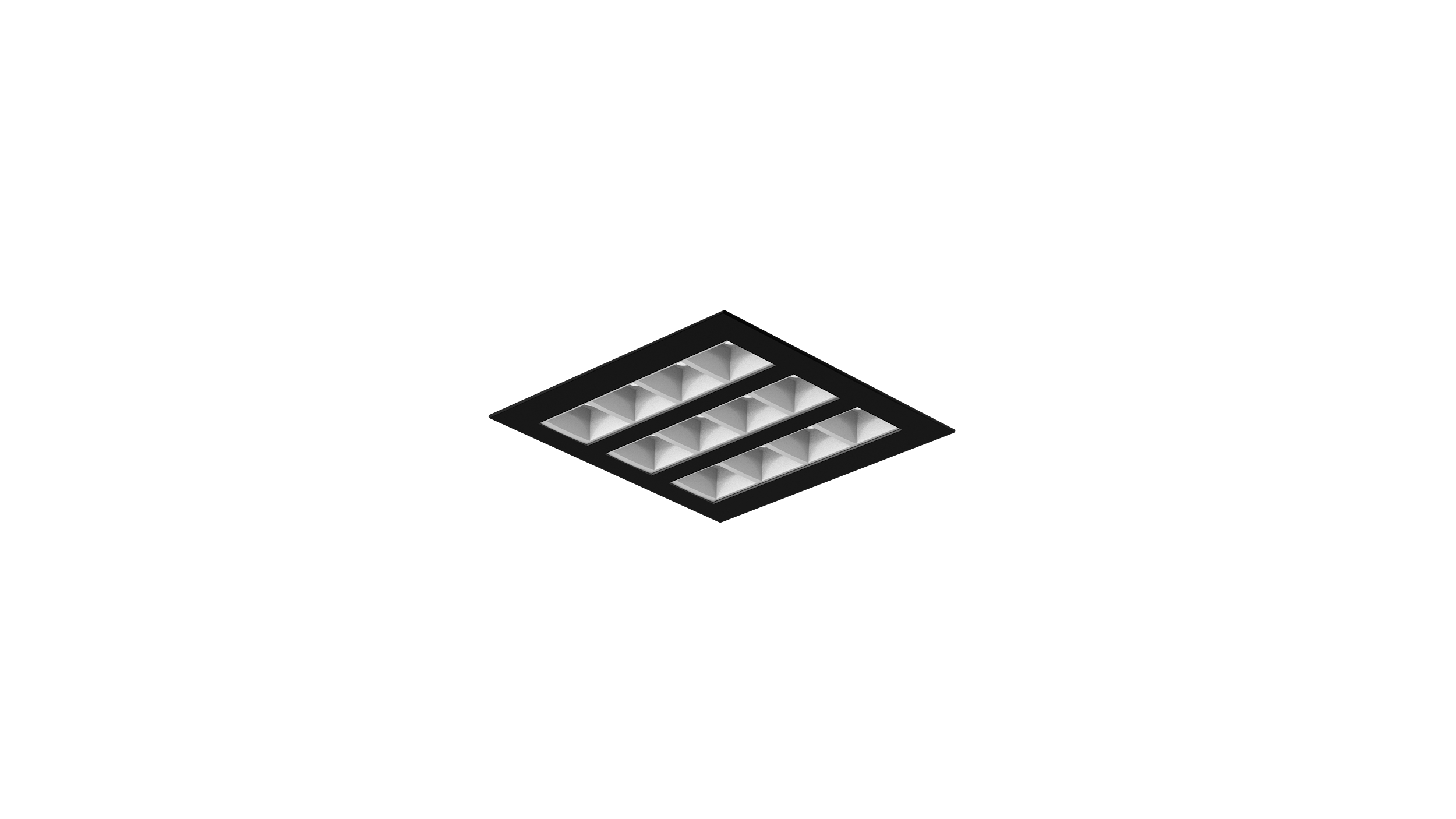

DL 3xW
| TYPE | DIMENSIONS | LUMEN | CODE |
| DL 3XW 200×200 LED 13,2W 830 | 200 x 200 x 35mm | 2277 lm | 208-130WD-W-200×200/13,2 |
| DL 3XW 200×200 LED 13,2W 840 | 200 x 200 x 35mm | 2419 lm | 208-140WD-W-200×200/13,2 |
