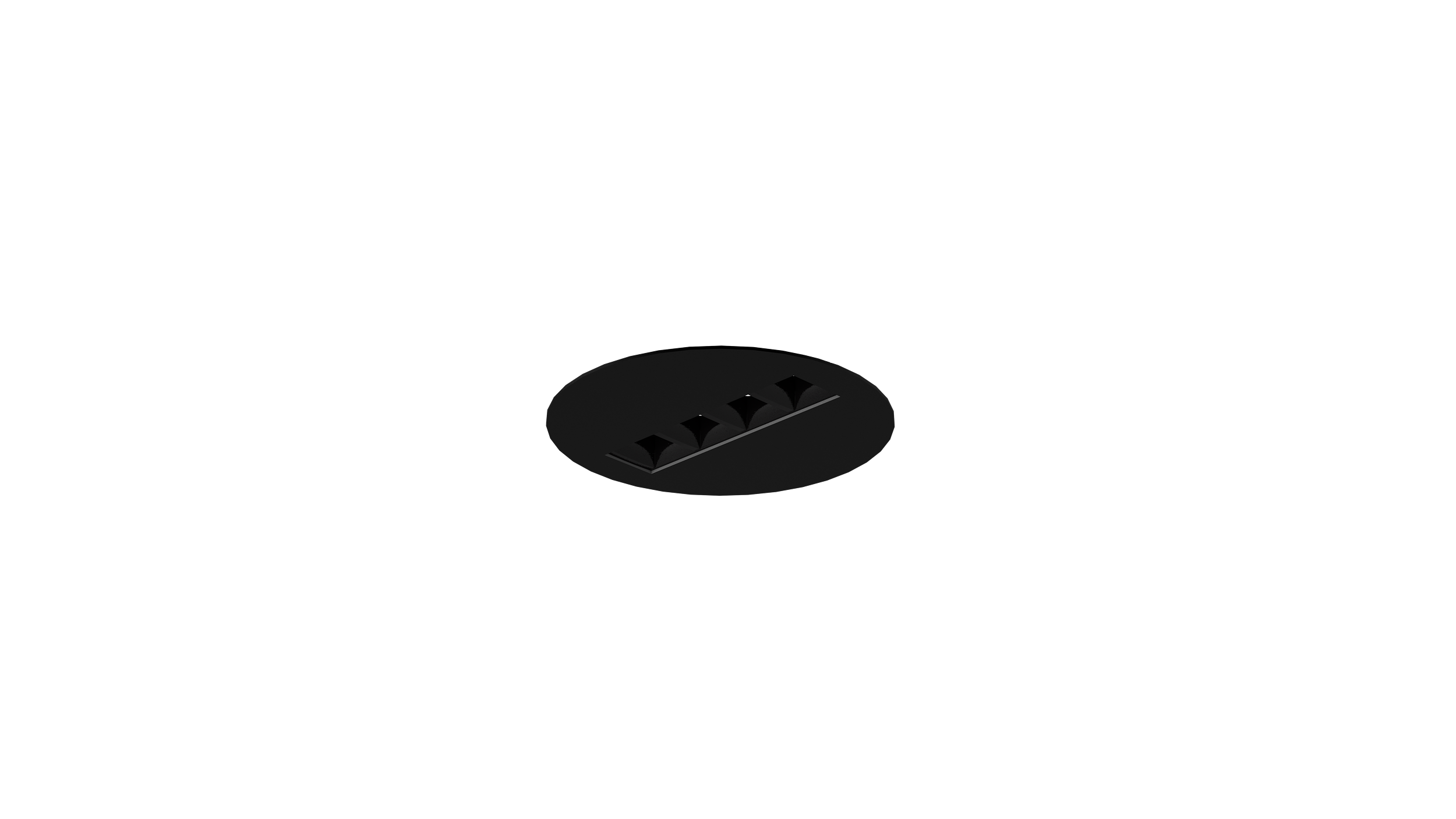

Recessed spotlight made of sheet steel, plastic coated in white or black, with built-in linear PMMA lenses that ensure a light beam of 80 ° and black or white recessed polycarbonate reflectors to minimize the glare effect (UGR). LED light source are selfcooling linear modules C efficinecy, MacAdam3, CRI>80, Photobiological safety RG1. Neccesery to inlude an external driver, that can power more then just 1 luminaire. The luminaire meets all standards necessary for obtaining the CE marking. 6-year warranty.
| SUPPLY | 12, 24, 36, 48V |
| IP CODE | IP40 |
| ELECTRICAL PROTECTION CLASS | I |
| SDCM | <3 |
| EFFICIENCY | |
| COLOUR RENDERING INDEX | CRI >80 |
| LED LIFESPAN | L90B10 60000h 35°C |
| POWER FACTOR | / |
| UGR | <16 |
| OPTICS | LENS 80° |
| OPTICS MATERIAL | PMMA |
| MATERIAL OF BODY | STEEL |
| MOUNTING VERSION | RECESSED (USL) |

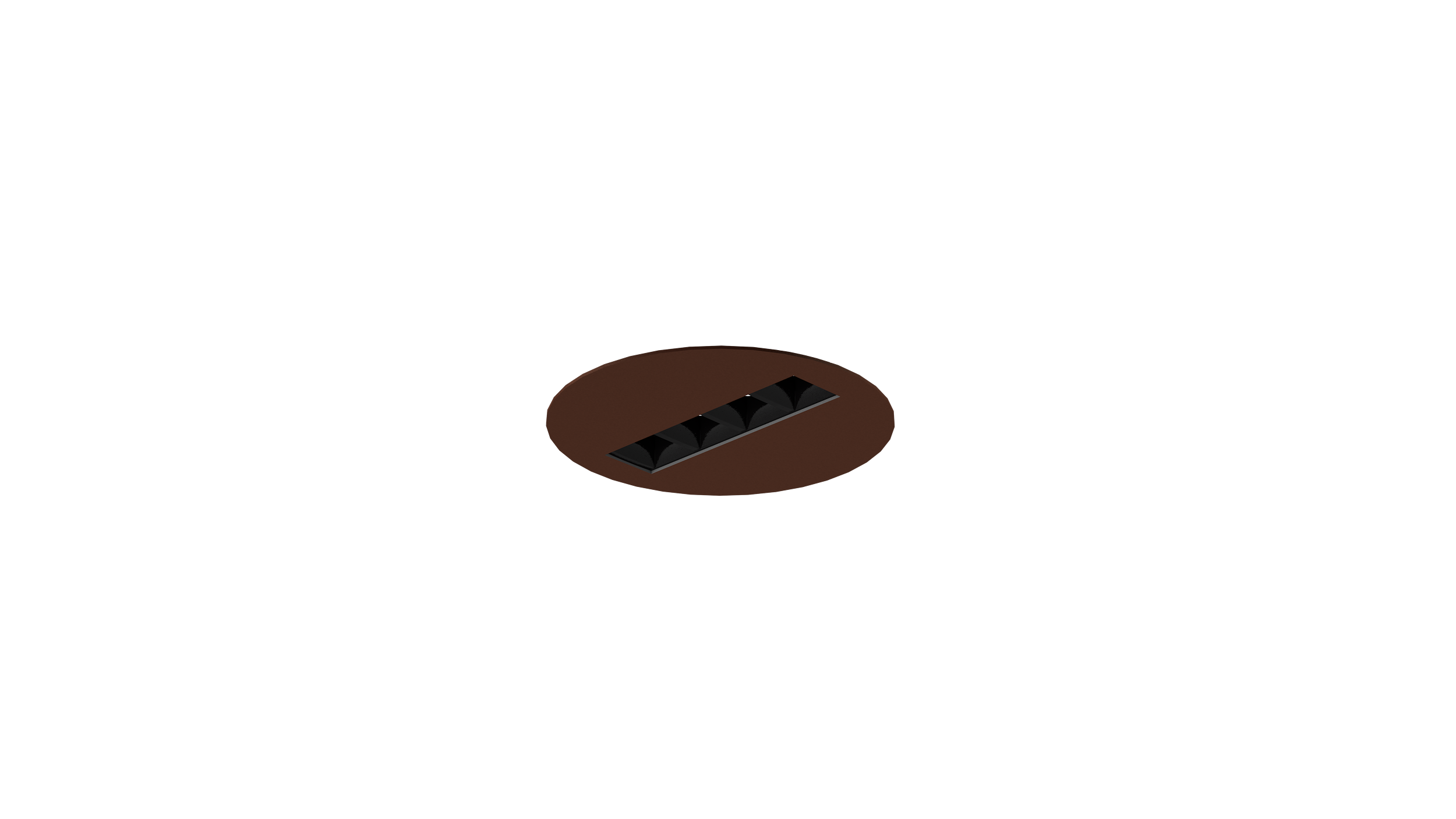

DLR 1xB
| TYPE | DIMENSIONS | LUMEN | CODE |
DLR 1XB 210 LED 4,4W 830 | Ø 210 x 35mm | 685 lm | 208-130WD-B-210/4,4 |
| DLR 1XB 210 LED 4,4W 840 | Ø 210 x 35mm | 728 lm | 208-140WD-B-210/4,4 |

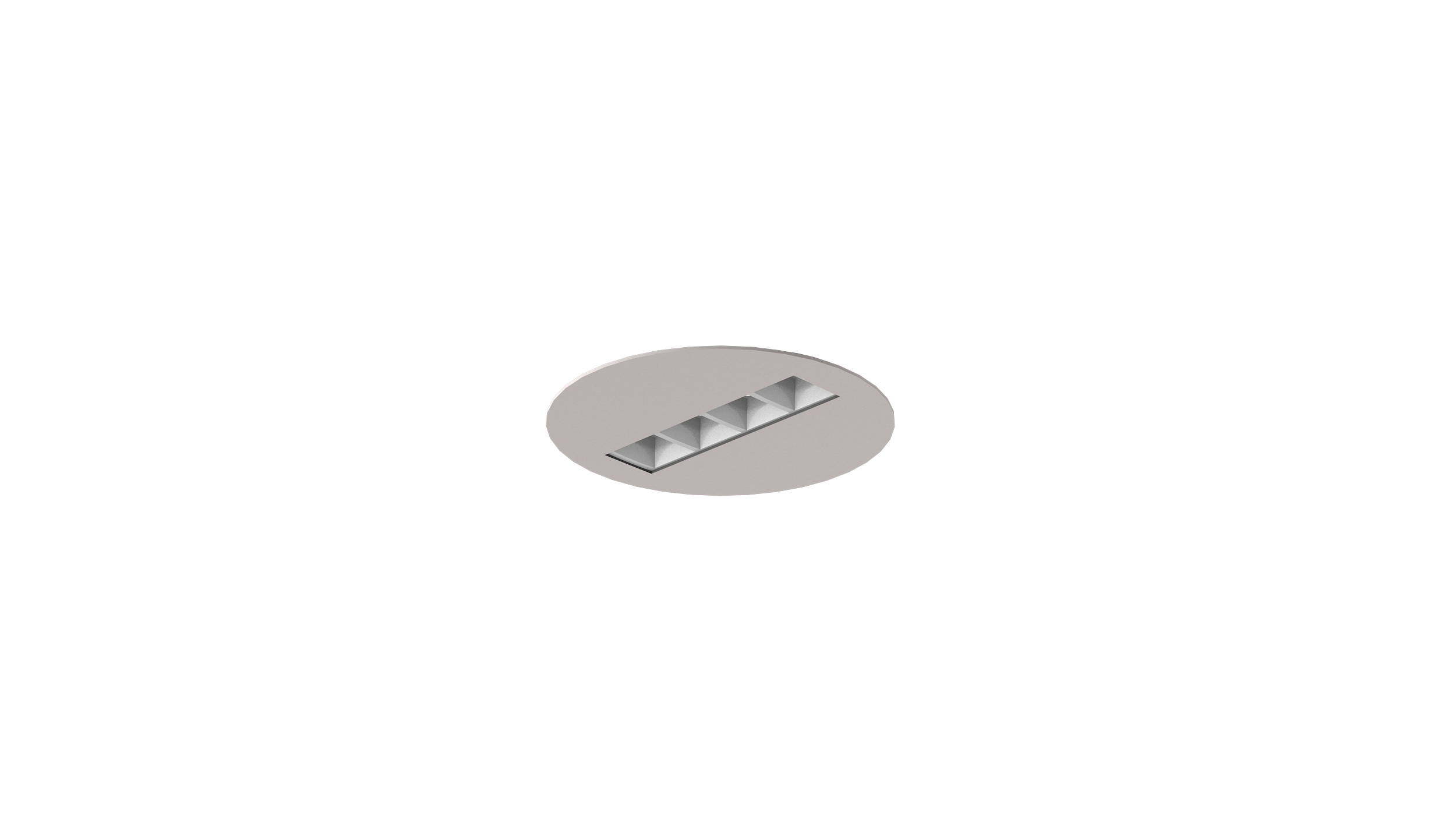

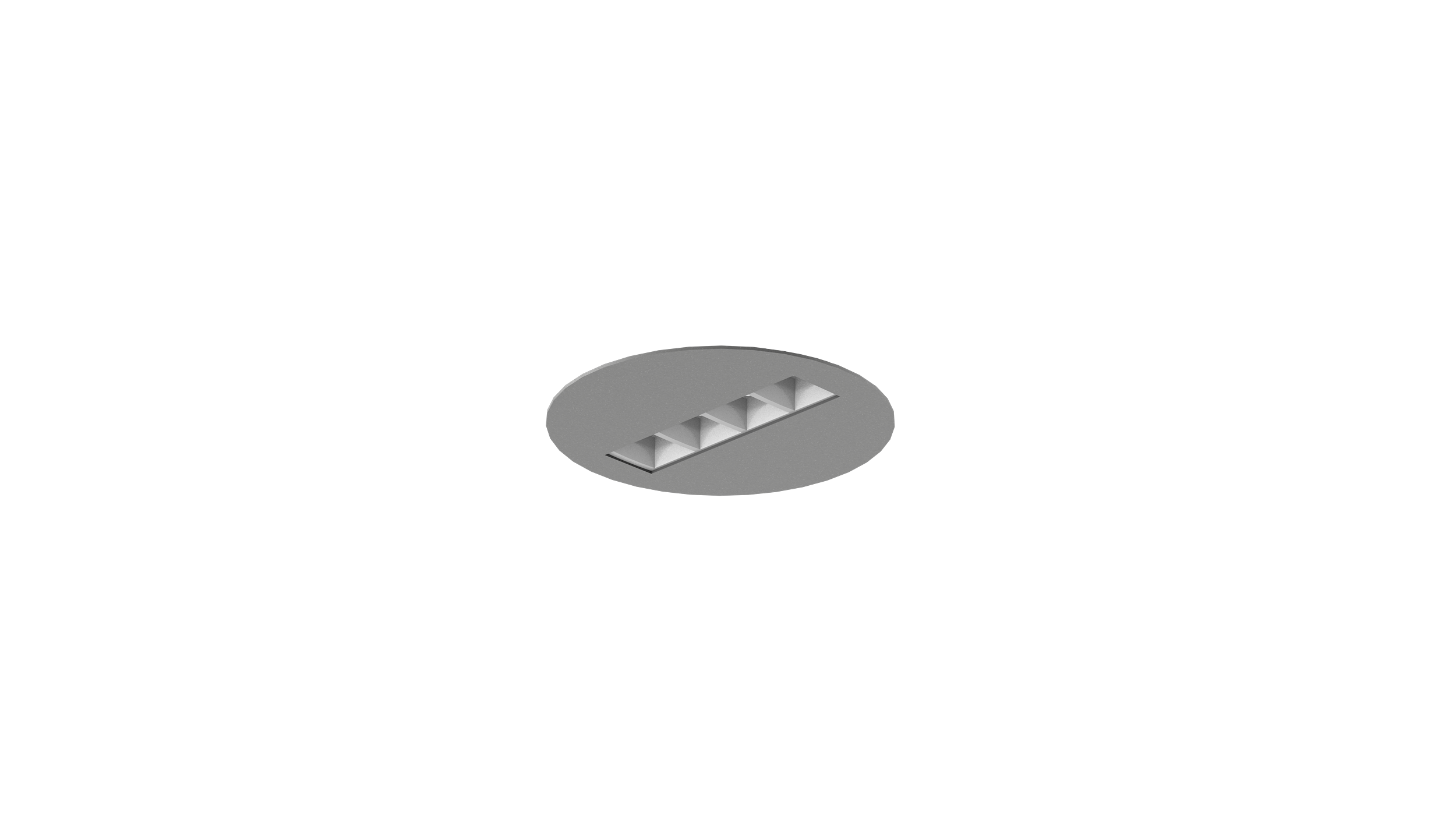

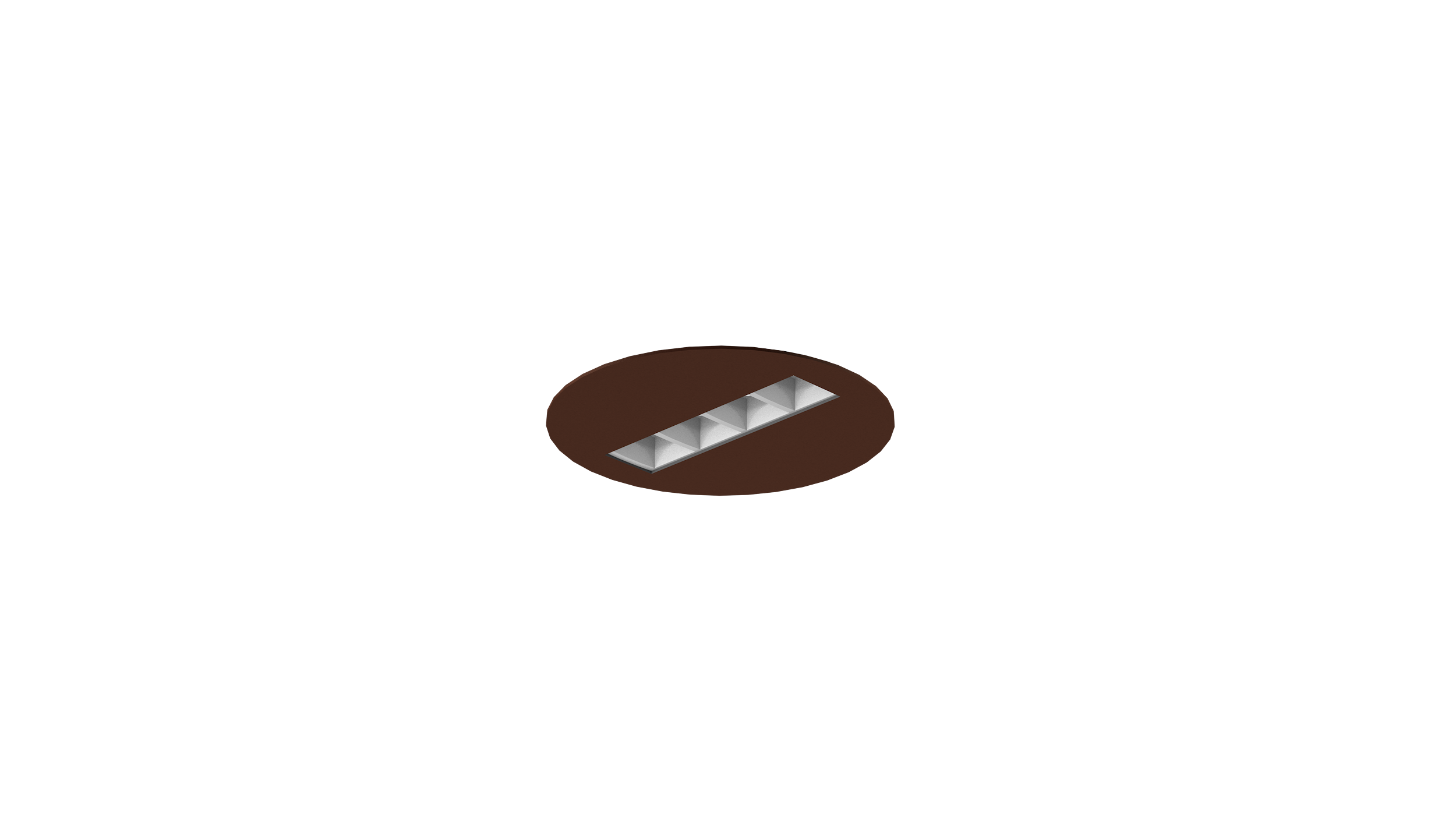

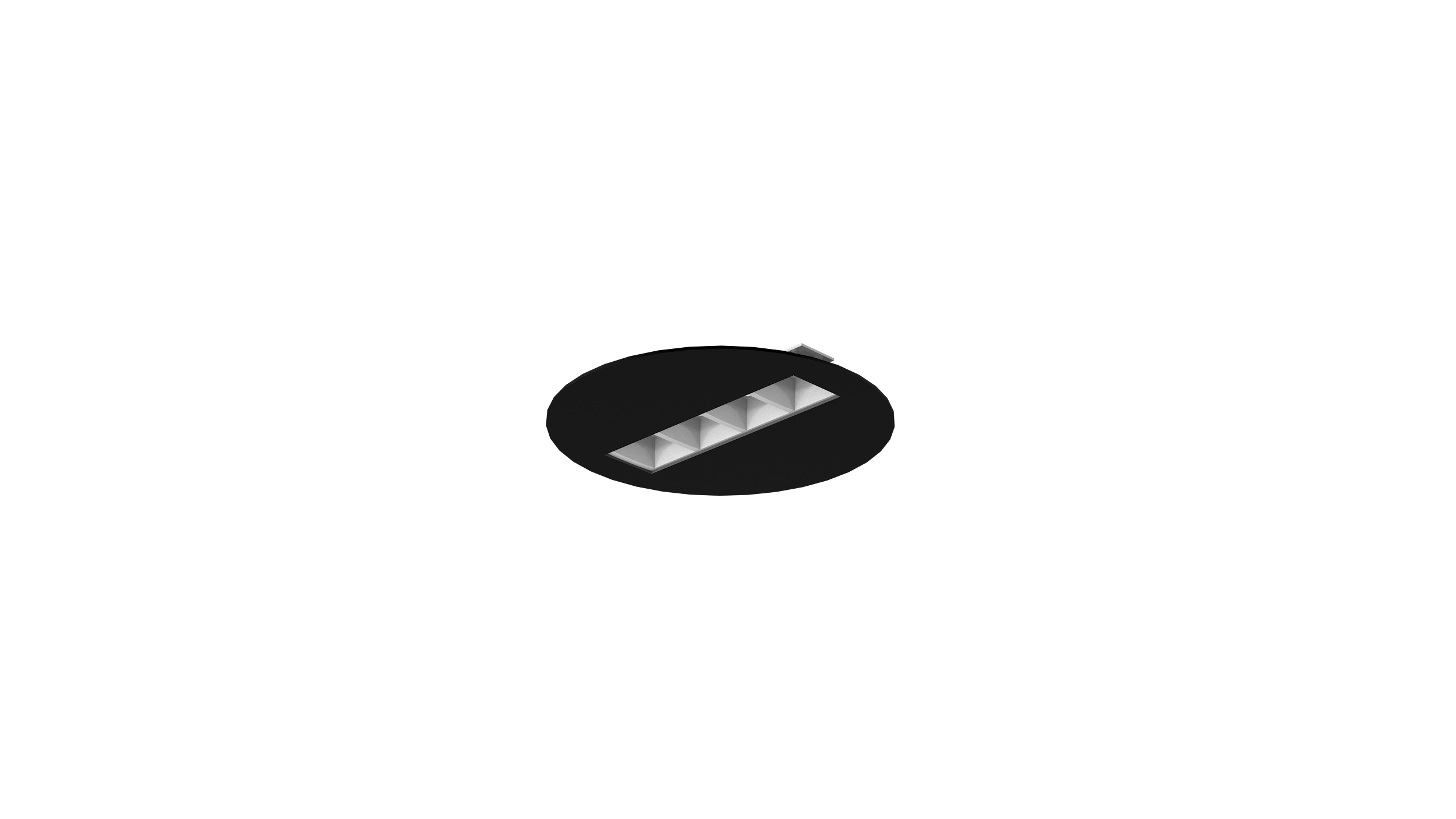

DLR 1xW
| TYPE | DIMENSIONS | LUMEN | CODE |
| DLR 1XW 210 LED 4,4W 830 | Ø 210 x 35mm | 759 lm | 208-130WD-W-210/4,4 |
| DLR 1XW 210 LED 4,4W 840 | Ø 210 x 35mm | 806 lm | 208-140WD-W-210/4,4 |

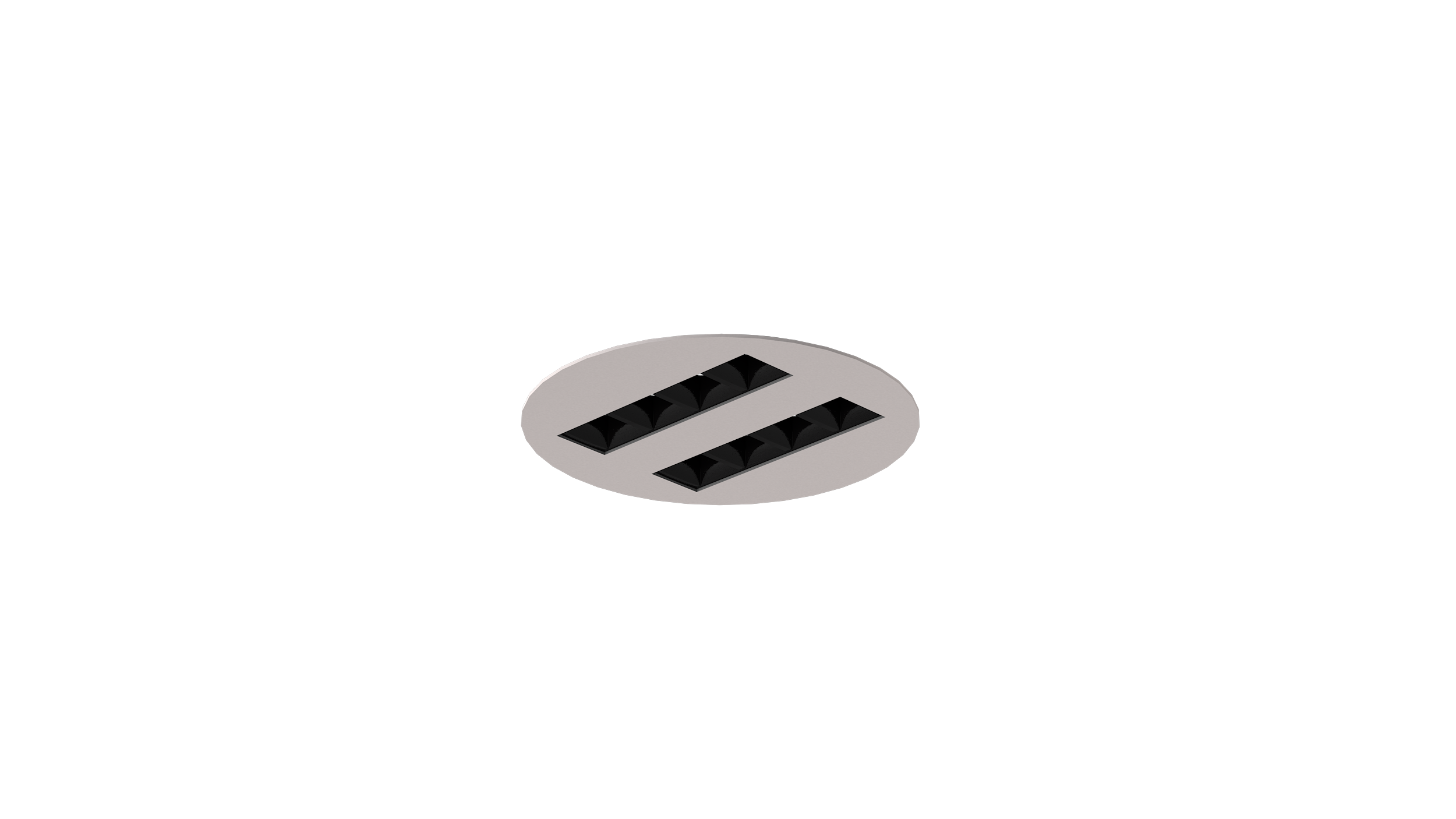

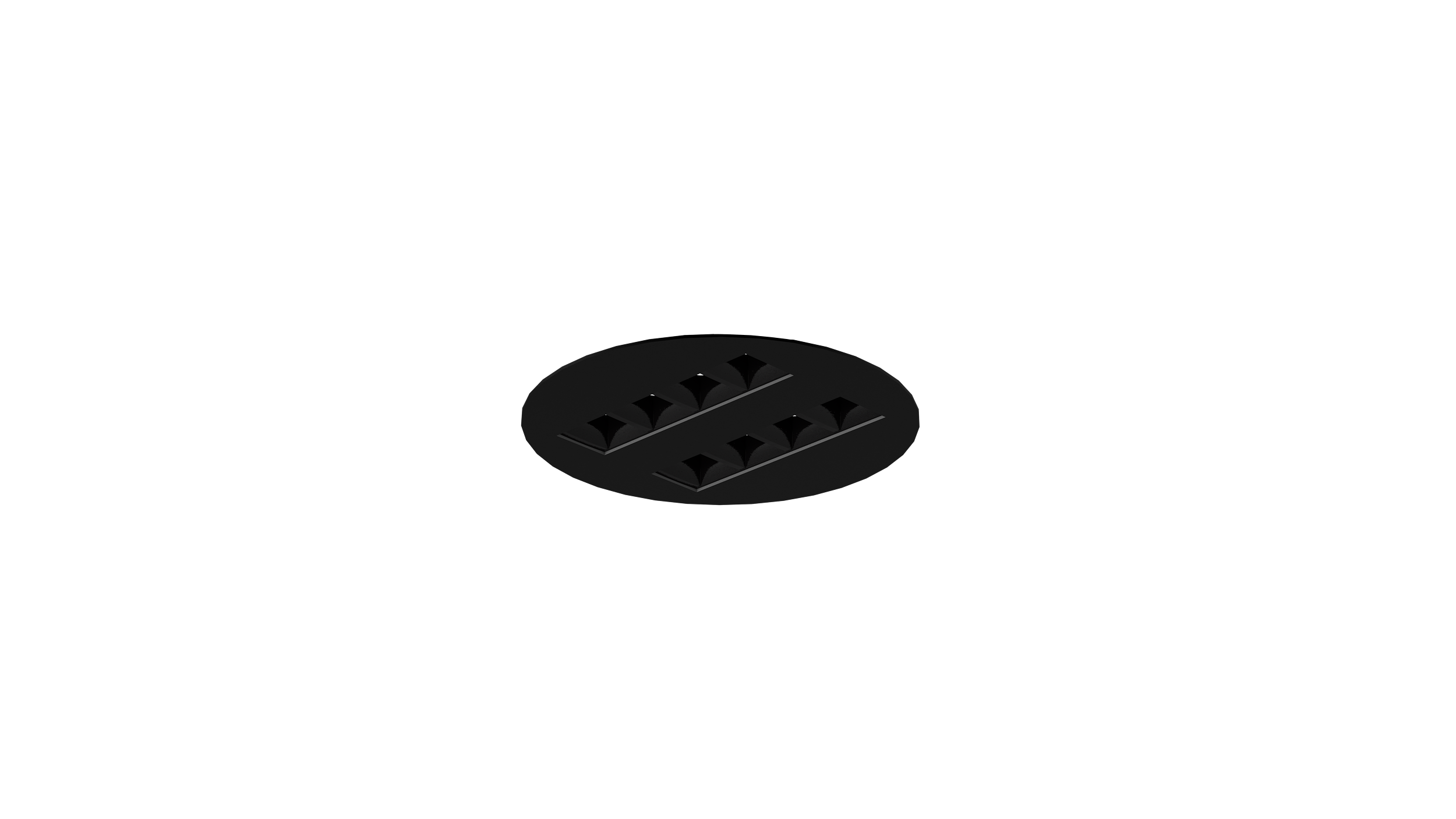

DLR 2xB
| TYPE | DIMENSIONS | LUMEN | CODE |
| DLR 2XB 240 LED 8,8W 830 | Ø 240 x 35mm | 1371 lm | 208-130WD-B-240/8,8 |
| DLR 2XB 240 LED 8,8W 840 | Ø 240 x 35mm | 1457 lm | 208-140WD-B-240/8,8 |

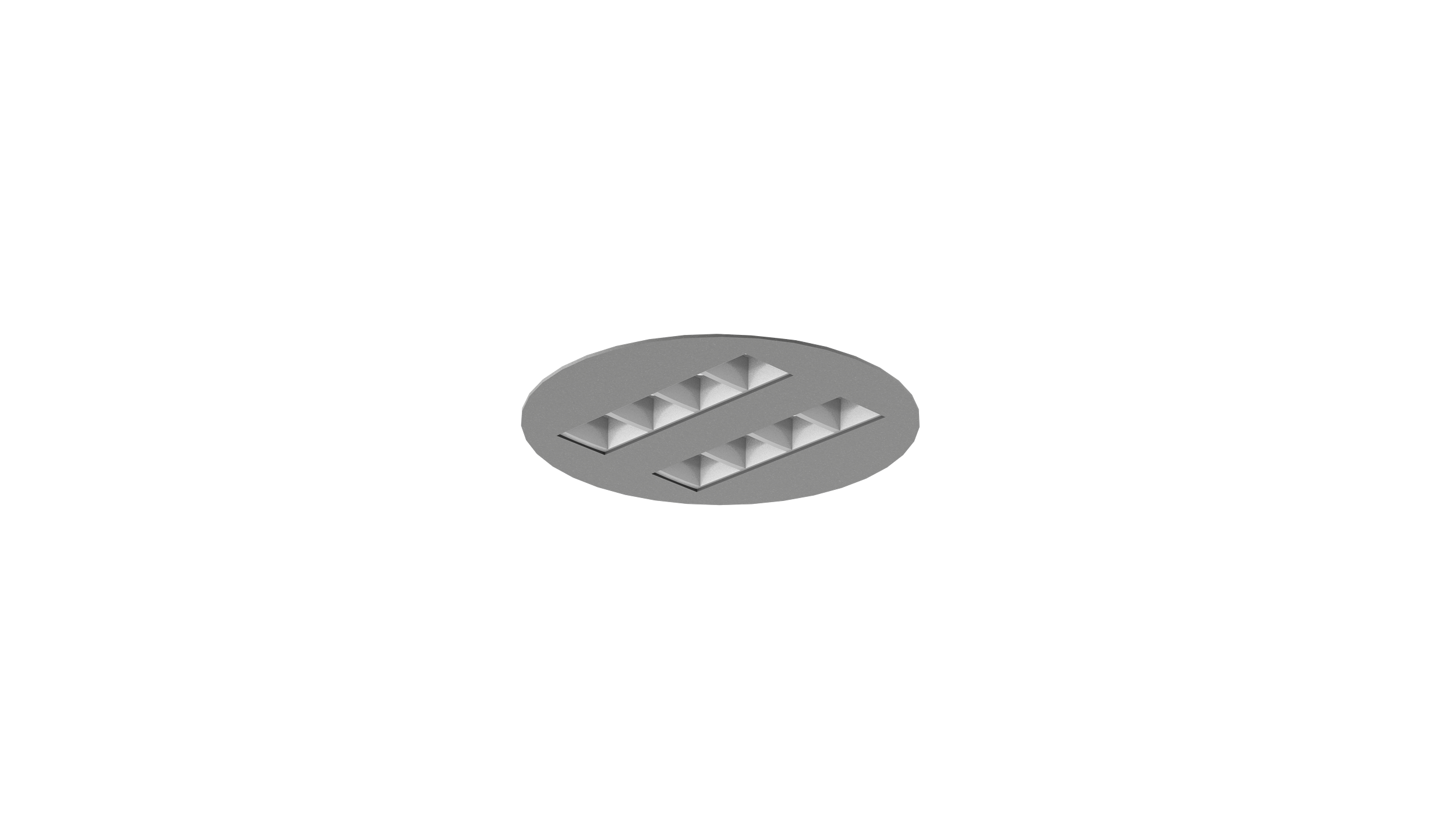

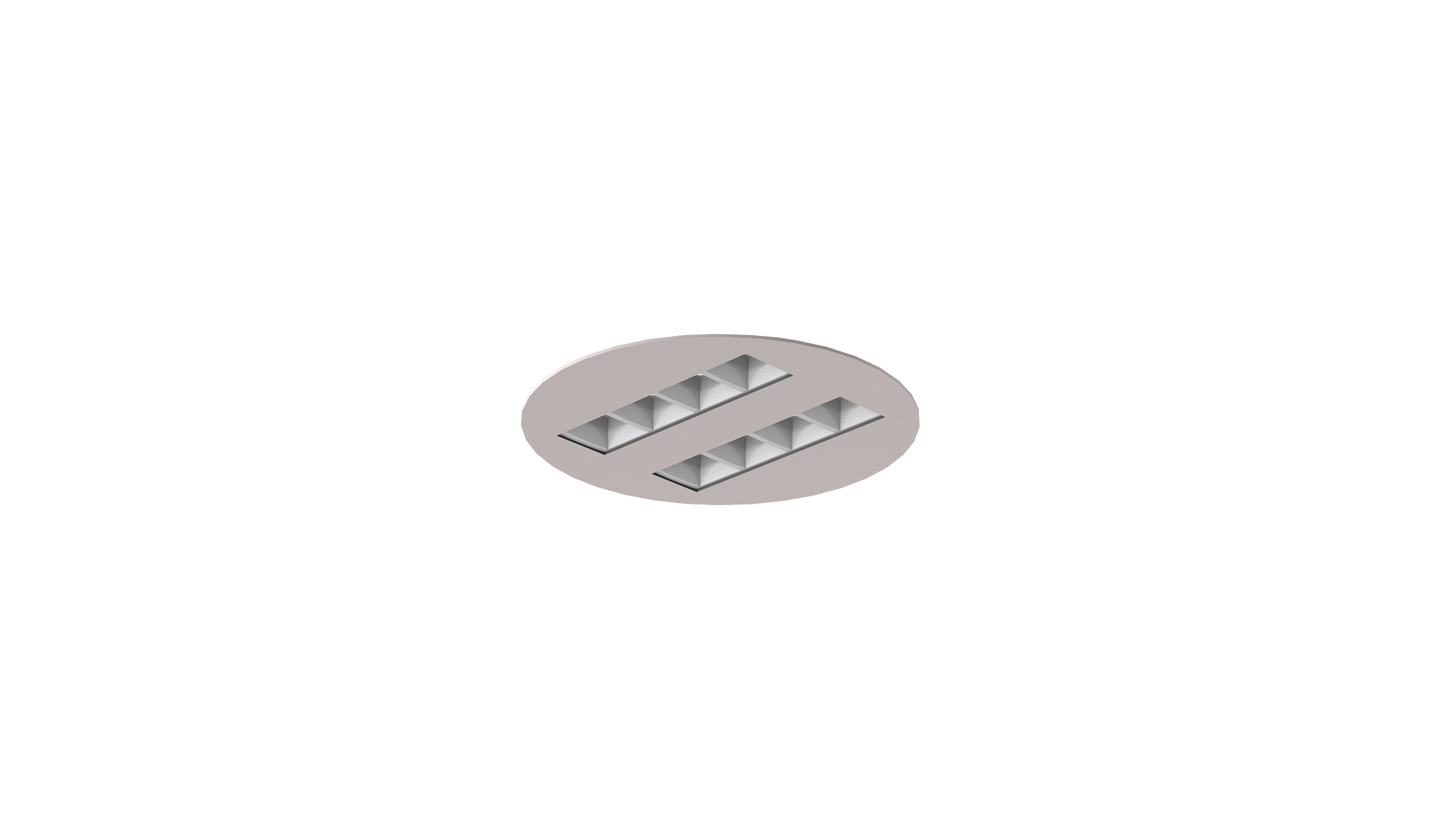

DLR 2xW
| TYPE | DIMENSIONS | LUMEN | CODE |
| DLR 2XW 240 LED 8,8W 830 | Ø 240 x 35mm | 1518 lm | 208-130WD-W-240/8,8 |
| DLR 2XW 240 LED 8,8W 840 | Ø 240 x 35mm | 1613 lm | 208-140WD-W-240/8,8 |

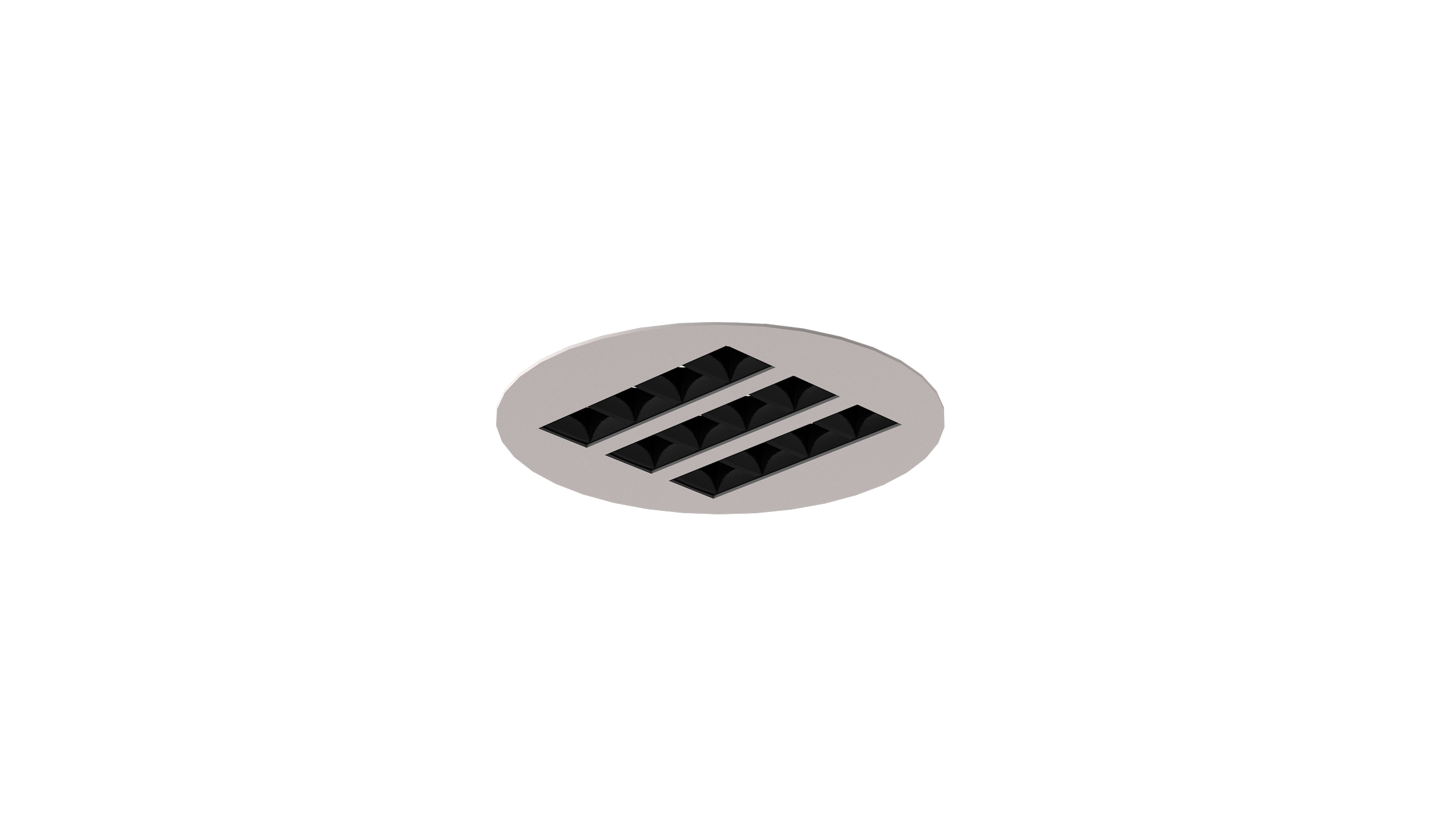

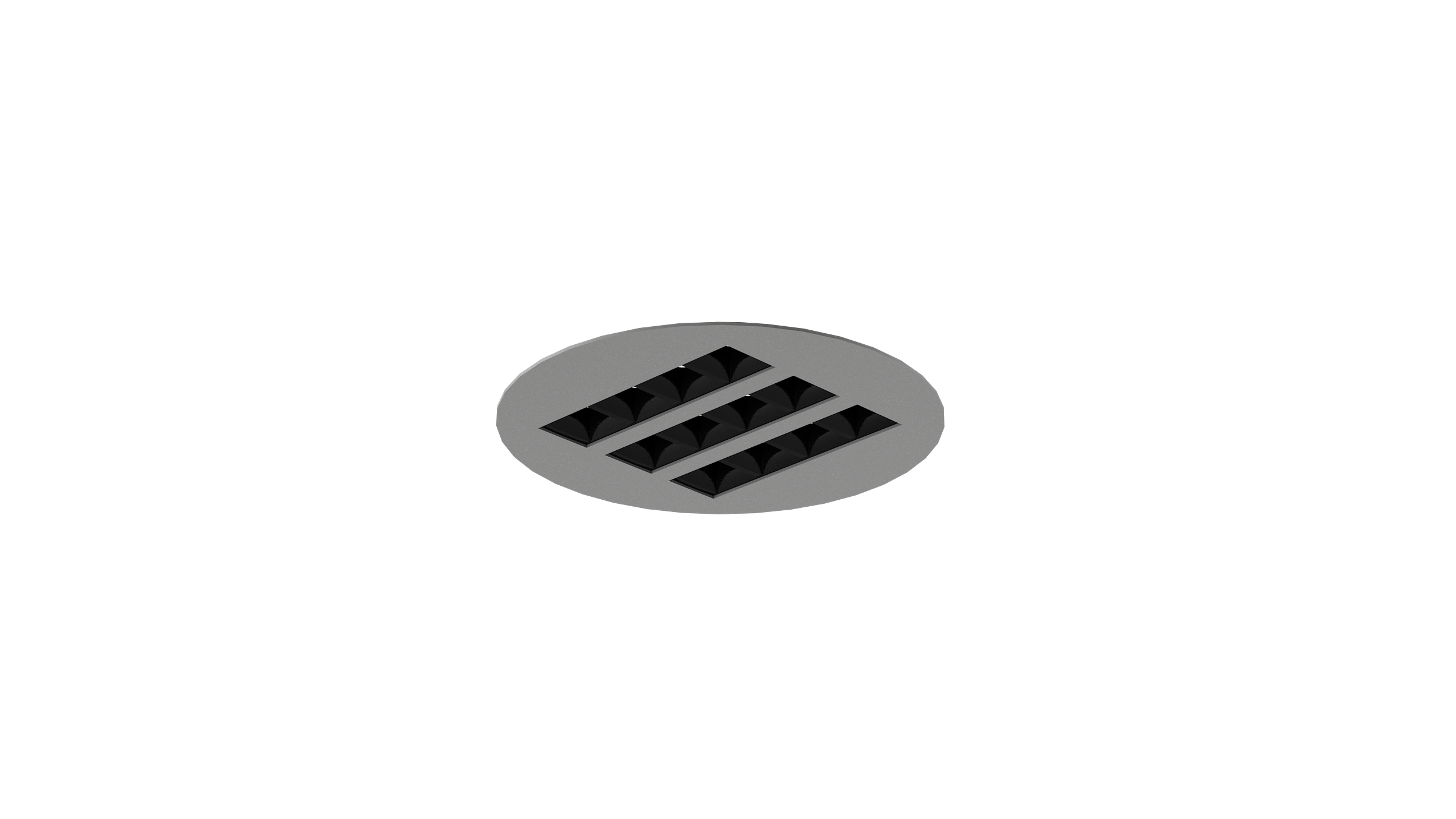

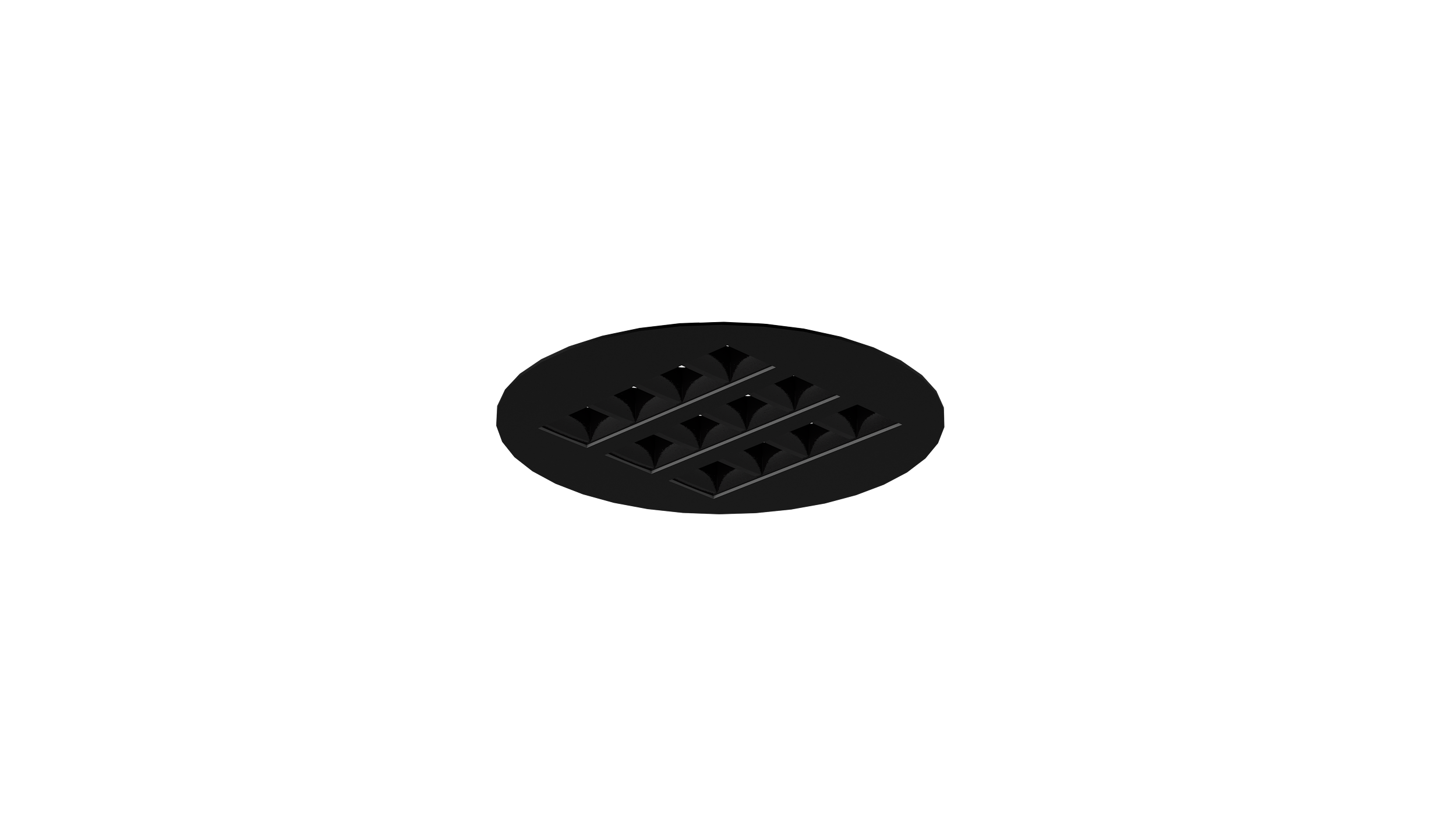

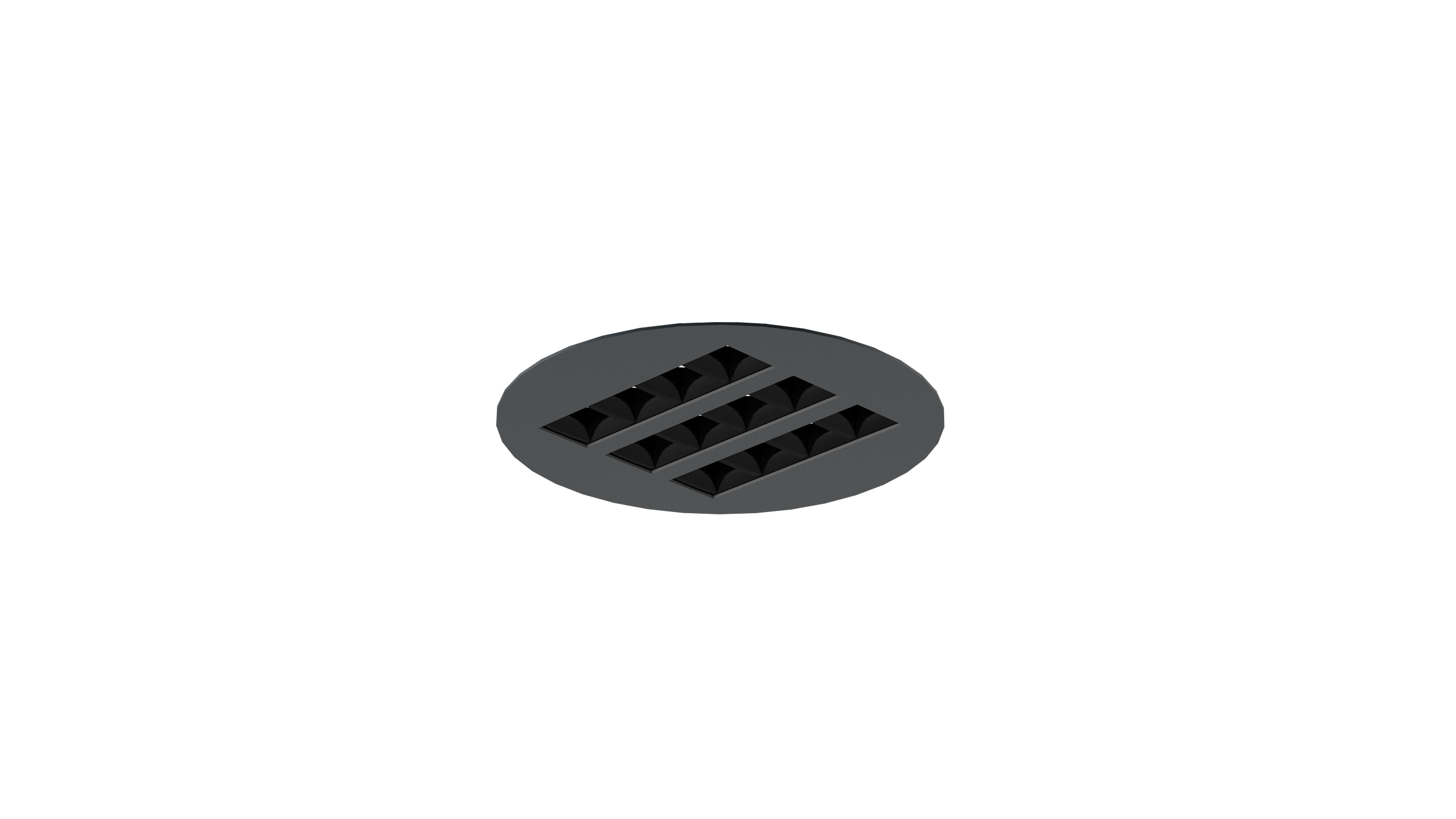

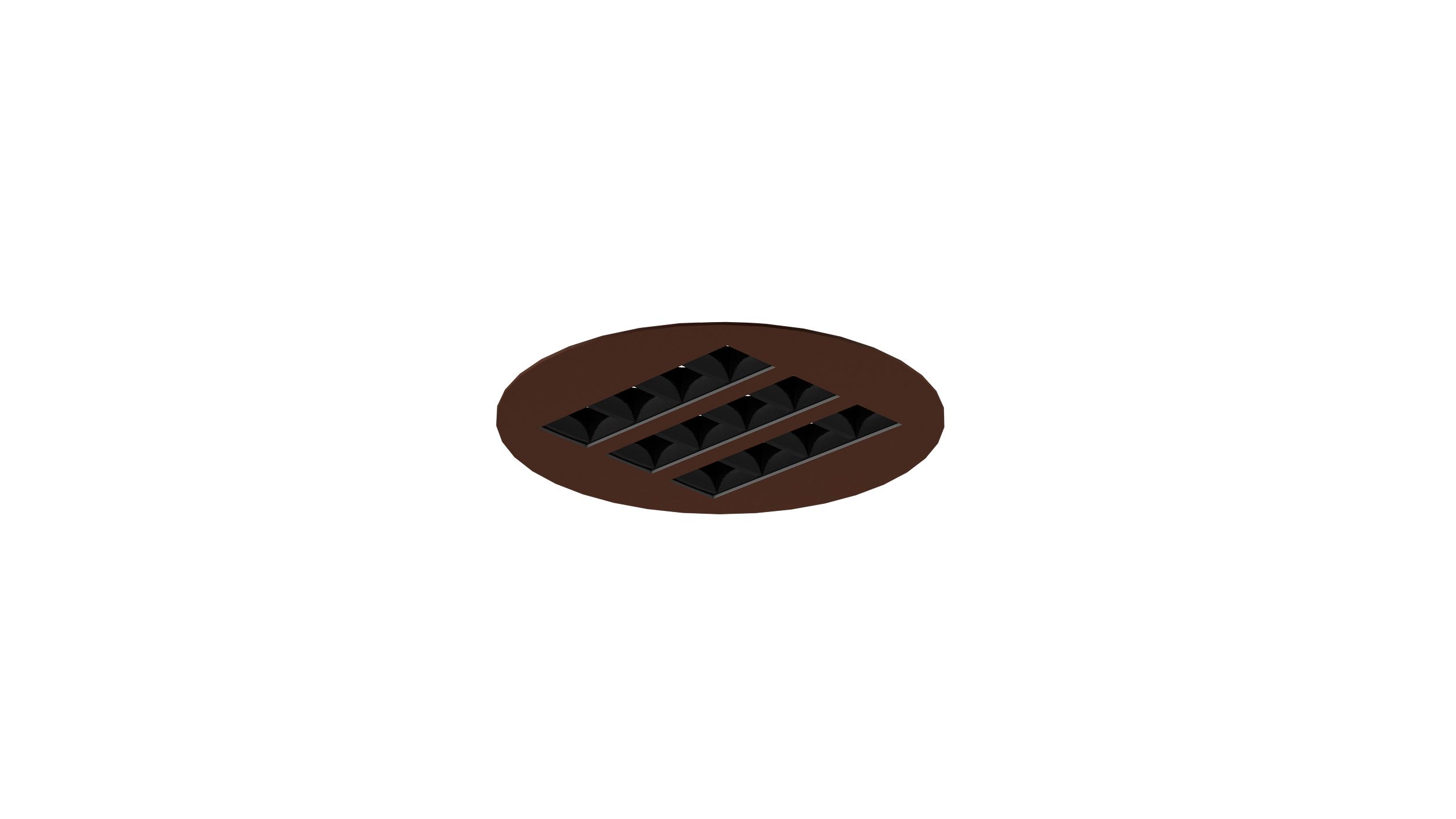

DLR 3xB
| TYPE | DIMENSIONS | LUMEN | CODE |
| DLR 3XB 270 LED 13,2W 830 | Ø 270 x 35mm | 2056 lm | 208-130WD-B-270/13,2 |
| DLR 3XB 270 LED 13,2W 840 | Ø 270 x 35mm | 2185 lm | 208-140WD-B-270/13,2 |

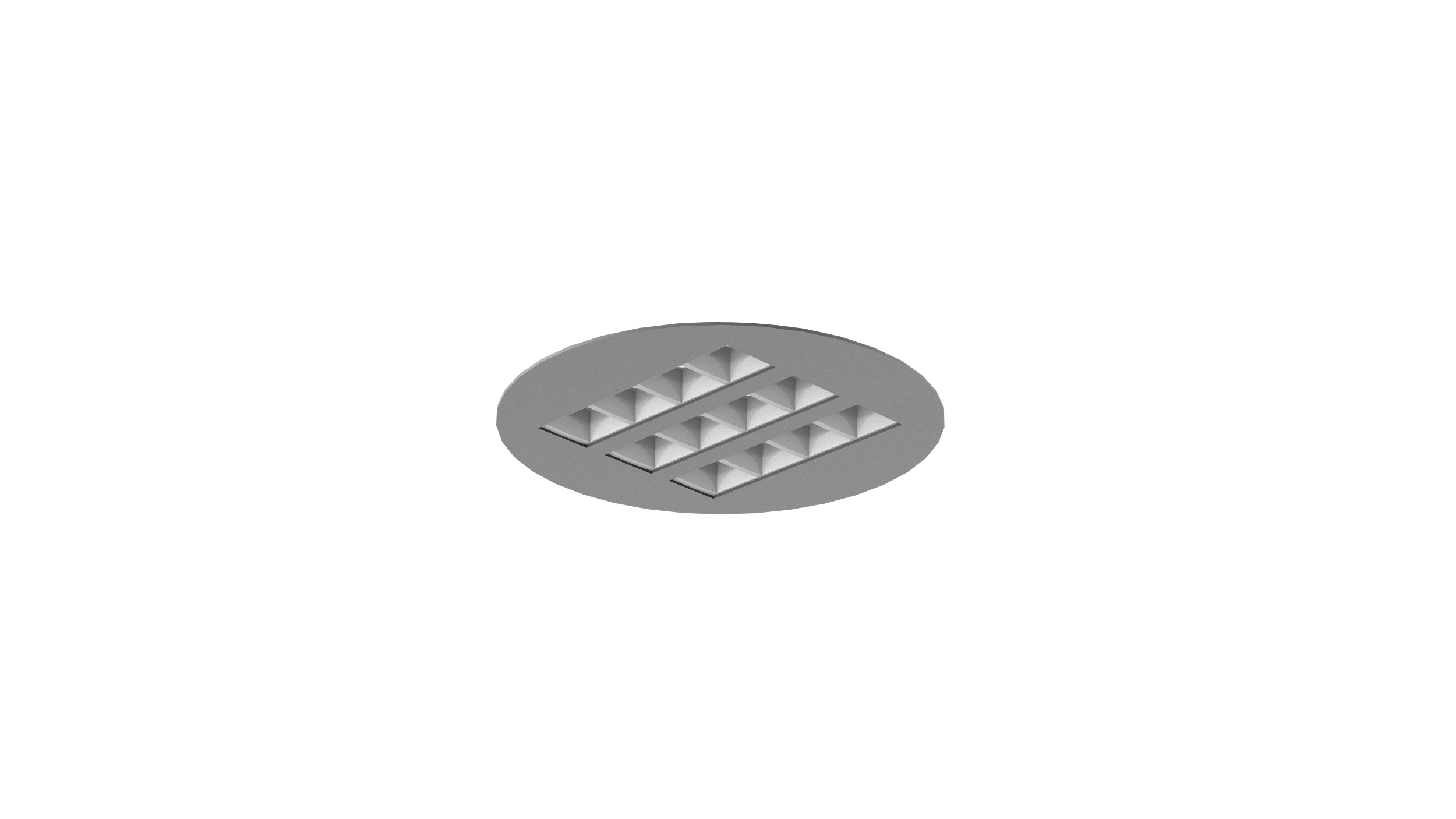

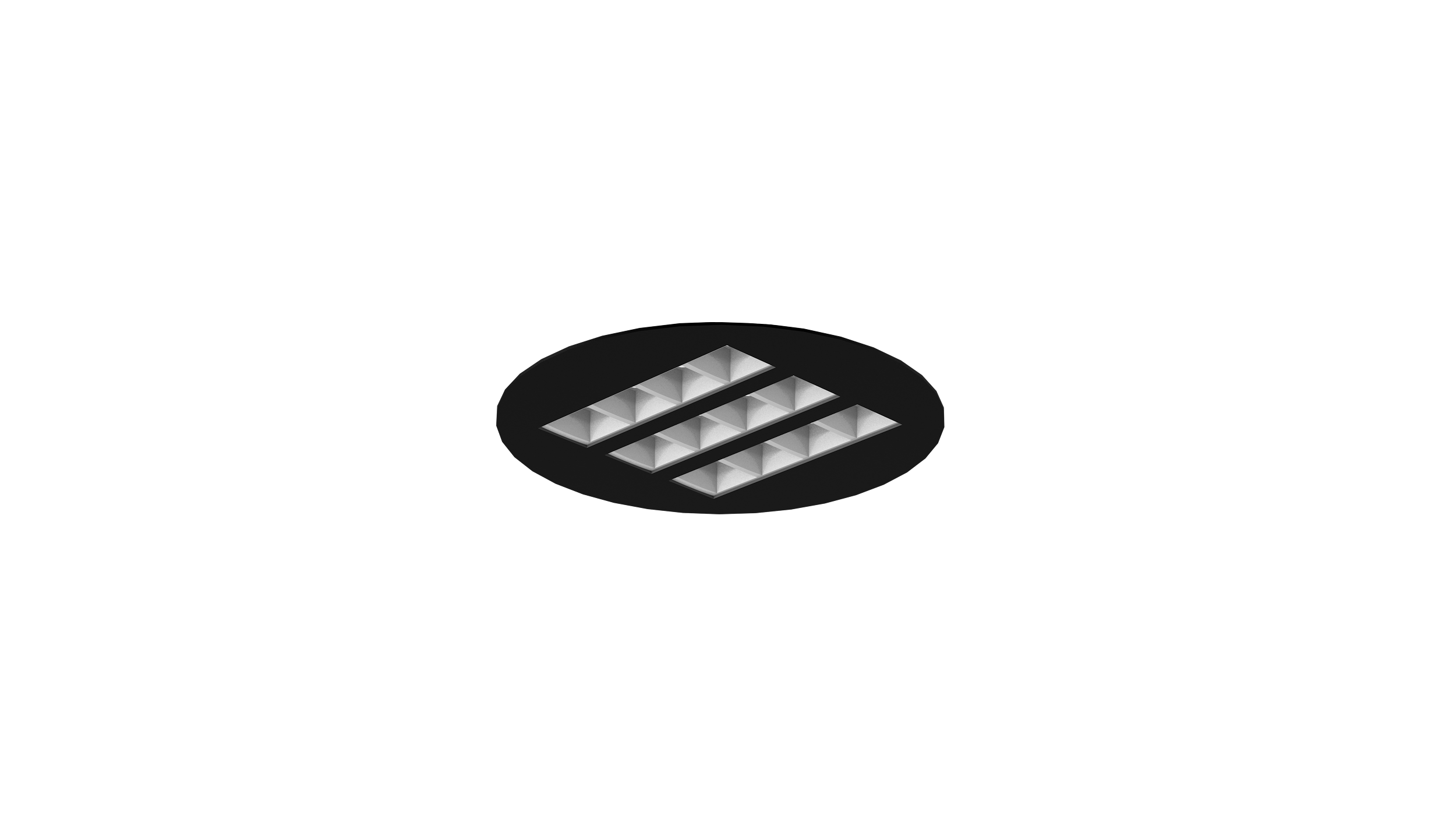

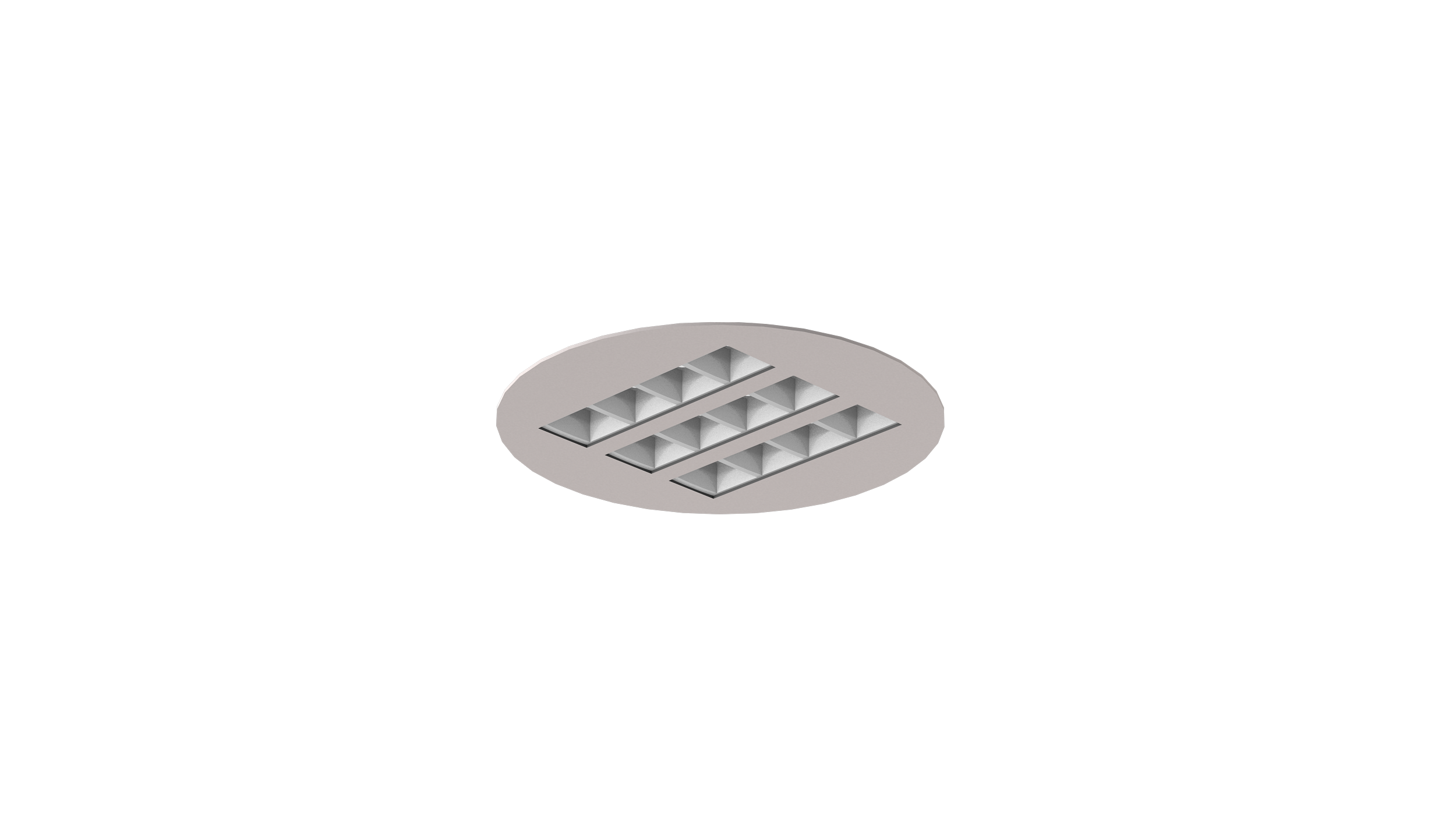

DLR 3xW
| TYPE | DIMENSIONS | LUMEN | CODE |
| DL 3XW 270 LED 13,2W 830 | Ø 270 x 35mm | 2277 lm | 208-130WD-W-270/13,2 |
| DL 3XW 270 LED 13,2W 840 | Ø 270 x 35mm | 2419 lm | 208-140WD-W-270/13,2 |

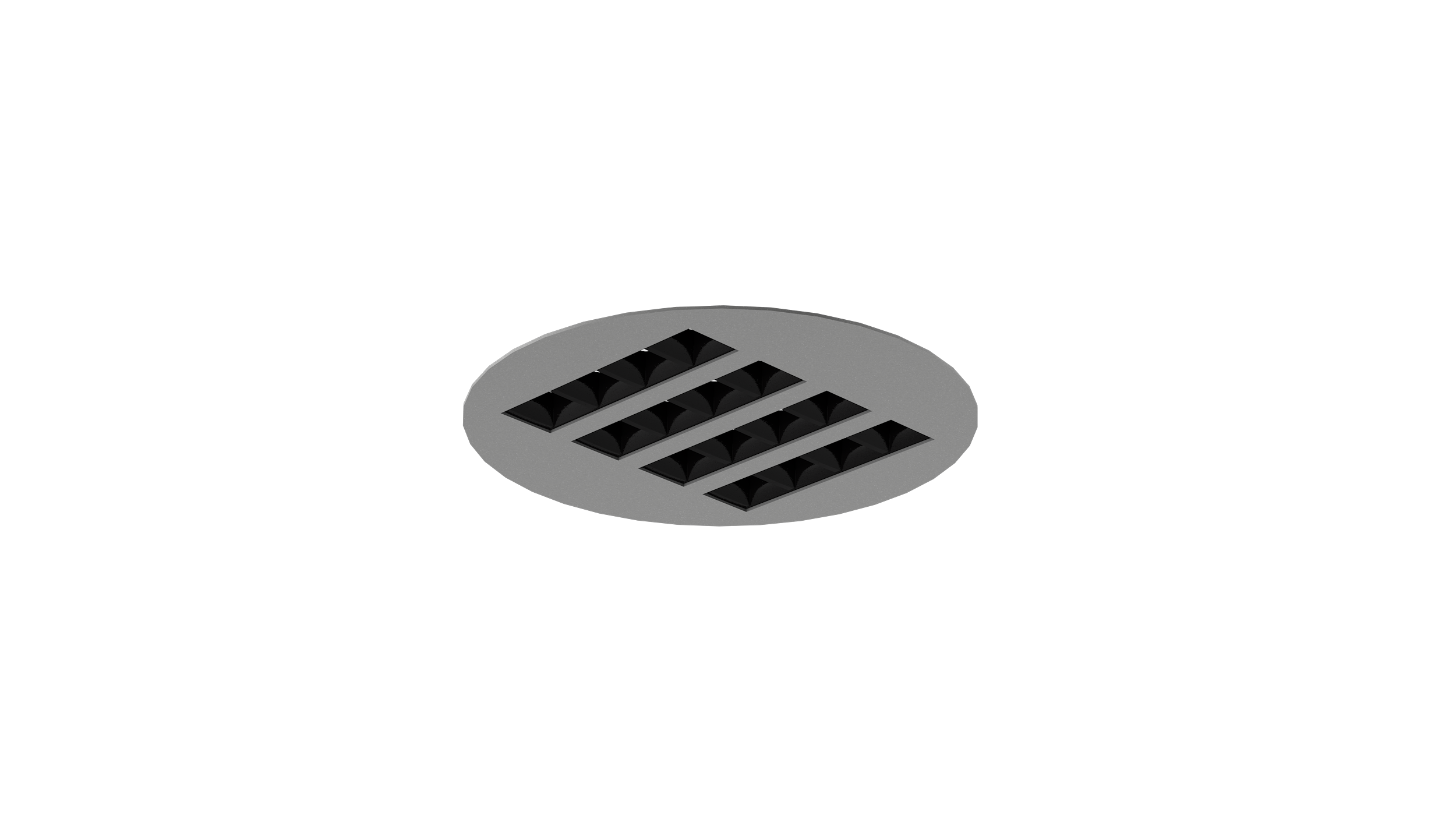

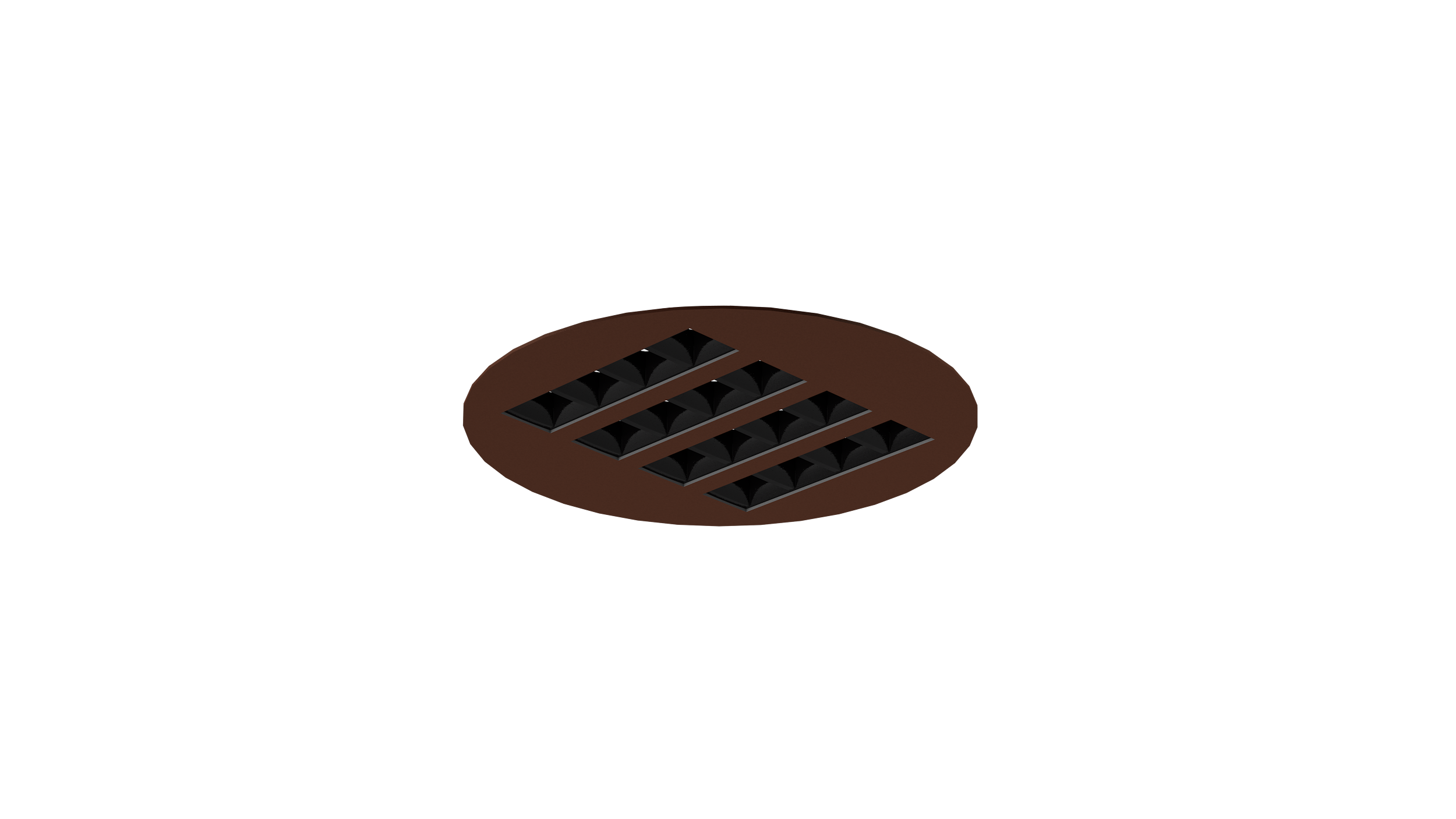

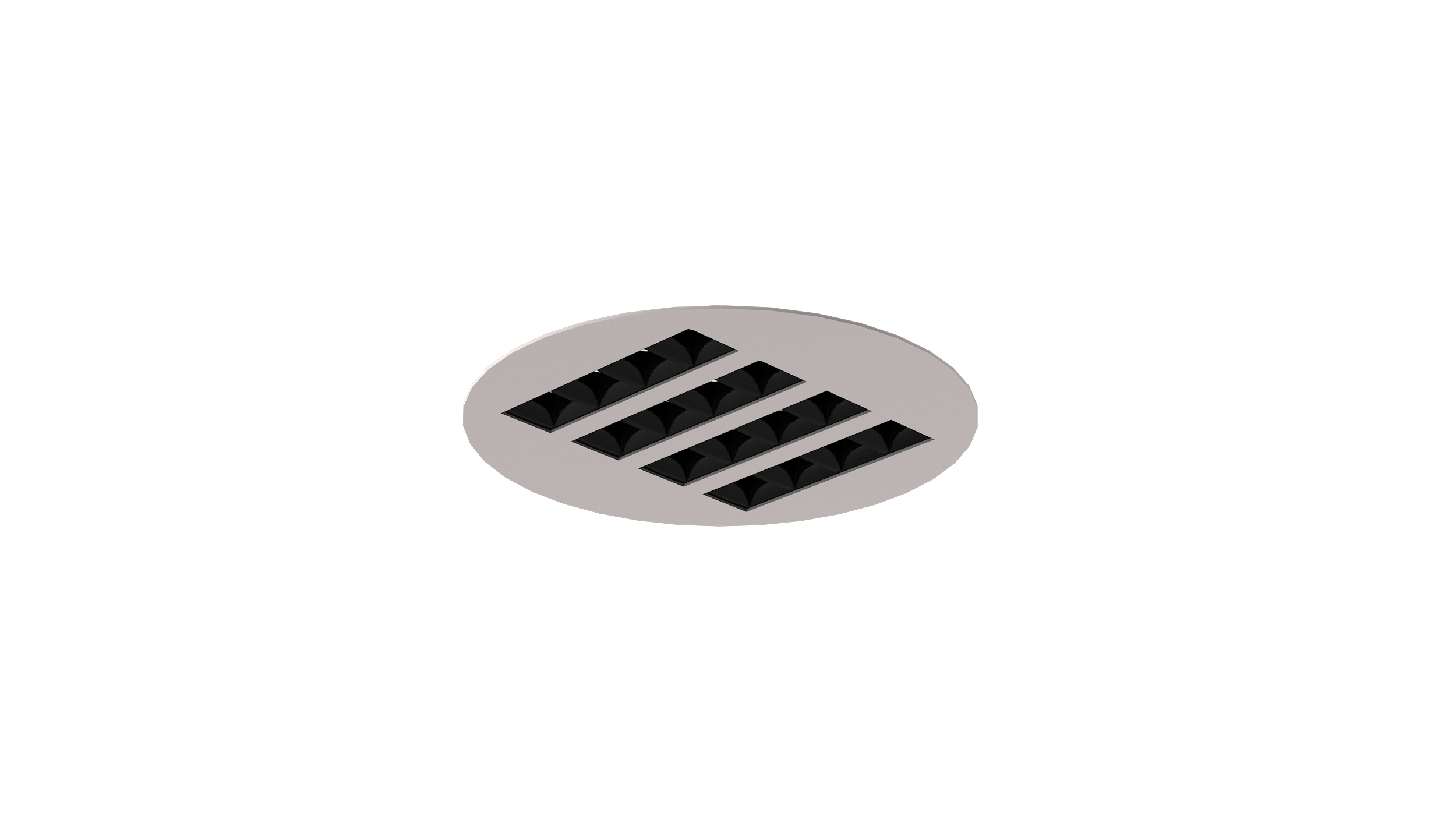

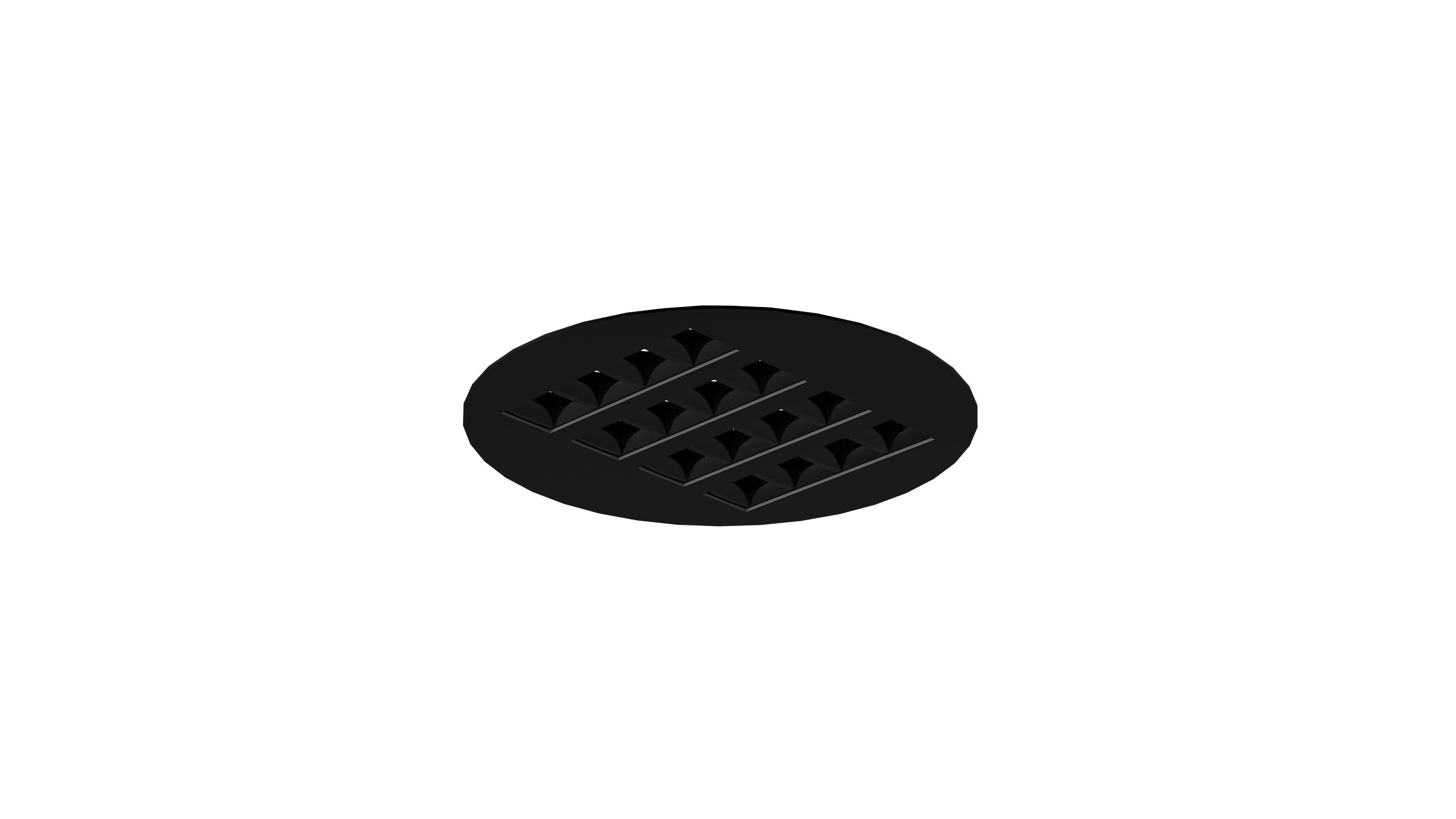

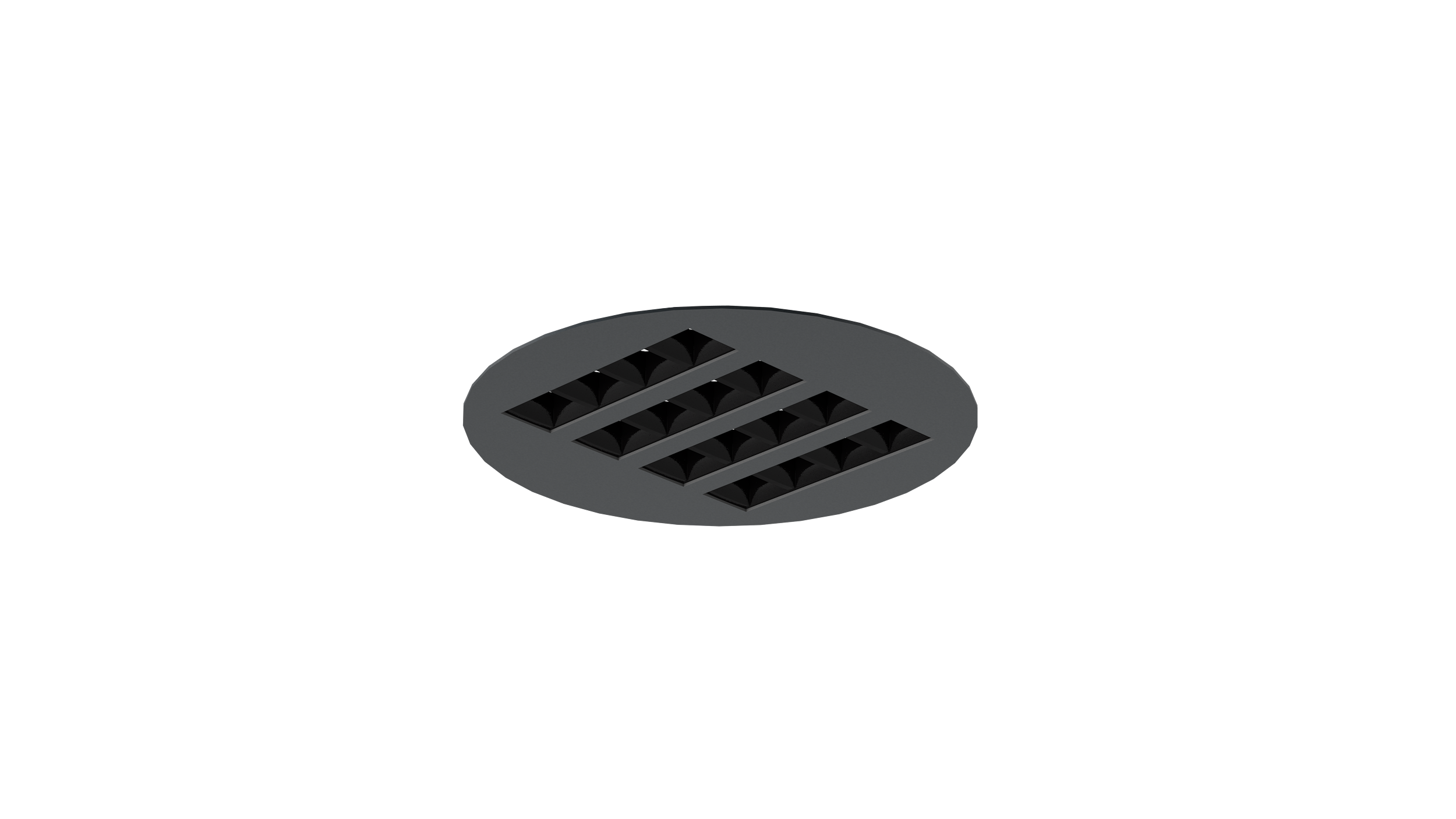

DLR 4xB
| TYPE | DIMENSIONS | LUMEN | CODE |
| DLR 4XB 310 LED 17,6W 830 | Ø 310 x 35mm | 2742 lm | 208-130WD-B-310/17,6 |
| DLR 4XB 310 LED 17,6W 840 | Ø 310 x 35mm | 2913 lm | 208-140WD-B-310/17,6 |

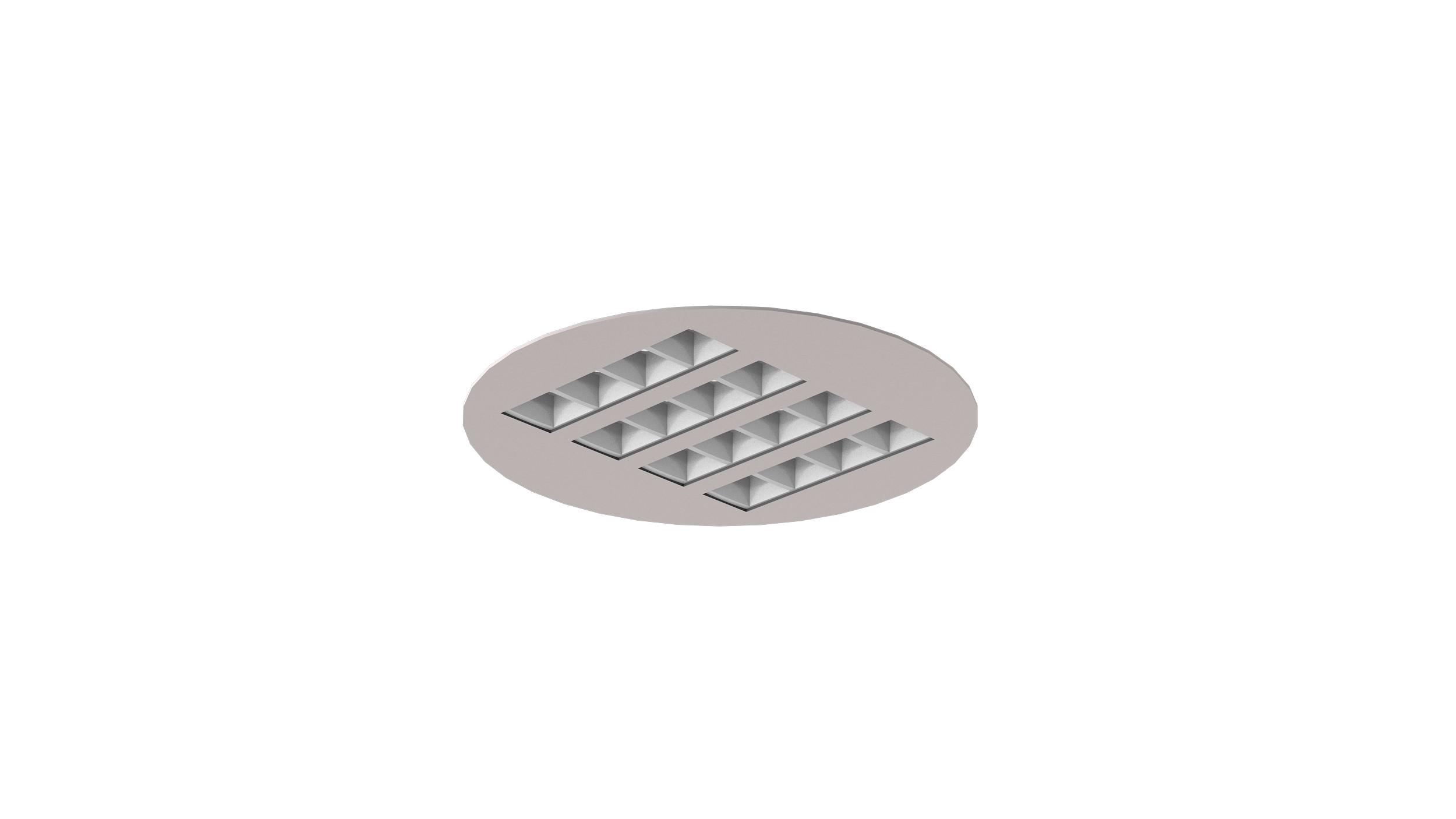

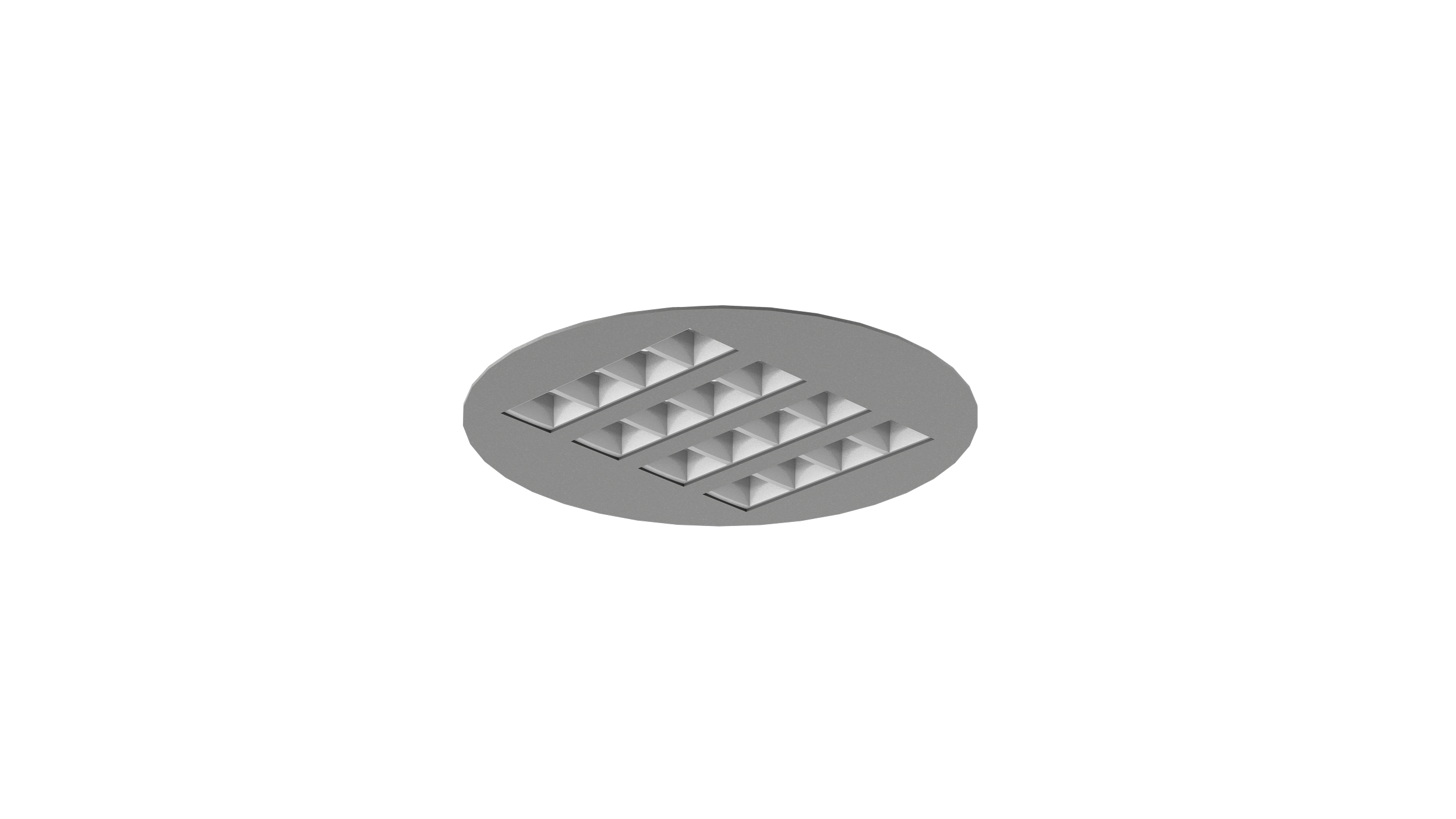

DLR 4xW
| TYPE | DIMENSIONS | LUMEN | CODE |
| DLR 4XB 310 LED 17,6W 830 | Ø 310 x 35mm | 3036 lm | 208-130WD-W-310/17,6 |
| DLR 4XB 310 LED 17,6W 840 | Ø 310 x 35mm | 3225 lm | 208-140WD-W-310/17,6 |
